Product Highlights
- Type: Static Mixer
- Brand: Nordson EFD
- Connection Type: Bell
- Tip Style: Stepped Tip
- Adhesive Ratio: 1:1, 2:1
- Cartridge Size: Meter Mix Machine, 200 ml, 400 ml, 600 ml
- Viscosity: Gel

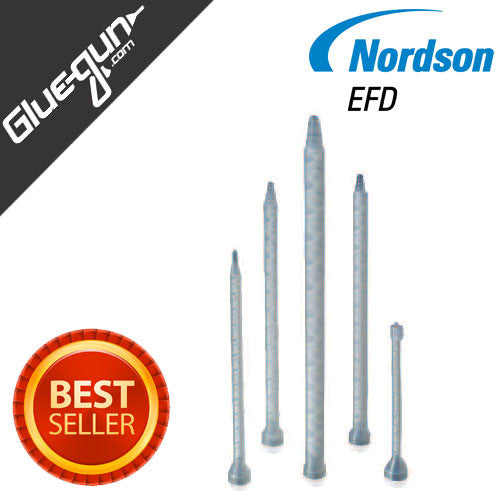

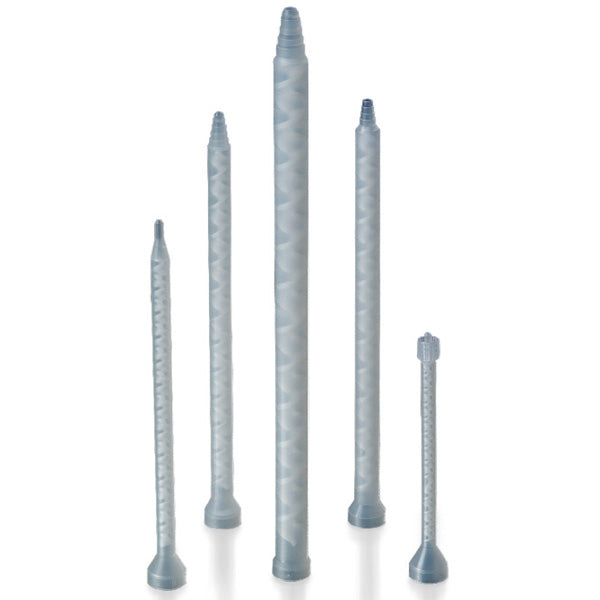

Nordson 7701038 (TAH 161-236) Static Mixing Nozzle Overview
The Nordson TAH 161-236 (new part # 7701038) static mixing nozzle has 36 mixing elements and a 12.65 mm element diameter (.497 in). This mixer has a stepped tip making it easy for users to adjust bead size by simply cutting off the end of the tip.
The 160 static mixing nozzle is unique in that materials do not meet in the manifold before the mixer, eliminating the problem of manifold plugging and cleaning. Instead, the 161-236 mixer has valve manifolds that separately port the A and B materials directly into the mixer making the cleanup process a simple nozzle removal and manifold wipe.
Gluegun.com offers a low price guarantee on the Nordson TAH 161-236 static mixer. Contact us with questions regarding the Nordson TAH line of static mixing nozzles or help choosing the best product for your application.
Features and Benefits
- Bell Inlet Design: Specifically engineered to fit Nordson TAH Valve manifolds and large volume cartridges, ensuring seamless integration with dispensing systems.
- Direct Material Porting: Separately ports A and B materials directly into the mixer, promoting consistent and accurate mixing of components.
- Easy Cleanup: Cleanup is simplified by easily removing the mixer and wiping the manifold face clean, reducing downtime and maintenance efforts.
- Divider Fin Compatibility: Designed for use with cartridges that feature a divider fin, allowing for quick mixer removal without additional cleanup.
- High-Pressure Capability: The nozzle can be used with a metal jacket for applications where the working pressure exceeds 150 psi (10 bar), providing added durability and safety.
Specifications
- Series: Nordson TAH 161-236
- New Part Number: 7701038
- Type: Disposable Plastic Spiral Bell Mixer
- Works with Standard Cartridges (Bellmouth Connection)
- Bell Connector
- 36 Mixing Elements (12.65 mm)
- Stepped Tip
- Elements: Acetal
- Housing: Polypropylene
Nordson TAH 161-236 Accessories
Questions about Nordson 7701038? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
Authorized Nordson EFD Supplier
Guaranteed Safe Checkout
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Compare with Similar Products
|
|
|
|
|---|---|---|
| Price | $$$$ | $$$$ |
| Type | Static Mixer | Static Mixer |
| Brand | Nordson EFD | Infinity Bond |
| Connection Type | Bell | Bell |
| Adhesive Ratio | 1:1 2:1 | 1:1 2:1 |
| Elements | 36 | 36 |
| Tip Style | Stepped Tip | Stepped Tip |
| Cartridge Size | Meter Mix Machine 200 ml 400 ml 600 ml | 200 ml 400 ml 600 ml Meter Mix Machine |
