Astro Packaging SS10 Bulk Hot Melt System

Product Highlights

Brand:
  • Astro Packaging
Product:
  • Bulk Hot Melt System
SKU: 99670
$4,357.00

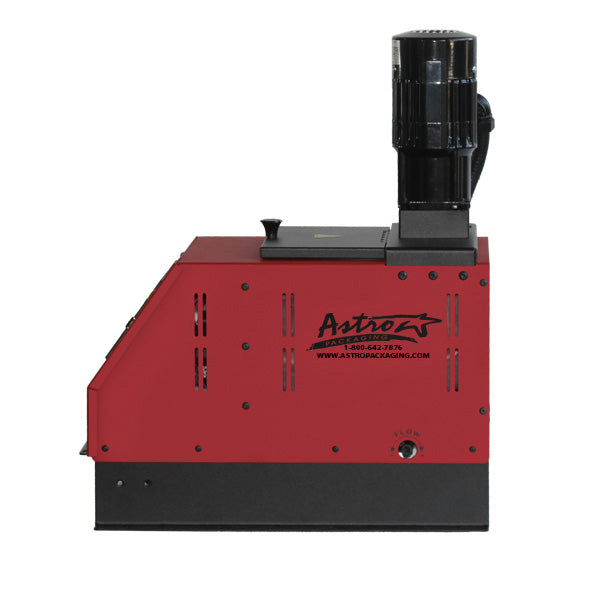

About the Astro Packaging SS10 Bulk Hot Melt Dispensing System

The SS10 Hot Melt System has a constant speed direct drive motor/pump combination. This 10 pound bulk melt tank is extremely reliable and features a cylindrical Teflon lined tank design. The cylindrical tank virtually eliminate any possibility of char build up with a integrated fin design to ensure constant pump rates.

The SS10 hot melt system features a easy to use TC500 temperature controller and is capable of 2 hoses and 2 applicators. The SS10 bulk tank warms up in 30-45 minutes and has the melt rate of 8 pounds per hour

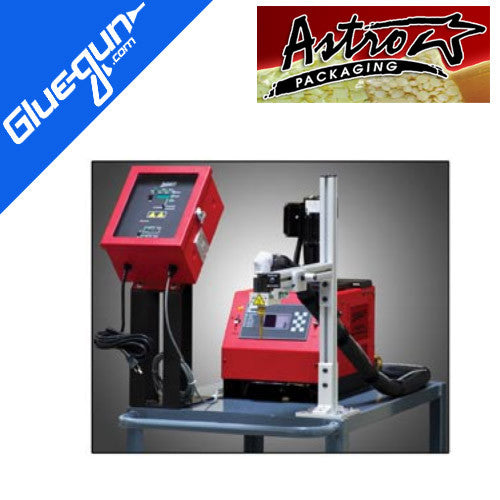

Astro Packaging SS10 Hot Melt System Includes:

  • SS10 10 Pound Hot Melt Tank
  • 6', 8' or 12' Hose

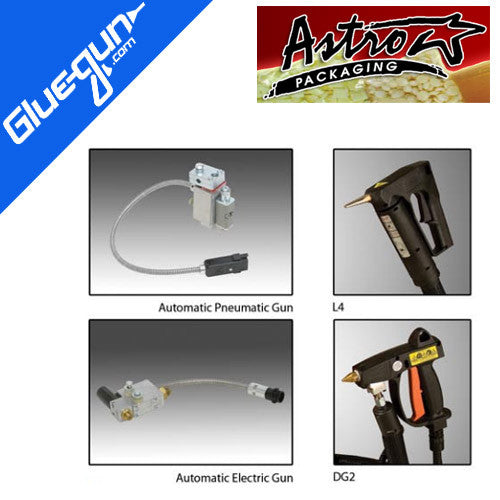

  • DG2 Handgun, L4 Handgun or EX100XT Automatic Applicator
**Please note that we can create a custom system for your needs.  Give us a call at (855)437-7700 or contact us with additional questions or for a quote!

SS10 Hot Melt System Features:

  • Supports 1 or 2 hoses and guns
  • Handguns can be bead or spray
  • Auto dispense guns can be electric or pneumatic
  • Self diagnostic P.I.D. LCD display digital temperature controller with platinum sensor accuracy
  • 110/120V and 200/240V configurations fitted with gear pump
  • (2) 24VDC outputs supplied for easy spray conversion
  • Adjustable temperature and flow

Astro Packaging SS10 Hot Melt System Specifications

Dimensions
Length: 18.25 inches
Width: 13.5 inches
Height: 21.5 inches

Weight/Volume
54 lbs/10 lb

Power Requirements
115V-15A
230V-15A

Temperature Control
TC500 Controls:
Tank, Hoses, Guns maximum temperature 450°F

Astro Packaging SS10 Hot Melt System Performance

Warmup Time
30-45 minutes

Melt Rate
8 lb/hr

Viscosity
Maximum 25,000 centipoise

Tank Overtemperature
Thermostat Protected

Hoses/Guns TC500
Overtemperature Protected

Pump Warmup Thermostat
100 psi-600 psi max
44rpm motor yield
55 lbs.hr max
