Nordson 7700879 (TAH 160-732) Static Mixing Nozzle
Product Highlights
- Type: Static Mixer
- Brand: Nordson EFD
- Connection Type: Bell
- Adhesive Ratio: 1:1, 2:1
- Cartridge Size: Meter Mix Machine, 200 ml, 400 ml, 600 ml
- Viscosity: High
Nordson 7700879 (TAH 160-732) Static Mixing Nozzle Overview

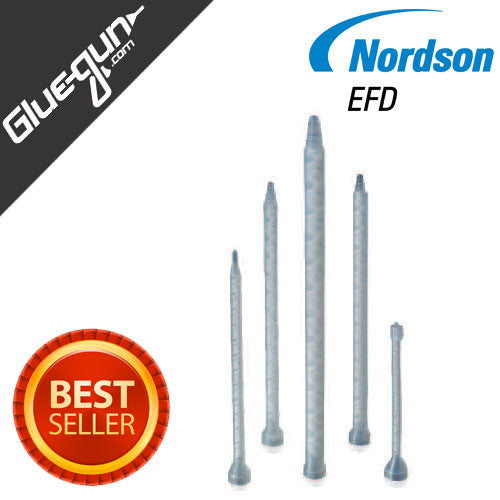

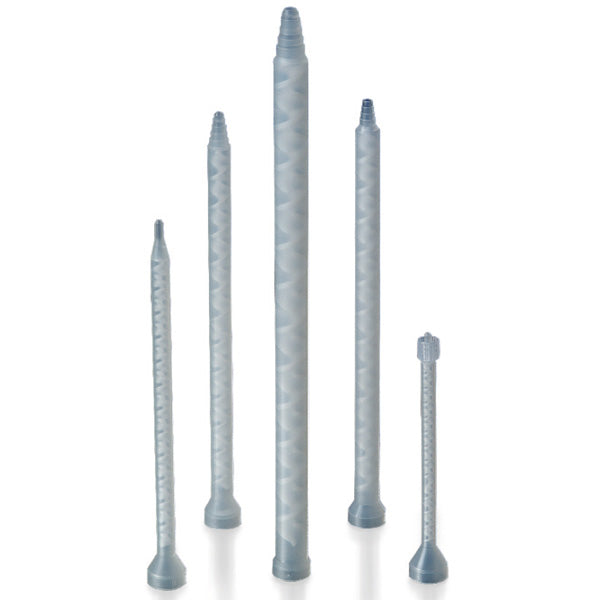

The Nordson TAH 160-732 (new part # 7700879) is one of our most popular static mixing nozzles with 32 mixing elements and an 8.0 mm element diameter (.314 in). This glue mixer has a stepped tip giving users the ability to cut the nozzle end to adjust the bead dispensing size.
The 160 static mixing nozzle is unique in that materials do not meet in the manifold before the mixer, eliminating the problem of manifold plugging and cleaning. Instead, the 160-732 mixer has valve manifolds that separately port the A and B materials directly into the mixer making the cleanup process a simple nozzle removal and manifold wipe.
Gluegun.com offers a low price guarantee on the Nordson TAH 160-732 static mixer. Contact us with questions regarding the Nordson TAH line of static mixing nozzles or help choosing the best product for your application.
Features and Benefits
- Bell Inlet Design: Specifically engineered to fit Nordson TAH Valve manifolds and large volume cartridges, ensuring seamless integration with dispensing systems.
- Direct Material Porting: Separately ports A and B materials directly into the mixer, promoting consistent and accurate mixing of components.
- Easy Cleanup: Cleanup is simplified by easily removing the mixer and wiping the manifold face clean, reducing downtime and maintenance efforts.
- Divider Fin Compatibility: Designed for use with cartridges that feature a divider fin, allowing for quick mixer removal without additional cleanup.
- High-Pressure Capability: The nozzle can be used with a metal jacket for applications where the working pressure exceeds 150 psi (10 bar), providing added durability and safety.
Specifications
- Series: Nordson TAH 160-732
- New Part Number: 7700879
- Type: Disposable Plastic Spiral Bell Mixer
- Works with Standard Cartridges (Bellmouth Connection)
- Bell Connector
- 32 Mixing Elements (8.0 mm)
- Stepped Tip
- Elements: Acetal, Housing: Polypropylene
Accessories
Questions about this product? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
