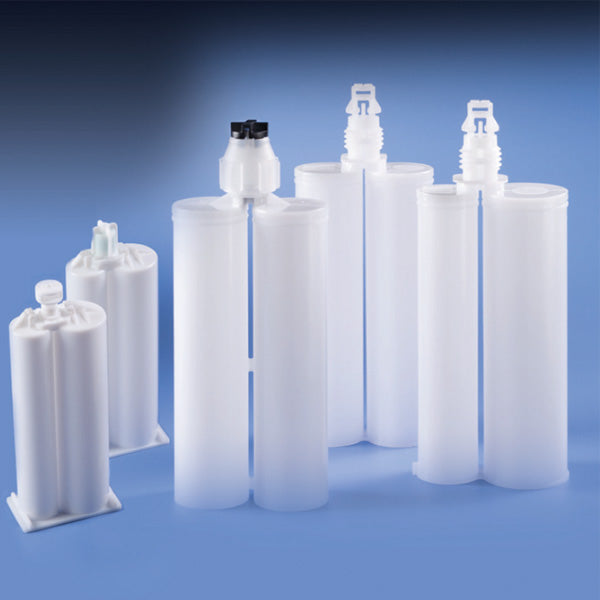

Nordson TAH 50 mL Side By Side Cartridge System
Product Highlights
- Type: Cartridge System
- Brand: Nordson TAH
- Adhesive Ratio: 10:1, 1:1, 2:1, 4:1
- Cartridge Size: 50 ml
About the Nordson TAH 50ml Side by Side Adhesive Cartridge Systems
The Nordson EFD 50ml cartridge system is available in 1:1, 2:1, 4:1 and 10:1 ratios giving users endless options for the types of adhesives they can dispense. The 50mL cartridge system is available in a wide variety of configurations allowing for a custom solution to your dispensing needs. All plugs are pre-assembled with the cartridge to increase shelf life of adhesive while reducing packaging costs.
Note: Contact us for pricing and availability of Nordson TAH Nylon 50ml cartridges and other available configurations.
Each System Includes O-Ring Piston
Nordson 50ml 1:1 Pistons
- 7702692 (B-302-11) EPDM O-Ring Piston (Tall)
Nordson 50ml 2:1
- Large: 7702705 (B-306-01) EPDM O-Ring Piston (Large side)
- Small: 7702714 (B-310-01) EPDM O-Ring Piston (Small side)
- Large: 7702705 (B-306-01) EPDM O-Ring Piston (Large side)
- Small: 7702721 (B-312-01) EPDM O-Ring Piston (Small side)
-
Large: 7702705 (B-306-01) EPDM O-Ring Piston (Large side)
- Small: 7702728 (B-314-01) EPDM O-Ring Piston (Small side)
Recommended Glue Guns
Nordson EFD 50mL Side By Side Cartridge System Features
- Ratios Available: 1:1, 2:1, 4:1, 10:1
- Materials of Construction: Polypropylene and nylon
- Superior Plug Closure: Preassembled for efficiency
- Closed Option Available: Hermetically sealed
- Two Styles of Dispensers: Manual dispenser and caulking gun conversion kit
- Large Mixer Selection
- Multiple Piston Options
- AF piston is available for 1:1 ratio
Nordson TAH 50ml Cartridge System Outlet Options
Open End Outlet
- Pre-assembled with traditional nose plugs and retaining nuts
- Most are available in polypropylene (PP) or Nylon
Hermetically Sealed Closed End Outlet
- Features Nordson TAH patented "pry-off" closure
- Molded in one operation
- Cost-effective alternative to open end cartridges
Nordson TAH 50ml Side By Side Adhesive Cartridge System Specifications
| Nordson Part # (PP) | Nordson Part # (Nylon) | Usable Volume | Description |
|
7015724 |
7362026 |
50mL |
Open-End Cartridge w/Retainer & Plug |
|
7702619 |
7702621 |
50mL |
Closed-End Cartridge w/Protective Cap |
|
7704061 (PE/PBT) |
– |
AF Air Free Piston |
|
|
7702687 |
– |
EPDM+ O-Ring Piston (Short) |
|
|
7702692 |
7702698 |
– |
EPDM O-Ring Piston (Tall) |
|
7702702 |
7702704 |
– |
Multi-seal Piston w/Pre-staged Center Bleed Plug |
|
7702692 |
7702895 |
50mL |
Open-End Cartridge w/Retainer & Plug |
|
7702627 |
50mL |
Closed-End Cartridge w/Protective Cap | |
|
7702705 |
7702709 |
– |
EPDM O-Ring Piston (Large side) |
|
7702714 |
7702717 |
– |
EPDM O-Ring Piston (Small side) |
|
7702896 |
7702898 |
42mL |
Open-End Cartridge w/Retainer & Plug |
|
7702721 |
7702725 |
– |
EPDM O-Ring Piston (Small side) |
|
7702900 |
7702902 |
37mL |
Open-End Cartridge w/Retainer & Plug |
|
7702728 |
7702732 |
– |
EPDM O-Ring Piston (Small side) |
Questions about this product? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
