Sulzer Mixpac MFQ Quadro Static Mix Nozzles

SKU: SULZER MFQ 05-16L or 116032

Price:
Sale price$2,995.00

Product Highlights

  • Type: Static Mixer
  • Brand: Sulzer Mixpac
  • Connection Type: Sulzer F Interface, Bell
  • Mixer Type: Square Mixer, Turbo Mixer
  • Adhesive Ratio: 1:1, 2:1
  • Cartridge Size: 200 ml, 400 ml, 600 ml
  • Sulzer System: F System

About the Sulzer Mixpac MFQ Static Mixer Nozzle

The Sulzer Mixpac MFQ Series static mixers are the Quadro mixer for the F Series allowing for 1:1 and 2:1 adhesive dispensing. The MFQ quad mixer gives optimal mixing in a smaller footprint than traditional mixers allowing users to work more closely with the materials they are bonding.

The real value of the Sulzer MFQ nozzle is the way it connects to the Sulzer F System cartridges through two separate outlets guaranteeing there is no product contamination prior to dispensing. This reduces clogging and extends cartridge life.

For Use with These Adhesives:

  • Epoxy
  • Acrylics
  • Silicone
  • Urethanes
  • Other High Viscosity Adhesives

Contact us for less-than-case pricing, bulk pricing or to discuss any questions you have about static mix dispensing.

For Use with:

Sulzer MFQ Nozzle Configurations

  • Sulzer MFQ 05-16L
  • Sulzer MFQ 05-24L
  • Sulzer MFQ 07-24T (Discontinued)
  • Sulzer MFQ 08-24T
  • Sulzer MFQ 10-24T

Helpful Hint: the Sulzer MFQX Series is used for dispensing 4:1 and 10:1 ratios.

*Sulzer MFQ 07-24T has been discontinued, we suggest MFQ 08-24T or MFQ 05-24L as an alternative.  We apologize for any inconvenience, please give us a call 855-437-7700 if you need further assistance.

Sulzer Mixpac MFQ Quadro Mixer Specifications

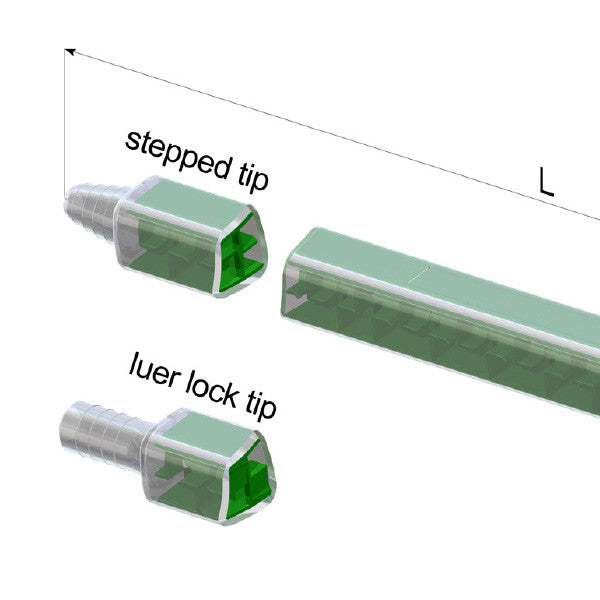

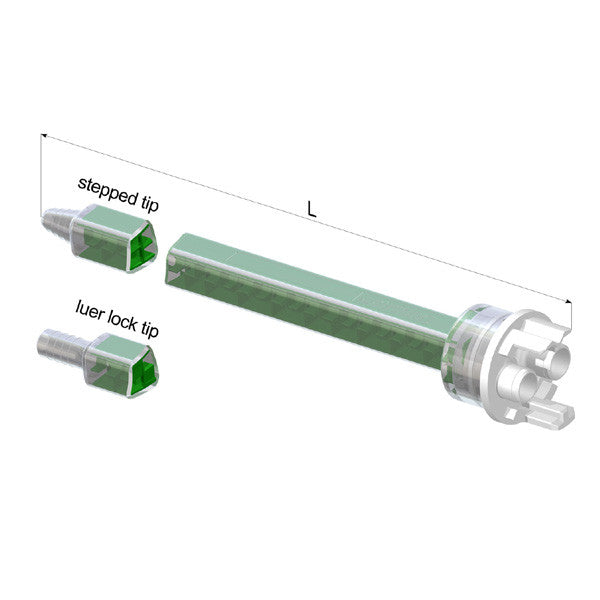

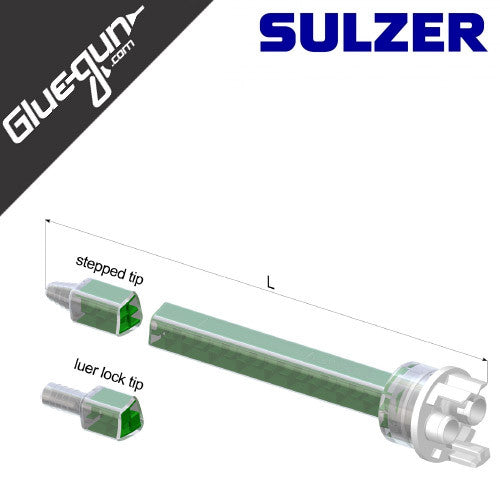

Mixer Quadro, 1:1/2:1 green elements, white interface, luer lock or stepped tip

Part Number Article/Number Elements [/](mm) L(mm) Vol. (ml)
116032 MFQ 05-16L 16 5.3 100 2.9
116033 MFQ 05-24L 24 5.3 132 3.52
116034 MFQ 07-24T (Discontinued) 24 7.5 137 6.11
115959 MFQ 08-24T 24 8.7 155 8.69
116035 MFQ 10-24T 24 10.7 181 14.75
