Sulzer MAH 03-17S Static Mixer Nozzle

SKU: SULZER MAH 03-17S (10000)

Manufacturer Part #: 102364


Price:
Sale price$4,616.00
Unit price ($0.46/each)
15 product options available.

Product Highlights

  • Type: Static Mixer
  • Brand: Sulzer
  • Elements: 17
  • Length: 2.48 in / 63 mm
  • Tip Style: Tapered
  • Cartridge Size: 50 ml, 75 ml
  • Sulzer System: A System
  • Connection Type: Bayonet

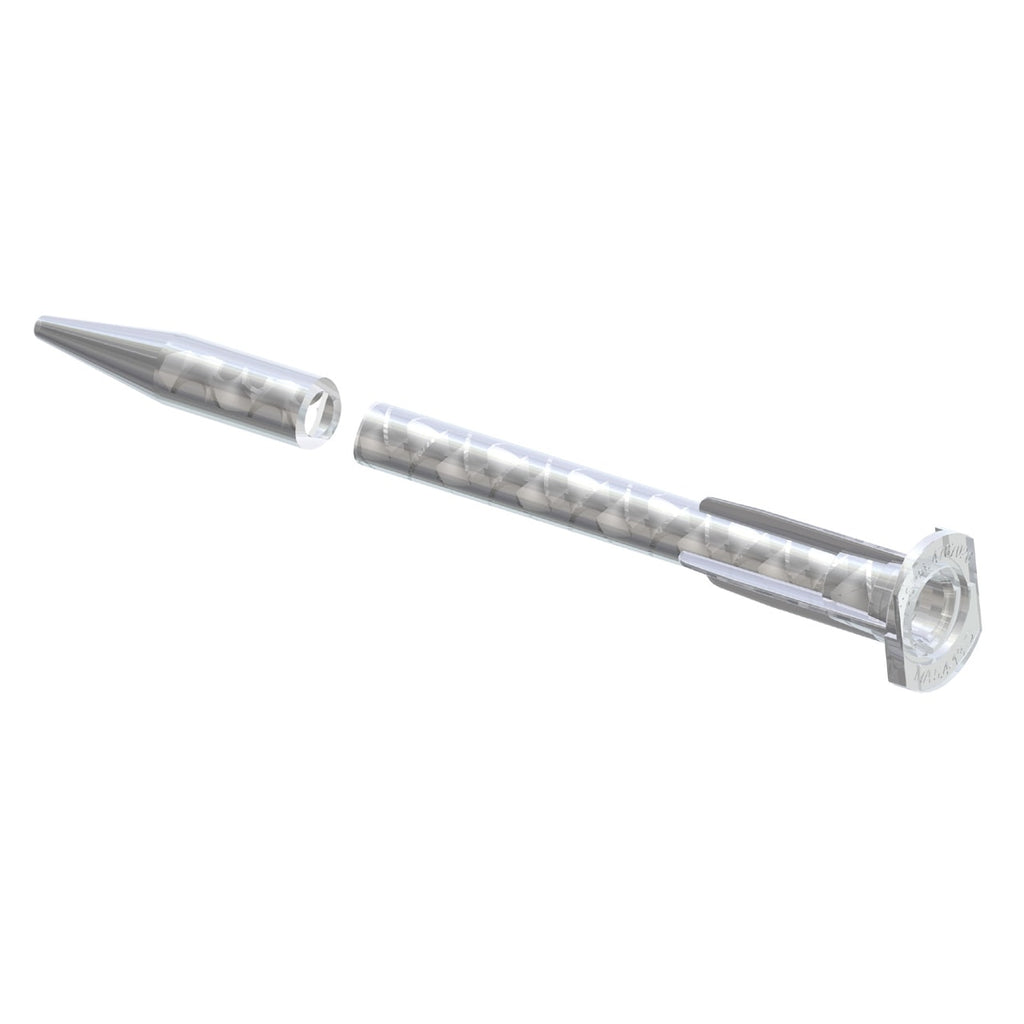

Sulzer MAH 03-17S Static Mixing Nozzle - Helix Type for MIXPAC™ A System

The Sulzer MAH 03-17S static mixing nozzle features a Helix mixer design that ensures optimal mixing performance. This nozzle utilizes a Bayonet (Twist and Lock) connection, making it compatible with the MIXPAC™ A System for efficient operation. It supports mix ratios of 1:1 and 2:1 for 50 ml and 75 ml cartridges, incorporating 17 mixing elements. With an inner diameter of 0.118 in (3.0 mm) and a length of 2.48 in (63 mm), the tapered outlet tip is designed for precision application. Suitable for a variety of adhesive chemistries, including MMAs, epoxies, and polyurethanes, this clear polypropylene nozzle is an excellent choice for your mixing needs.

MAH 03-17S Features and Benefits

  • Efficient Helix Mixing Design: Ensures thorough mixing of adhesives and resins for optimal performance.
  • Secure Bayonet Connection: Provides a reliable and tool-free attachment to the MIXPAC™ A System cartridges.
  • Versatile Compatibility: Supports 1:1 and 2:1 mix ratios, compatible with 50 ml and 75 ml cartridges.
  • Precision Tapered Outlet Tip: Designed for accurate dispensing, minimizing waste and ensuring a clean application.
  • Durable Polypropylene Construction: Offers excellent chemical resistance, suitable for a range of two-part adhesive applications.

Sulzer MAH 03-17S Specifications

  • Series: MAH
  • Model: MAH 03-17S
  • Mixer Type: Helix
  • Connection Type: Bayonet (Twist and Lock)
  • System: MIXPAC™ A System
  • Compatible With: 1:1/2:1 50/75 ml Cartridges
  • Number of Elements: 17
  • Inner Diameter: 0.118 in / 3.0 mm
  • Length: 2.48 in / 63 mm
  • Waste Volume: 0.34 ml
  • Outlet Tip: Tapered Tip
  • Color: Clear
  • Element Material: Polypropylene (PP)
  • Housing Material: Polypropylene (PP)
  • Units/Box: 10000

Questions about Sulzer MAH 03-17S? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Sulzer MAH Mixers

Sulzer MAH Series static mixers feature a bayonet lock for 50 mL cartridges and support 1:1 and 2:1 mix ratios. Suitable for epoxies, silicones, and more.

View all Sulzer MAH Mixers

Sulzer Part # Name Elements Length Tip Style
102361 Sulzer MAH 03-07S 71.339 in / 34 mmTapered
102362 Sulzer MAH 03-13S 132.244 in / 57 mmTapered
102364 Sulzer MAH 03-17S 172.48 in / 63 mmTapered
102366 Sulzer MAH 04-13S 132.598 in / 66 mmTapered
102368 Sulzer MAH 04-17S 173.228 in / 82 mmTapered
102369 Sulzer MAH 05-07T 72.205 in / 56 mmStepped Tip
102370 Sulzer MAH 05-13D 133.11 in / 79 mmStraight
102371 Sulzer MAH 05-13T 133.346 in / 85 mmStepped Tip
102360 Sulzer MAH 0517-0413T 305.906 in / 150 mmStepped Tip
102372 Sulzer MAH 05-17T 174.094 in / 104 mmStepped Tip
102373 Sulzer MAH 05-21T 214.882 in / 124 mmStepped Tip
102377 Sulzer MAH 06-12T 123.819 in / 97 mmStepped Tip
102378 Sulzer MAH 06-17T 175.059 in / 128.5 mmStepped Tip
102379 Sulzer MAH 06-21L 215.945 in / 151 mmSlip Luer
102380 Sulzer MAH 06-21T 216.024 in / 153 mmStepped Tip
