ASI Torque 09 RC General Purpose Low Viscosity Retaining Compound

Product Highlights

Adhesive Type:
  • Retaining Compound
Brand:
  • Adhesive Systems Inc (ASI)

Properties
Icon
Chemical Resistant
Icon
Heat Resistant
Icon
Impact & Shock Resistant
SKU: ASI 09RC-10MIL
$100.00
Buying in bulk? Request a volume quote.

Request a volume quote

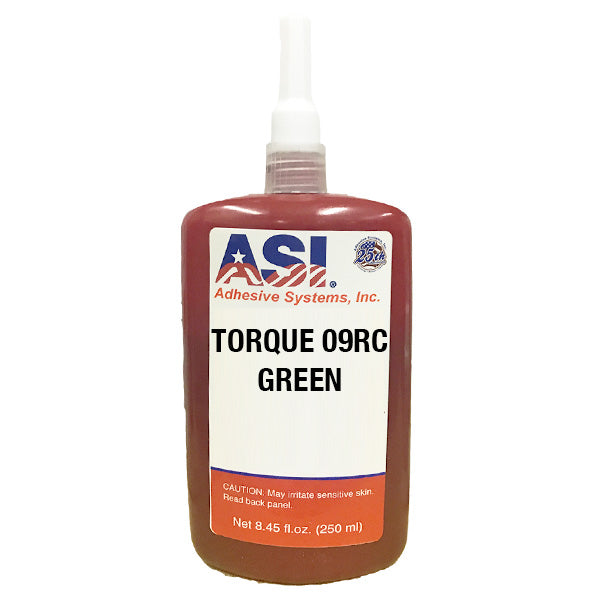

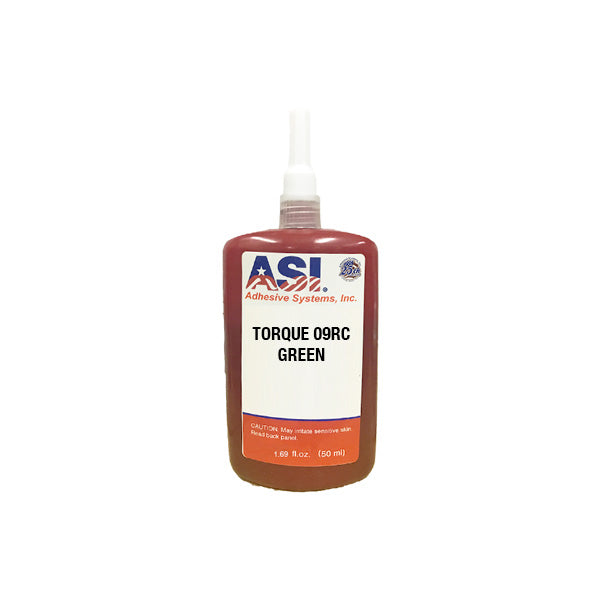

ASI Torque 09 RC General Purpose Low Viscosity Retaining Compound

About ASI Torque 09 RC Retaining Compound

Adhesive Systems, Inc. ASI Torque 09 RC is a low viscosity general purpose retaining compound. The Torque 09 RC fixtures in under 10 minutes and providing shear strength up to 3,800 psi and works well on both similar and dissimilar metals. The Torque 09RC meets the MIL SPEC MIL-R-6082B, Type I

ASI Torque 09 RC Specifications

  • Color: Green
  • Viscosity: 125 cps
  • Gap Fill: .005"
  • Shear Strength Steel/Steel: 3,800 psi
  • Temperature Range: -60 to 350°F
  • Cure Speed (Fixture/Full): 15 Minutes/8 Hours
  • Specific Gravity: 1.10

Compare ASI Torque 09 RC to

  • LOCTITE™ 609

* The product names used in this website are for identification purposes only.

* All trademarks and registered trademarks are the property of their respective owners.

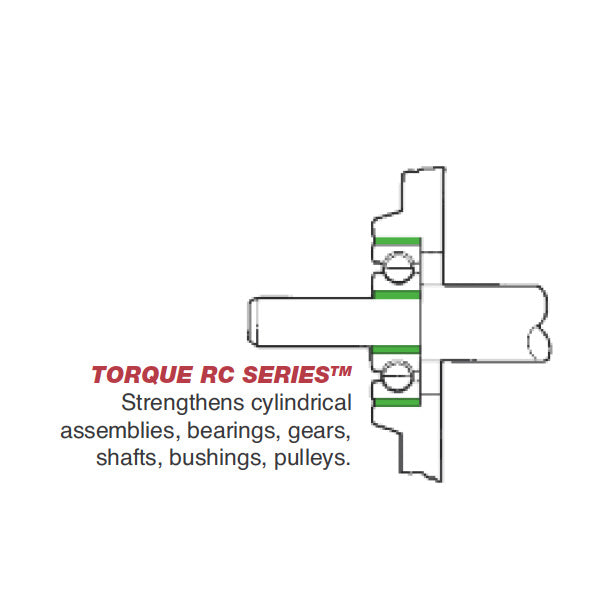

About the ASI TORQUE RC Series Retaining Compounds

The TORQUE RETAINING SERIES is engineered to greatly increase the shear strength of cylindrical, non threaded assemblies. These products fill the inner space and surface irregularities between the parts forming a tough, durable polymer, that creates a unitized, strong, precision assembly, preventing corrosion. They are single component, solvent free compounds that are ready to use right from the bottle, or can be easily automated. The TORQUE RETAINING SERIES is formulated in a wide range of viscosities, gap filling ability, cure times and strength characteristics. This technology greatly enhances the reliability and performance properties of the finished assembly. Even in the best press fit application there is only 20 to 30 percent actual metal contact between the surfaces.

The TORQUE RETAINING SERIES fills all the voids between the parts increasing the overall strength of the assembly by 2 to 3 times that of the original press fit. Other retaining and locking devices can be eliminated such as keyways, set screws, splines, tapers, knurls, etc. Machining tolerances can be relaxed lowering the cost of the assembly and simplifying the assembly process. Improved quality, reliability, cost effectiveness, ease of use, are just a few of the many benefits the TORQUE RETAINING SERIES brings to improve the manufacturing techniques in your assembly applications.


Data Sheets »

ASI Torque 09 RC Retaining Compound Data Sheets

Technical Data Sheet

Safety Data Sheet
