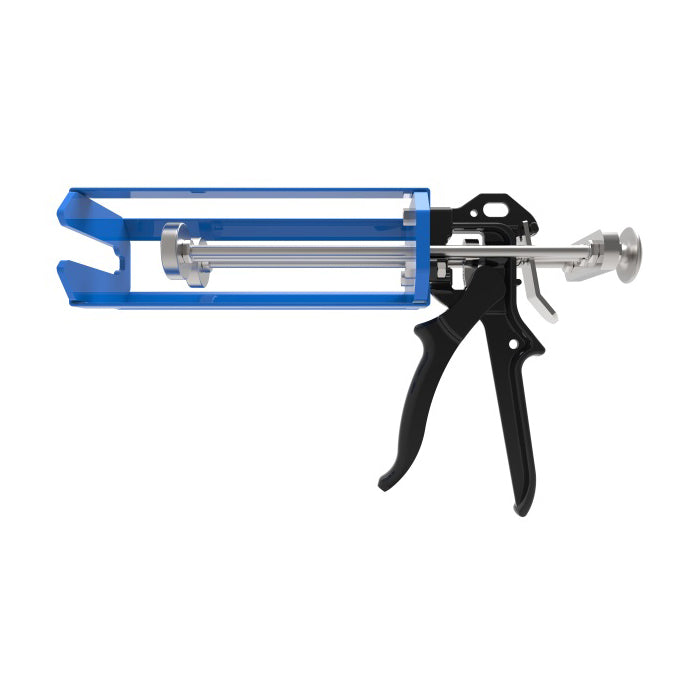

COX VBM 400X MR Dual Component 400ml Manual Cartridge Gun

High-Powered Manual Dispensing for High-Viscosity Two-Part Materials

The COX VBM 400X MR is a dual-component manual applicator designed for 400 mL (14 oz) side-by-side cartridges containing high-viscosity materials. Its 25:1 mechanism delivers up to 4.5 kN of thrust, while snap-fit cartridge straps provide secure support and fit. Included ratio-change plunger kits accommodate 1:1, 2:1, 4:1, and 10:1 cartridge ratios.

Key Advantages of the VBM 400X MR Manual Applicator

• High-Powered Dispensing: A 25:1 mechanical advantage delivers up to 4.5 kN of thrust for high-viscosity materials.
• Multiple Cartridge Ratios: Included ratio-change plunger kits allow the applicator to accommodate 1:1, 2:1, 4:1, and 10:1 side-by-side cartridges.
• Secure Cartridge Support: Snap-fit cartridge straps help maintain proper cartridge support and fit.
• Wear Compensation: A sintered alloy catch plate incorporates a Wear Compensation Device (WCD).

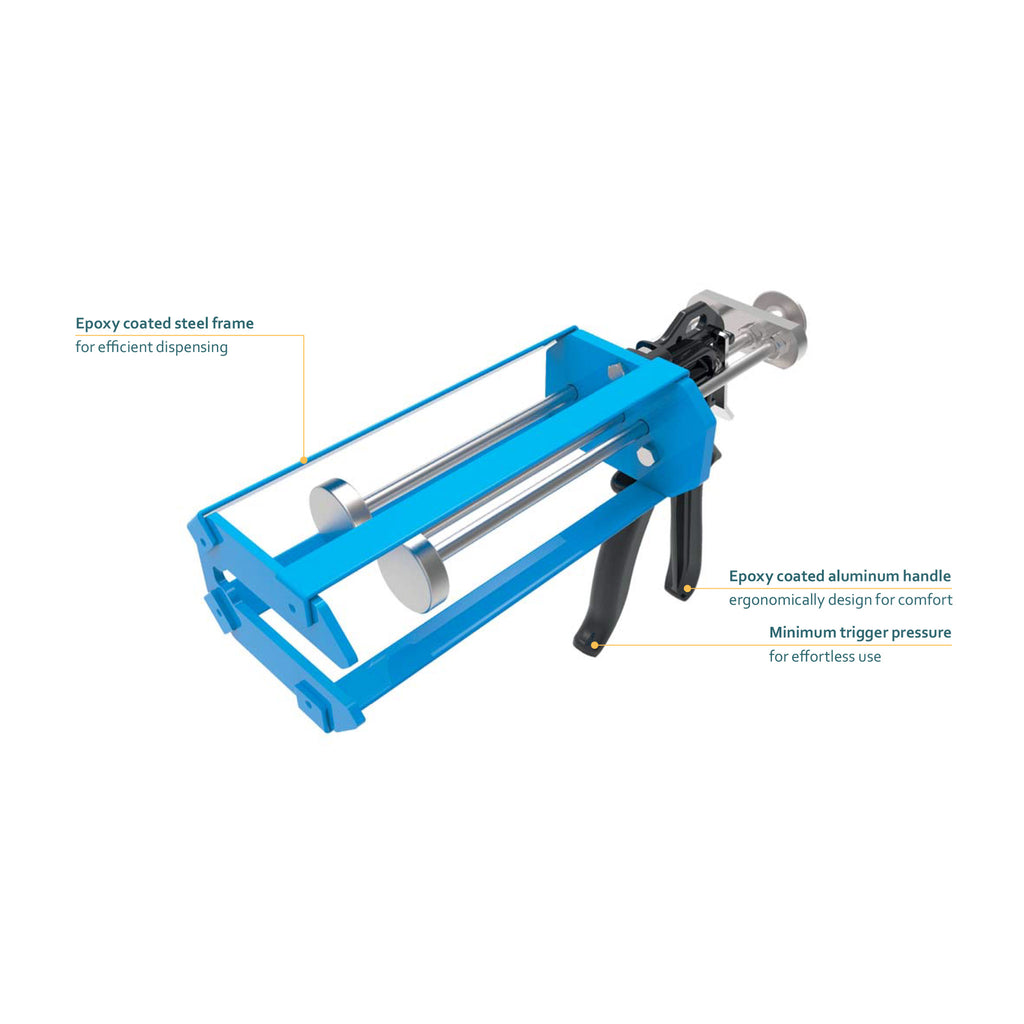

• Comfortable Manual Operation: The ergonomic epoxy-coated aluminum handle is designed to minimize trigger pressure during use.

Specifications

• Brand: COX
• Model: VBM 400X MR
• Tool Type: Dual-Component Manual Cartridge Applicator
• Cartridge Capacity: 400 mL (14 oz)
• Cartridge Configuration: Side-by-Side
• Compatible Cartridge Ratios: 1:1, 2:1, 4:1, 10:1
• Maximum Thrust: 4.5 kN
• Mechanical Advantage Ratio: 25:1
• Material Viscosity: High
• Handle Material: Epoxy-Coated Aluminum
• Frame Material: Epoxy-Coated Steel

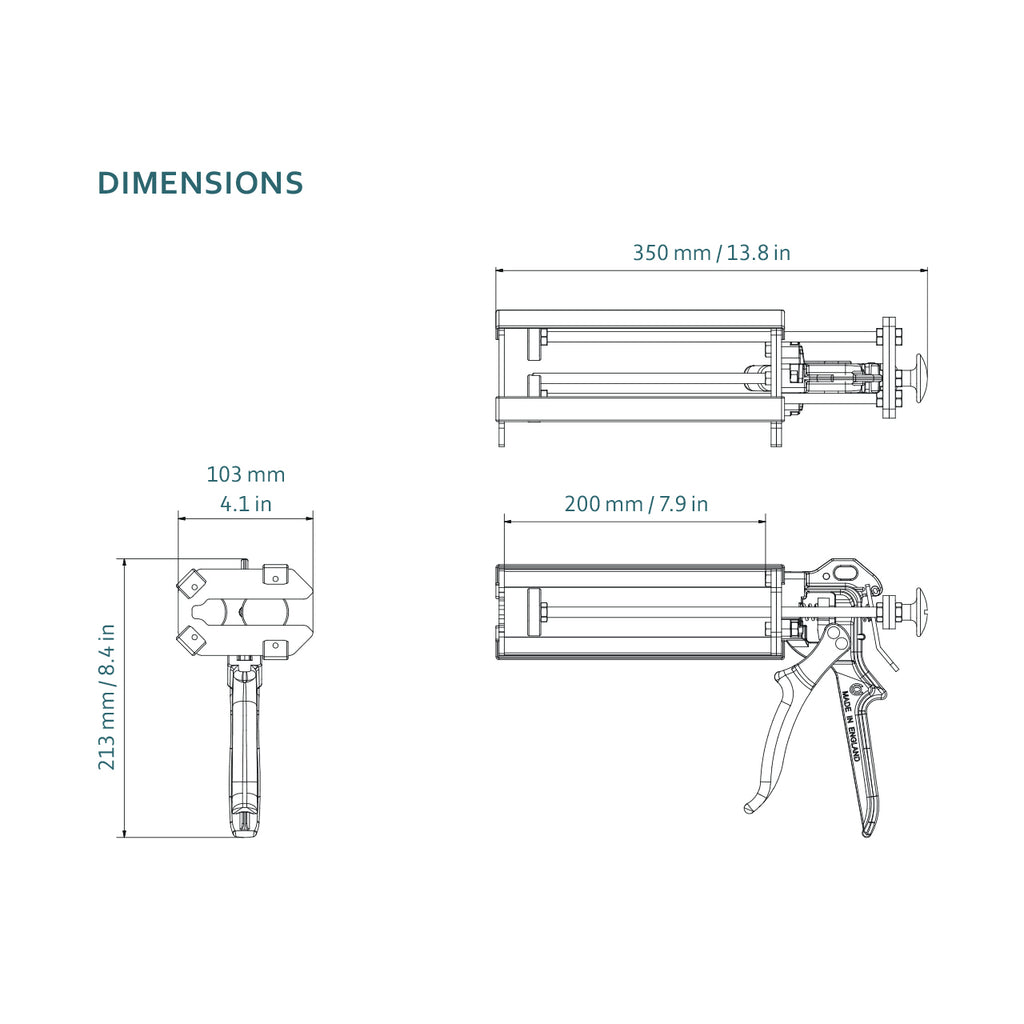

• Frame Length: 7.9 in (200 mm)
• Overall Dimensions: 13.8 × 8.4 × 4.1 in (350 × 213 × 103 mm)
• Weight: 3.8 lbs (1.8 kg)
• Color: Black/Blue
• Tool Component Approval: REACH

Compatible Cartridges

Designed for dual-component 400 mL (14 oz) side-by-side cartridges. Included ratio-change plunger kits support compatible MIXPAC C-System and F-System cartridges in 1:1, 2:1, 4:1, and 10:1 ratios, along with BlueLine cartridges in 2:1 and 10:1 ratios.
