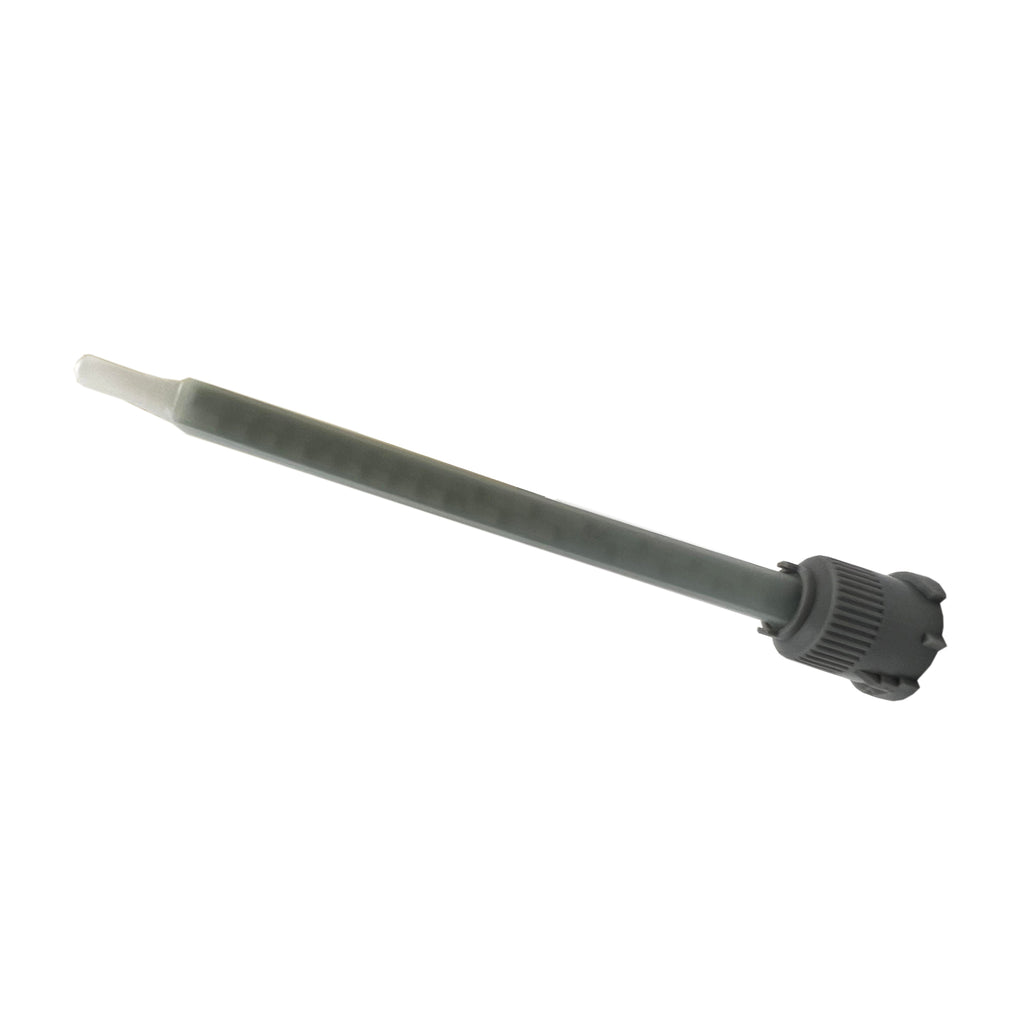

Infinity Bond MBQ 05-24L Quadro static mixer with twist-and-lock inlet and slip luer tip, featuring 24 elements for 1:1 and 2:1 adhesives in a compact, high-efficiency design.
Roll over image to zoom in Click on image to zoom
Infinity Bond MBQ 05-24L Quadro static mixer with twist-and-lock inlet and slip luer tip, featuring 24 elements for 1:1 and 2:1 adhesives in a compact, high-efficiency design.

Infinity Bond MBQ 05-24L Static Mixer

SKU: INF MIX MBQ-05-24L (100)

Price:
$95.00
($0.95/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 24
  • Length: ~4.803 in / 122 mm
  • Tip Style: Slip Luer
  • Cartridge Size: 25 ml, 50 ml, 75 ml
  • Sulzer System: B System
  • Connection Type: Sulzer B Series, Twist and Lock

Infinity Bond MBQ 05-24L Quadro Static Mixing Nozzle with Luer Slip Tip

The Infinity Bond MBQ 05-24L static mixing nozzle features a compact Quadro design that enables thorough blending in a shorter overall length. It includes a Luer Slip Tip outlet for compatibility with a wide range of dispensing needles and accessories, allowing for precise application. Designed for use with 1:1 and 2:1 adhesive systems, this nozzle supports MMAs, epoxies, polyurethanes, and silicones. The MBQ 05-24L is a compatible alternative to the Sulzer MBQ 05-24L static mixer nozzle.

Why Choose the MBQ 05-24L Adhesive Mixing Tip

  • Quadro Mixing Efficiency: The square 24 element design enhances blending performance while reducing overall nozzle length.
  • Compact Profile: Shorter nozzle design allows users to work closer to substrates for improved control and visibility.
  • Luer Slip Tip Outlet: Enables use with a variety of needles and accessories for precise adhesive application.
  • Supports 1:1 and 2:1 Adhesives: Compatible with common two-part chemistries like epoxies, MMAs, silicones, and polyurethanes.
  • Twist-and-Lock Connection: Provides a secure fit to dual cartridges for consistent, leak-free dispensing.

Specifications

  • Part Number: MBQ 05-24L
  • Mixer Type: Quadro
  • Connection Type: Twist and Lock
  • Outlet Tip: Luer Slip
  • Compatible Cartridge Sizes: 25, 50, 75 ml
  • Mix Ratios: 1:1 and 2:1
  • Number of Elements: 24
  • Inner Diameter: ~0.209 in / 5.3 mm
  • Outer Diameter: ~0.287 in / 7.3 mm
  • Length: ~4.803 in / 122 mm
  • Outlet Orifice Diameter: ~0.041 in / 1.05 mm
  • Approx. Retained Volume: ~2.60 ml
  • Housing Material: Polypropylene
  • Element Material: Acetalcopolymere
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for MBQ 05-24L Mixer Tips

Questions about Infinity Bond MBQ 05-24L? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Official Supplier

Gluegun.com is an official supplier of Infinity Bond adhesives and equipment. We are the largest supplier of Infinity Bond glue guns, glue sticks, and structural adhesives.

View all Infinity Bond products

Guaranteed Safe Checkout

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
