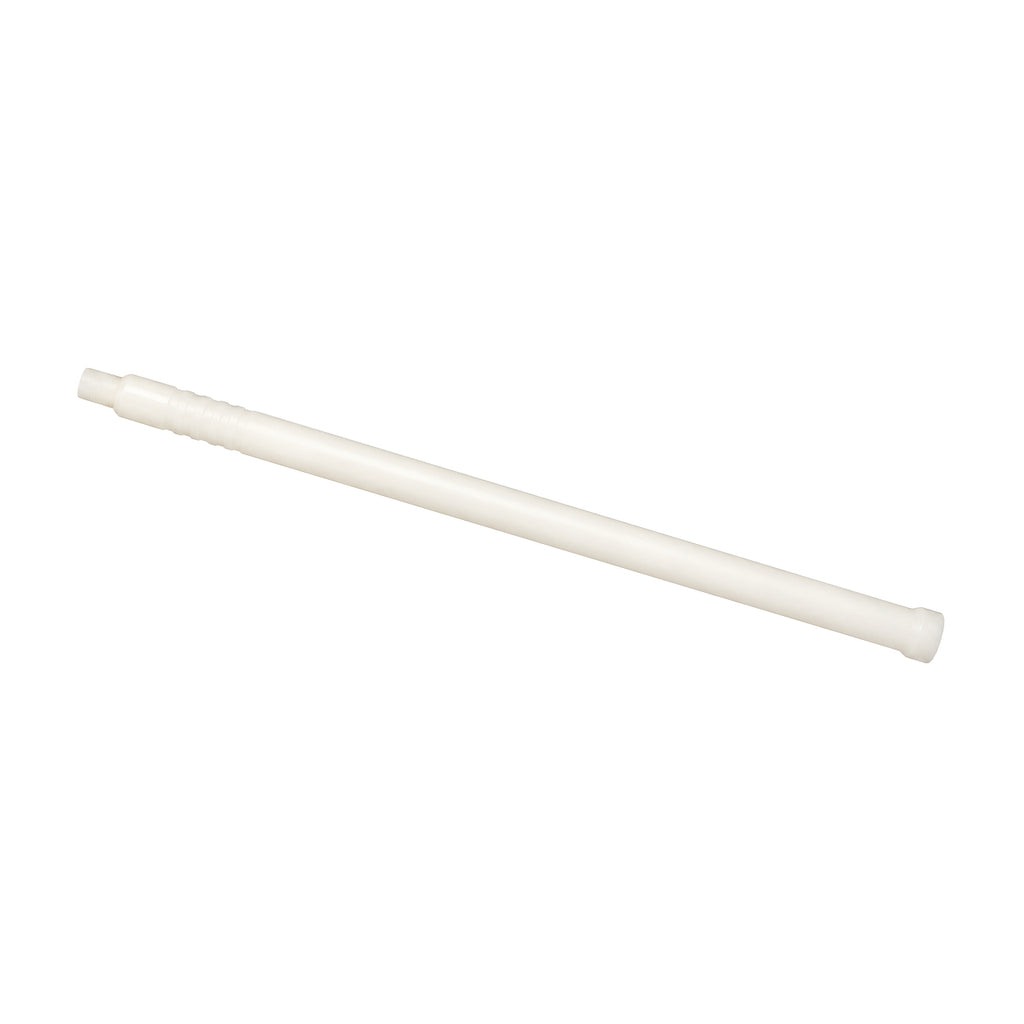

BTmix MS 13-32G-01 bell connection static mixing nozzle with threaded outlet

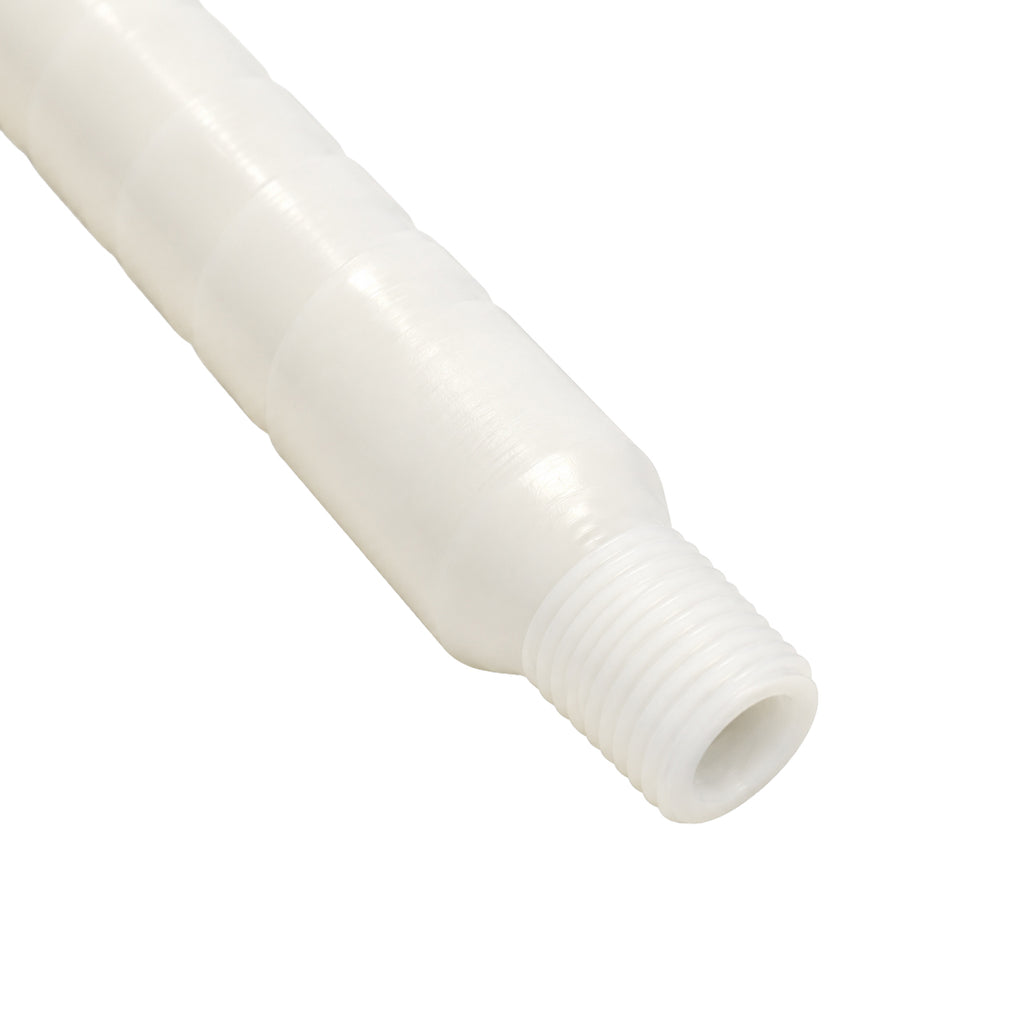

BTmix MS 13-32G-01 static mixing nozzle 1/4 in threaded outlet

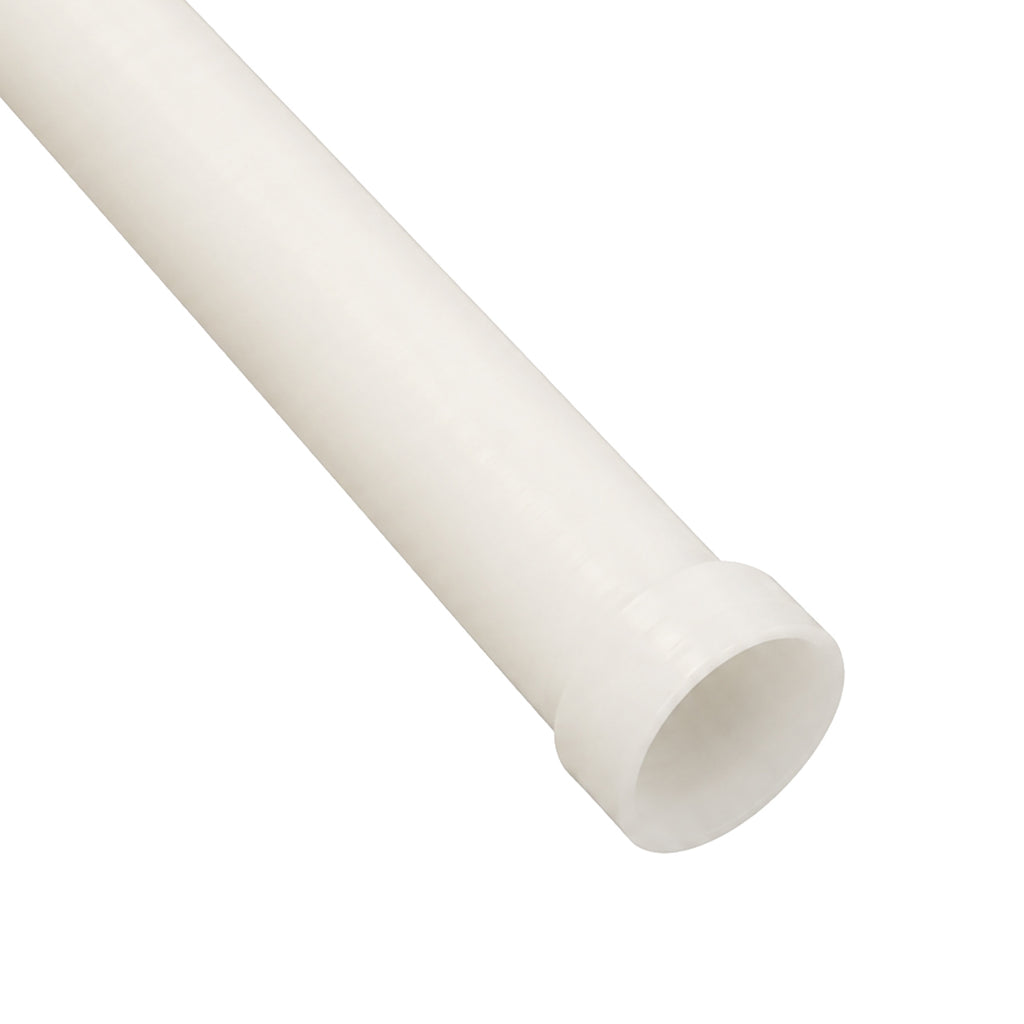

BTmix static mixing nozzle bell connection close-up

Roll over image to zoom in Click on image to zoom

BTmix MS 13-32G-01 Static Mixer Nozzle

SKU: BT MS 13-32G-01 (250)

Manufacturer Part #: MS 13-32G-01

Type: Static Mixer
Brand: BTmix
Elements: 32
Length: 14.724 in / 374 mm
Tip Style: Threaded Tip
Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
Sulzer System: C System
Connection Type: Bell

BTmix MS 13-32G-01 Static Mixer with 1/4 in Threaded Outlet

The BTmix MS 13-32G-01 is a disposable static mixer with a bell connection for C System 1:1 and 2:1 200 ml, 400 ml, and 600 ml cartridges and meter mix machines. Its 32-element mixing design is paired with a 1/4 in MNPT threaded outlet for dispensing epoxies, polyurethanes, silicones, and methyl methacrylates. The MS 13-32G-01 can be used in product assembly, carbon fiber, potting, and concrete repair applications.

MS 13-32G-01 Threaded Static Mixer Features

Meter Mix Equipment Use: Designed for use with meter, mix, and dispense machines for two-part material processing.
1/4 in Threaded Outlet: Features an externally threaded MNPT discharge for dispensing mixed material.
32-Element Helix Mixer: Supports thorough mixing of two-part materials through a 32-section mixing element.
1:1 & 2:1 Mix Ratios: Designed for dispensing applications using 1:1 or 2:1 material ratios.
Bell Mount Connection: Uses a bell connection with 7/8-9 or 7/8-14 thread retaining nut options.
