Nordson 7361707 OptiMixer Nozzle

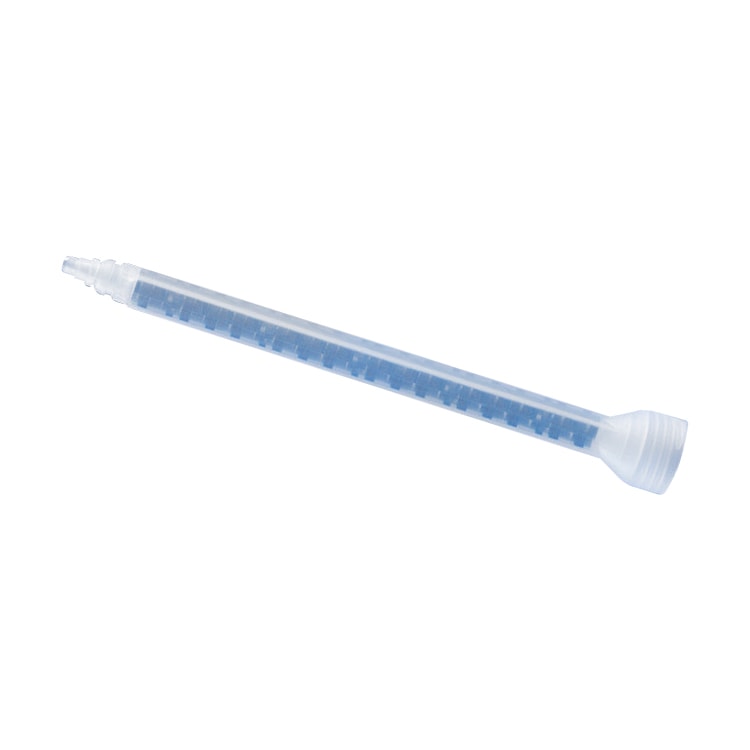

Nordson 7361707 Static Mixing Nozzle - Square Turbo Design

The Nordson 7361707 static mixing nozzle features a square turbo mixer type, designed for efficient mixing with u-TAH Universal Cartridges, 380mL coaxial cartridges, and 200−1500mL side x side cartridges. This high-performance mixing nozzle supports a wide range of adhesive chemistries, making it compatible with epoxies and polyurethanes. With 41 mixing elements, an inner diameter of 0.344 in (8.7 mm), and a length of 8.1 in (20.6 cm), it ensures optimal mixing performance. The stepped outlet tip allows for precise application, while the retained volume of 10.0 ml minimizes waste, making it a reliable choice for both industrial and commercial applications.

Features and Benefits of Nordson 7361707 Mixing Nozzle

• Square Turbo Mixer Design: Provides superior mixing performance with 41 elements for thorough blending of adhesives.
• Compatible with Multiple Systems: Designed to work seamlessly with u-TAH Universal, 380mL coaxial, and 200−1500mL side x side cartridges.
• Stepped Outlet Tip: Ensures precise application and control for a variety of adhesive chemistries, including epoxies and polyurethanes.
• Optimal Retained Volume: Retained volume of 10.0 ml minimizes waste during application, enhancing efficiency.
• Durable Material Composition: Constructed from acetal for the element and polypropylene for the housing, providing strength and chemical resistance.

Nordson 7361707 Specifications

• Series: 480
• Part Number: 7361707
• Mixer Type: Square, Turbo
• Compatible With: u-TAH Universal Cartridges, 380mL Coaxial Cartridges, and 200−1500mL Side x Side Cartridges
• Number of Mixing Elements: 41
• Element Width: 0.344 in / 8.7 mm
• Housing Length: 8.1 in / 20.6 cm
• Housing Inlet: Integral Nut
• Housing Outlet: Stepped
• Retained Volume: 10.0 ml
• Element: Acetal
• Housing: Polypropylene
