Infinity Bond 160-624 static mixer nozzle with bell inlet and slip luer tip, featuring 24 elements for 1:1 and 2:1 adhesives in 200, 400, and 600ml cartridges or meter mix systems.

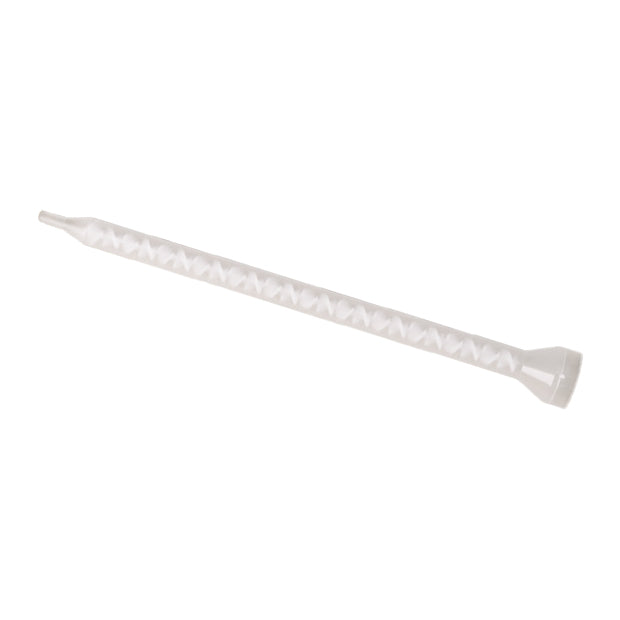

Infinity Bond 160-624 Static Mixer Nozzle
Infinity 160-624 static mix nozzle
Roll over image to zoom in Click on image to zoom
Infinity Bond 160-624 static mixer nozzle with bell inlet and slip luer tip, featuring 24 elements for 1:1 and 2:1 adhesives in 200, 400, and 600ml cartridges or meter mix systems.
Infinity Bond 160-624 Static Mixer Nozzle
Infinity 160-624 static mix nozzle

Infinity Bond 160-624 Disposable Static Mixer Nozzle

SKU: INF MIX 160-624L (100)

Price:
$110.00
($1.10/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 24
  • Length: 7.29 in / 185 mm
  • Tip Style: Slip Luer
  • Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
  • Sulzer System: C System
  • Connection Type: Bell

Infinity Bond 160-624 Static Mixing Nozzle with Slip Luer Tip for 200/400/600 ml Cartridges

The Infinity Bond 160-624 is a spiral-style static mixing nozzle designed for use with 200 ml, 400 ml, and 600 ml adhesive cartridges or Meter Mix Dispense (MMD) equipment in 1:1 and 2:1 mix ratios. It features 24 internal elements, a slip luer outlet tip for precise dispensing, and a bell housing connection that works with retaining nuts or MMD systems. With a 0.251 in (6.38 mm) inner diameter and 7.29 in (185 mm) length, this disposable mixer provides clean, efficient results. Commonly used as a cost-effective alternative to the Nordson 7700837 (formerly TAH 160-624), it offers premium performance at a lower price.

Infinity Bond 160-624 Adhesive Mixing Tip Features

  • Spiral Mixer Design: 24 internal elements provide reliable and efficient mixing of two-part adhesives.
  • Slip Luer Outlet Tip: Allows clean, precise dispensing and easy attachment to standard dispensing needles or accessories.
  • Bell Housing Connection: Compatible with cartridges or Meter Mix Dispense (MMD) equipment using a retaining nut for secure installation.
  • Durable Construction: Built from polypropylene with high-strength polyacetal elements for long-term chemical resistance.

Specifications

  • Part Number: 160-624
  • Mixer Type: Spiral
  • Connection Type: Bell
  • Outlet Tip: Slip Luer
  • Compatible Cartridge Sizes: 200, 400, and 600 ml cartridges
  • Mix Ratios: 1:1 and 2:1
  • Number of Elements: 24
  • Inner Diameter: 0.251 in / 6.38 mm
  • Outer Diameter: 0.383 in / 9.73 mm
  • Length: 7.29 in / 185 mm
  • Outlet Orifice Diameter: 0.076 in / 1.93 mm
  • Approx. Retained Volume: 4.2 ml
  • Housing Material: Polypropylene
  • Element Material: Polyacetal
  • System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More

Comparable Infinity Bond 160-624 Nozzles

Questions about Infinity Bond 160-624L? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Official Supplier

Gluegun.com is an official supplier of Infinity Bond adhesives and equipment. We are the largest supplier of Infinity Bond glue guns, glue sticks, and structural adhesives.

View all Infinity Bond products

Guaranteed Safe Checkout

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
