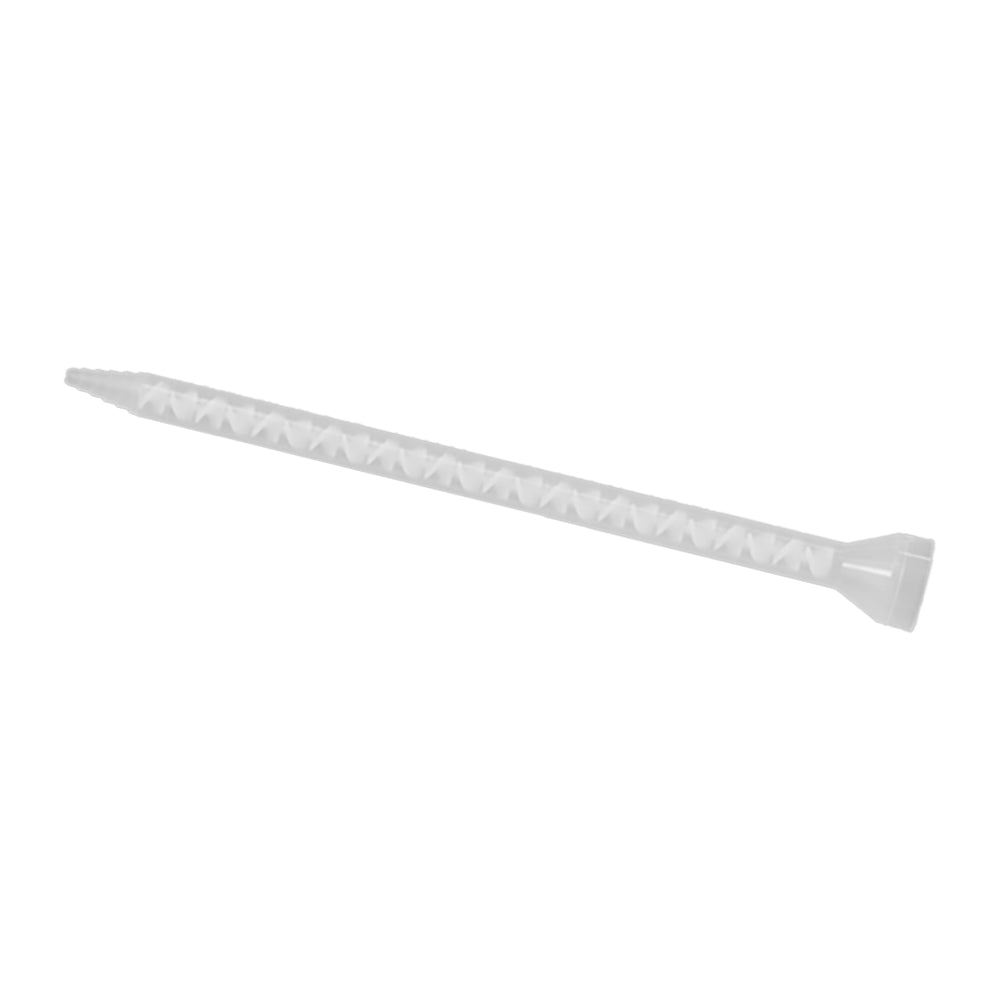

Infinity Bond 160-824 static mixer nozzle with bell inlet and stepped tip, featuring 24 mixing elements for high-performance adhesive dispensing.
160-824T static mixer nozzle
Static mixer bell attachment
Static mixer nozzle with stepped tip
Roll over image to zoom in Click on image to zoom
Infinity Bond 160-824 static mixer nozzle with bell inlet and stepped tip, featuring 24 mixing elements for high-performance adhesive dispensing.
160-824T static mixer nozzle
Static mixer bell attachment
Static mixer nozzle with stepped tip

Infinity Bond 160-824 Disposable Static Mixer Nozzle - for 400ml Cartridges

SKU: INF MIX 160-824T (100)

Price:
$105.00
($1.05/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 24
  • Length: 9.12 in / 231.65 mm
  • Tip Style: Stepped Tip
  • Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
  • Sulzer System: C System
  • Connection Type: Bell

Infinity Bond 160-824 Spiral Mixer Nozzle with Stepped Tip for Large Cartridges

The Infinity Bond 160-824 is a spiral static mixer nozzle built for high-volume dispensing from 200 ml, 400 ml, and 600 ml cartridges or Meter Mix Dispense (MMD) equipment. It features a bell housing and a stepped outlet tip that can be trimmed to adjust bead size. With 24 internal elements and a 9.12 in (231 mm) length, this disposable static mixer provides consistent, reliable blending for two-part adhesives in demanding production environments. Commonly used in place of the Nordson 7700904 (TAH 160-824), it offers professional performance at a lower cost.

Infinity Bond 160-824 Static Mixing Nozzle Features and Benefits

  • Spiral Mixer Design: 24 internal elements ensure thorough, reliable blending of two-part adhesives in high-volume applications.
  • Stepped Outlet Tip: Allows clean, controlled dispensing and can be trimmed for adjustable bead sizes.
  • Bell Housing Inlet: Provides a secure, leak-free connection to 200, 400, and 600 ml cartridges or Meter Mix Dispense (MMD) systems.
  • Durable Construction: Made with a polypropylene housing and polyacetal mixing elements for long-lasting performance.
  • Cost-Effective Alternative: Often chosen as a comparable replacement for Nordson 7700904 (TAH 160-824).

160-824 Technical Specifications

  • Part Number: 160-824
  • Mixer Type: Spiral
  • Connection Type: Bell
  • Outlet Tip: Stepped
  • Compatible Cartridge Sizes: 200, 400, and 600 ml cartridges
  • Mix Ratios: 1:1 and 2:1
  • Number of Elements: 24
  • Inner Diameter: 0.366 in / 9.29 mm
  • Outer Diameter: 0.500 in / 12.70 mm
  • Length: 9.12 in / 231.65 mm
  • Outlet Orifice Diameter: 0.12 in / 3.05 mm
  • Approx. Retained Volume: 11 ml
  • Housing Material: Polypropylene
  • Element Material: Polyacetal
  • System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More

Comparable Infinity Bond 160-824 Mixer Nozzle

Questions about Infinity Bond 160-824? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Official Supplier

Gluegun.com is an official supplier of Infinity Bond adhesives and equipment. We are the largest supplier of Infinity Bond glue guns, glue sticks, and structural adhesives.

View all Infinity Bond products

Guaranteed Safe Checkout

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
