Infinity Bond MCH 10-32T Disposable Static Mixer Nozzle
Product Highlights
- Type: Static Mixer
- Brand: Infinity Bond
- Elements: 32
- Length: 13.86 in / 352 mm
- Tip Style: Stepped Tip
- Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
- Sulzer System: C System
- Connection Type: Bell

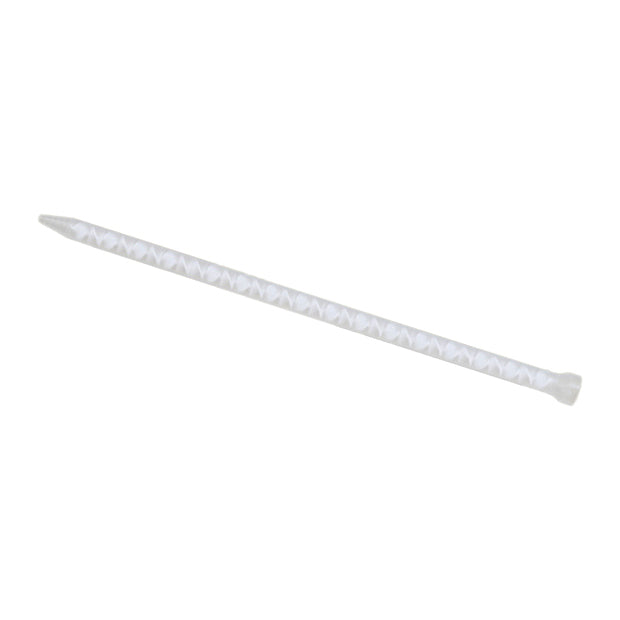

Infinity Bond MCH 10-32T Stepped Tip Static Mixer Nozzle for 1:1 and 2:1 Adhesives
The Infinity Bond MCH 10-32T is a high-performance static mixing nozzle engineered for 1:1 and 2:1 two-part adhesive dispensing. It features a helical mixer design with 32 internal elements, a bell inlet connection, and a stepped outlet tip for adjustable bead size. With an extended length of 13.86 in (352 mm), this nozzle ensures consistent blending and controlled application in both cartridge and meter mix equipment. It is compatible with 200 ml, 400 ml, and 600 ml cartridges and performs well with MMAs, epoxies, polyurethanes, and silicones. Comparable with Sulzer MCH 10-32T and suitable for use in MIXPAC™ C System configurations.
MCH 10-32T Static Mixing Nozzle Features and Advantages
- Helical Mixing Technology: Contains 32 high-precision mixing elements to ensure thorough blending of two-part adhesives and sealants.
- Extended 13.86 in Length: Delivers consistent mixing performance with greater reach for deep or hard-to-access bond lines.
- Adjustable Stepped Tip: Stepped outlet allows for customizable bead size by trimming the tip to suit your dispensing needs.
- Robust Material Compatibility: Performs exceptionally with MMAs, epoxies, polyurethanes, and silicones across industrial applications.
- Versatile System Fit: Works with 200 ml, 400 ml, and 600 ml cartridges or Meter Mix Dispense (MMD) equipment; integrates easily into MIXPAC™ C System setups.
- Reliable Bell Inlet Connection: Secures to cartridges or dispensing valves using a standard bell housing with retaining nut.
Specifications
- Part Number: MCH 10-32T
- Mixer Type: Helix
- Connection Type: Bell
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 200, 400, and 600 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 32
- Inner Diameter: 0.394 in / 10.00 mm
- Outer Diameter: 0.532 in / 13.51 mm
- Length: 13.86 in / 352 mm
- Outlet Orifice Diameter: 0.12 in / 3.05 mm
- Approx. Retained Volume: 19 ml
- Housing Material: Polypropylene
- Element Material: Polyacetal
- System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More
Replaces Popular Name Brand Mixers
