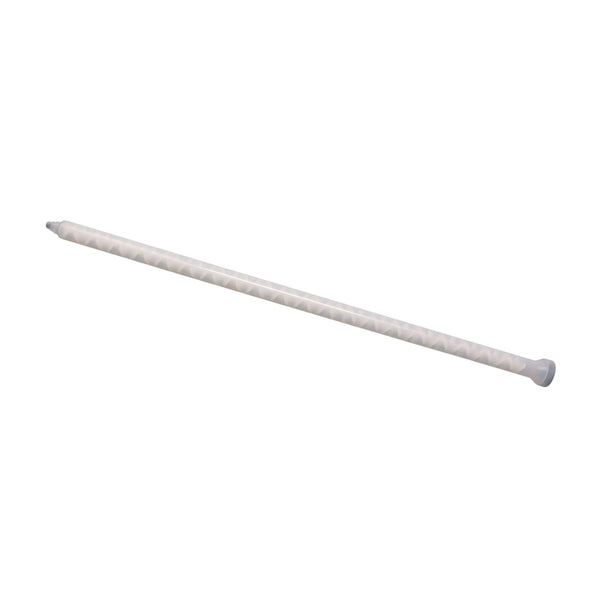

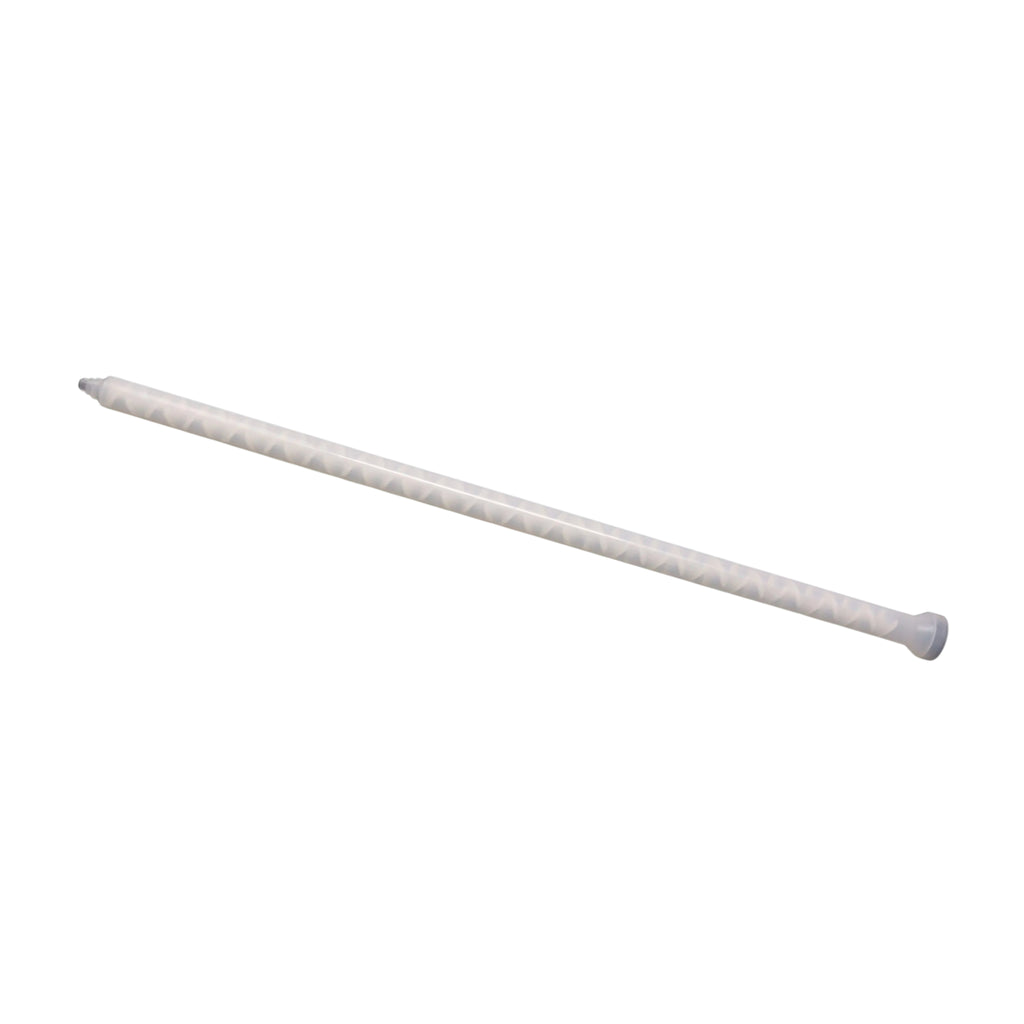

Infinity Bond 160-840 static mixer nozzle with bell inlet and stepped tip outlet, featuring 40 mixing elements and a 0.366" element diameter.
Roll over image to zoom in Click on image to zoom
Infinity Bond 160-840 static mixer nozzle with bell inlet and stepped tip outlet, featuring 40 mixing elements and a 0.366" element diameter.

Infinity Bond 160-840 Static Mixer Nozzle

SKU: INF MIX 160-840 (100)

Price:
$195.00
($1.95/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 40
  • Length: ~14.14 in / 35.92 cm
  • Tip Style: Stepped Tip
  • Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
  • Sulzer System: C System
  • Connection Type: Bell

Infinity Bond 160-840 Static Mixer Nozzle with 40 Elements for Bell Connection Systems

The Infinity Bond 160-840 static mixing nozzle features 40 elements with an element diameter of 0.366 in (9.30 mm) to provide thorough blending of two-part adhesives, like epoxy and MMA. Its bell inlet design ports A and B materials separately into the mixer, reducing clogging and enabling easy cleanup by removing the mixer and wiping the manifold face. This disposable static mixer is designed for reliable performance across a variety of industrial adhesive applications. It is a comparable alternative to the Nordson 7700932 static mixing nozzle.

160-840 Static Mixer Nozzle Features and Benefits

  • High Element Count: 40 mixing elements ensure comprehensive and consistent adhesive blending.
  • Bell Inlet Design: Separate material ports minimize cross-contamination and clogging for improved reliability.
  • Durable Construction: Built for single-use applications to maintain contamination-free dispensing and simplify cleanup.
  • Optimal Element Diameter: 0.366 in (9.30 mm) element diameter delivers efficient mixing and flow balance.
  • Approximate Length: Measures roughly 14.14 in (35.92 cm) to fit standard dispensing systems with balanced flow.

Specifications

  • Part Number: 160-840
  • Mixer Type: Spiral
  • Connection Type: Bell
  • Number of Elements: 40
  • Element Diameter: 0.366 in / 9.30 mm
  • Length: ~14.14 in / ~35.92 cm
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for 160-840 Static Mixer Nozzle

Questions about Infinity Bond 160-840? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
