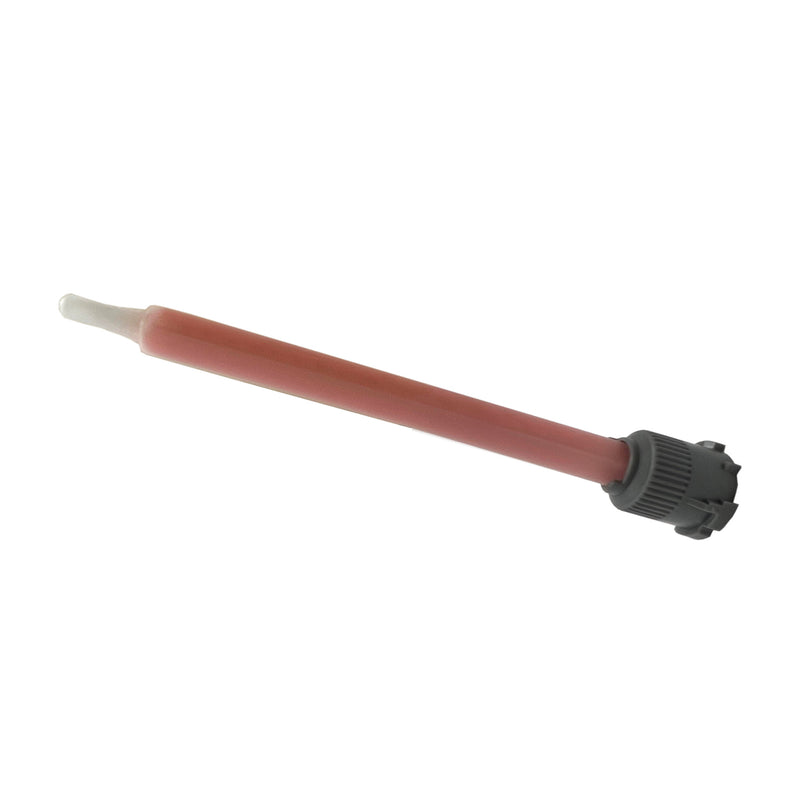

Infinity Bond MBQX 05-24L Quadro static mixer with twist-and-lock inlet and luer lock tip, featuring 24 elements and 5.3 mm diameter for 4:1 and 10:1 adhesive dispensing.
Roll over image to zoom in Click on image to zoom
Infinity Bond MBQX 05-24L Quadro static mixer with twist-and-lock inlet and luer lock tip, featuring 24 elements and 5.3 mm diameter for 4:1 and 10:1 adhesive dispensing.

Infinity Bond MBQX 05-24L Static Mixer

SKU: INF MIX MBQX-05-24L (100)

Price:
$95.00
($0.95/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 24
  • Length: ~4.803 in / 122 mm
  • Tip Style: Luer Lock
  • Cartridge Size: 25 ml, 50 ml, 75 ml
  • Sulzer System: B System
  • Connection Type: Sulzer B Series, Twist and Lock

Infinity Bond MBQX 05-24L Quadro Static Mixing Nozzles for 4:1 and 10:1 Dispensing

The Infinity Bond MBQX 05-24L static mixing nozzle features a compact Quadro design with 24 internal elements and a Luer Lock outlet tip for secure, precise dispensing. It uses a twist-and-lock connection and is compatible with 50 ml cartridges in 4:1 and 10:1 mix ratios. This mixer is ideal for high-performance dispensing of epoxies, MMAs, silicones, and polyurethanes. This mixer is a compatible alternative to the Sulzer MBQX 05-24L static nozzle.

Why Choose the MBQX 05-24L Adhesive Mixing Nozzle

  • Quadro Mixing Performance: 24 internal elements deliver consistent blending in a compact, high-efficiency design.
  • Luer Lock Outlet Tip: Provides secure, leak-resistant attachment to a wide range of dispensing needles and accessories.
  • Optimized for High-Ratio Adhesives: Designed specifically for 4:1 and 10:1 adhesive systems using 50 ml cartridges.
  • Twist-and-Lock Connection: Offers fast, secure attachment to dual cartridge systems for reliable dispensing.
  • Compact Nozzle Footprint: Shorter body allows for precise application close to the bond line.
  • Disposable Static Mixer Design: Single-use construction ensures clean operation with minimal cleanup.

Technical Specifications

  • Part Number: MBQX 05-24L
  • Mixer Type: Quadro
  • Connection Type: Twist and Lock
  • Outlet Tip: Luer Lock
  • Compatible Cartridge Sizes: 50 ml
  • Mix Ratios: 4:1 and 10:1
  • Number of Elements: 24
  • Inner Diameter: 0.209 in / 5.3 mm
  • Outer Diameter: ~0.287 in / 7.3 mm
  • Length: ~4.803 in / 122 mm
  • Outlet Orifice Diameter: ~0.041 in / 1.05 mm
  • Approx. Retained Volume: ~2.37 ml
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for MBQX 05-24L Mixer Tips

Questions about Infinity Bond MBQX 05-24L? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
