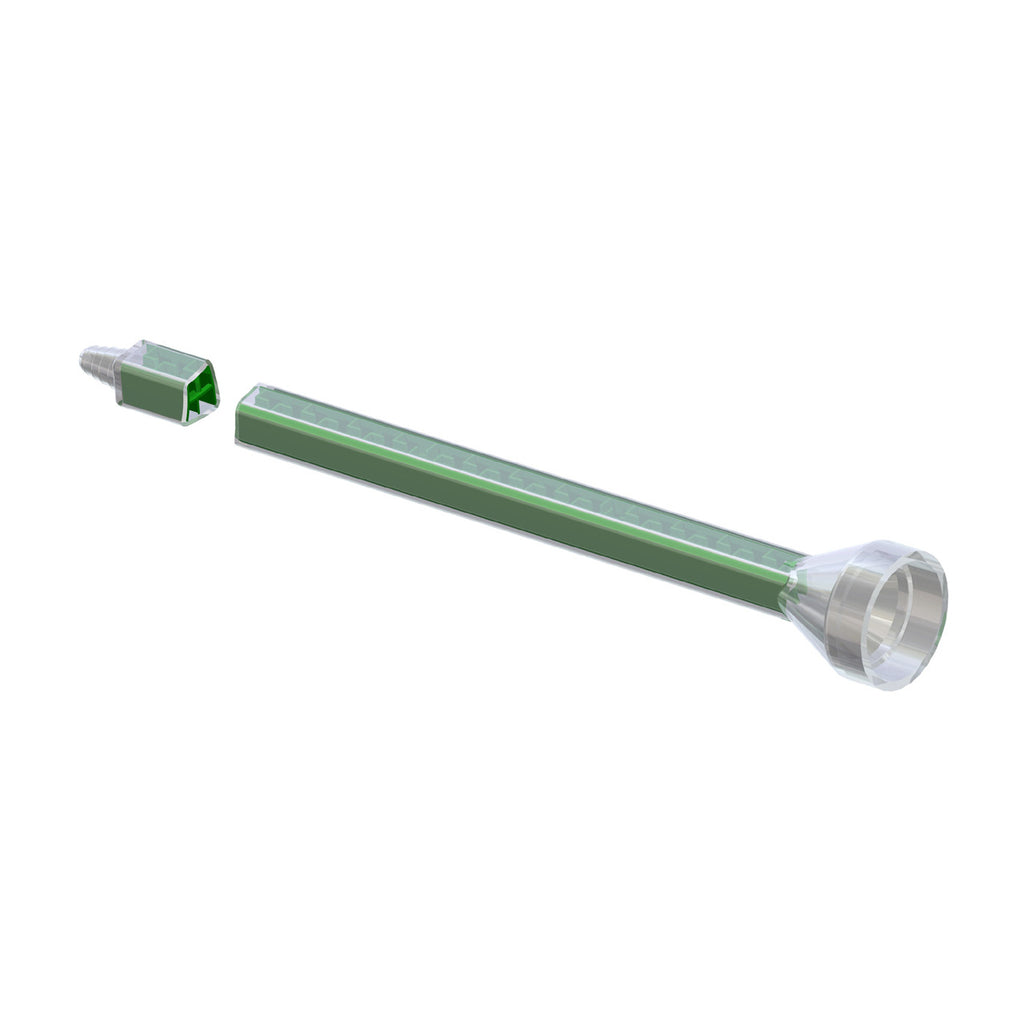

Infinity Bond MCQ 10-24T static mixer nozzle with bell inlet and stepped tip outlet, featuring a 10 mm diameter and 24-element Quadro design.
Roll over image to zoom in Click on image to zoom
Infinity Bond MCQ 10-24T static mixer nozzle with bell inlet and stepped tip outlet, featuring a 10 mm diameter and 24-element Quadro design.

Infinity Bond MCQ 10-24T Static Mixer Nozzle

SKU: INF MIX MCH-10-24T (1000)

Price:
$870.00
($0.87/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 24
  • Length: 5.79 in / 147 mm
  • Tip Style: Stepped Tip
  • Cartridge Size: 200 ml, 400 ml
  • Sulzer System: C System, Q System
  • Connection Type: Bell

Infinity Bond MCQ 10-24T Quadro Static Mixing Nozzle for C-System & Q-System Cartridges

The Infinity Bond MCQ 10-24T static mixer nozzle is a quadro mixer offering maximum two-part mixing in a compact design. It features 24 mixing elements with a 10 mm inner diameter and a length of 5.787 in (147 mm). The stepped tip allows users to cut the nozzle to adjust bead size. Compatible with 200 ml and 400 ml C-System and Q-System cartridges, it supports dispensing in 1:1 and 2:1 ratios and works well with methyl methacrylates (MMAs), epoxies, polyurethanes, and silicones. It delivers reliable, disposable mixing performance for various adhesive applications and is a comparable alternative to the Sulzer MCQ 10-24T static mixer nozzle.

MCQ 10-24T Adhesive Mixing Nozzle Key Benefits

  • Quadro Mixing Design: 24 elements provide thorough mixing for consistent, high-quality adhesive blends.
  • Versatile Cartridge Compatibility: Works with 200 ml and 400 ml C-System and Q-System cartridges for flexible dispensing.
  • Adjustable Stepped Tip: Allows users to customize bead size by trimming the outlet tip.
  • Supports Common Mix Ratios: Compatible with 1:1 and 2:1 dispensing ratios for a variety of adhesive systems.
  • Disposable Construction: Single-use design ensures contamination-free dispensing and easy cleanup.

Technical Specifications

  • Part Number: MCQ 10-24T
  • Mixer Type: Quadro
  • Connection Type: Bell
  • Outlet Tip: Stepped
  • Compatible Cartridge Sizes: 200 ml, 400 ml
  • Mix Ratios: 1:1 and 2:1
  • Number of Elements: 24
  • Inner Diameter: 0.394 in / 10 mm
  • Length: 5.79 in / 147 mm
  • System: C-System and Q-System Cartridges
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Comparable Alternatives for MCQ 10-24T Static Mixing Nozzles

Questions about Infinity Bond MCQ 10-24T ? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Official Supplier

Gluegun.com is an official supplier of Infinity Bond adhesives and equipment. We are the largest supplier of Infinity Bond glue guns, glue sticks, and structural adhesives.
