Infinity Bond MCH 06-32L Disposable Static Mixer Nozzle with Slip Luer Tip
Product Highlights
- Type: Static Mixer
- Brand: Infinity Bond
- Elements: 32
- Length: ~9.213 in / 234 mm
- Tip Style: Slip Luer
- Cartridge Size: 200 ml, 400 ml
- Sulzer System: C System
- Connection Type: Bell

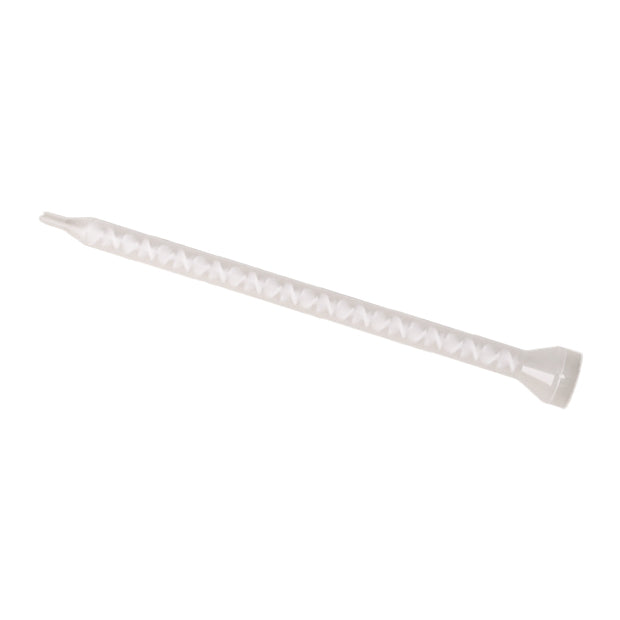

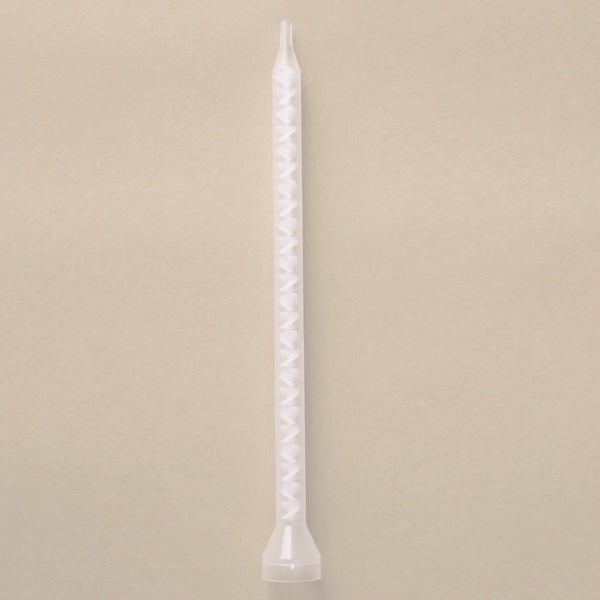

Infinity Bond MCH 06-32L Mixing Nozzle for MIXPAC C System Cartridges
The Infinity Bond MCH 06-32L is a disposable helix static mixing nozzle designed for use with MIXPAC C System 1:1 and 2:1 200 ml and 400 ml cartridges. The 32-element mixer features a bell connection and a Slip Luer outlet tip for attaching Luer-style dispensing accessories. It is designed for mixing and dispensing two-component adhesives, including methacrylates (MMAs), epoxies, and polyurethanes.
MCH 06-32L Static Mixing Tip Features and Benefits
- 32-Element Helix Mixer: Provides a consistent mixing path for two-component methacrylates (MMAs), epoxies, and polyurethanes.
- MIXPAC C System Design: Designed for use with 1:1 and 2:1 200 ml and 400 ml cartridges using a bell connection.
- Slip Luer Outlet: Allows Luer-style dispensing accessories to be attached for more controlled adhesive placement.
- Disposable Static Mixer: Provides a convenient single-use mixing and dispensing solution without requiring mixer cleanup.
- Two-Component Dispensing: Combines the adhesive components through the helix elements as material travels through the static mixing nozzle.
Infinity Bond MCH 06-32L Specifications
- Series: MCH
- Model: MCH 06-32L
- Mixer Type: Helix
- Connection Type: Bell
- System: MIXPAC™ C System
- Compatible With: 1:1/2:1 200/400 ml Cartridges
- Number of Elements: 32
- Inner Diameter: ~0.236 in / 6.0 mm
- Length: ~9.213 in / 234 mm
- Waste Volume: ~5.00 ml
- Outlet Tip: Slip Luer Tip
- Color: Clear
- Element Material: Polypropylene (PP)
- Housing Material: Polypropylene (PP)
Questions about Infinity Bond MCH 06-32L? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
