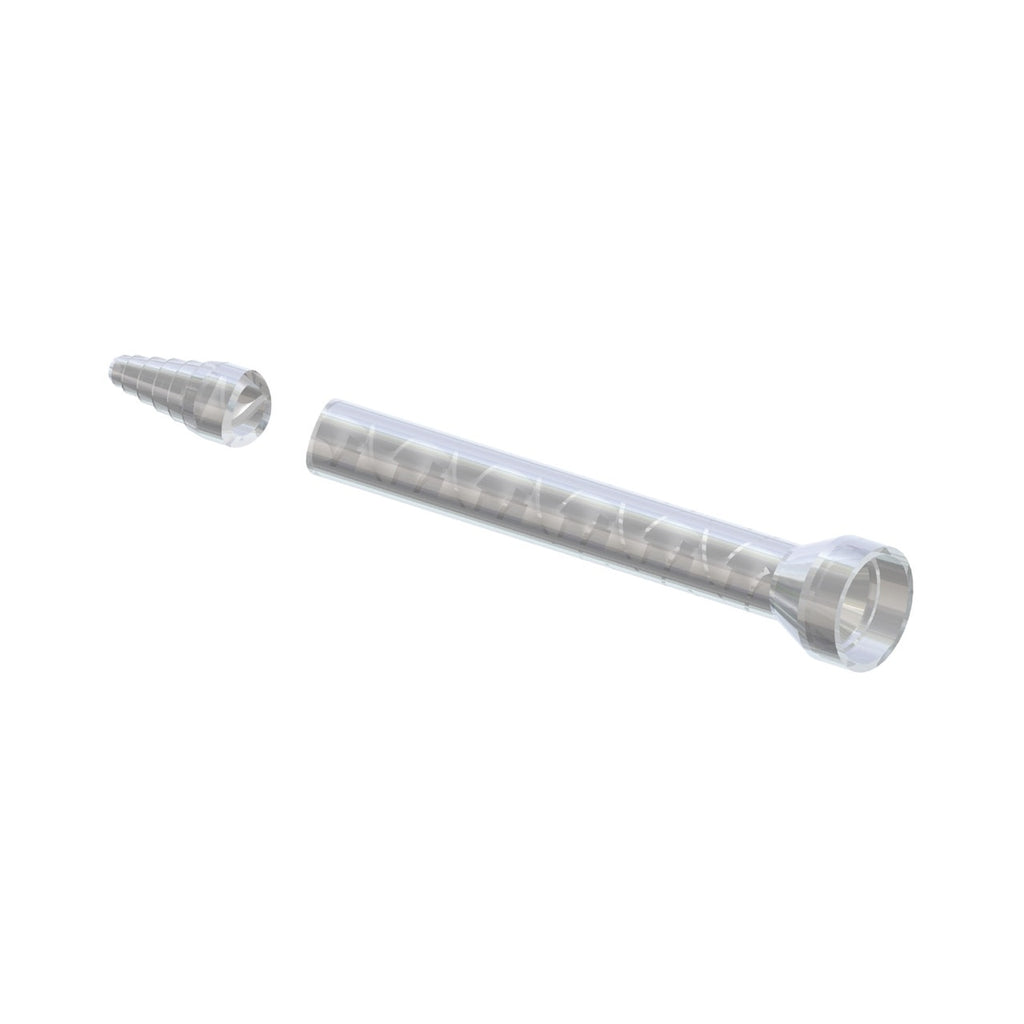

Single Sulzer MCH 13-18T static mixer nozzle with 18 elements, C System connection, stepped tip
Roll over image to zoom in Click on image to zoom
Single Sulzer MCH 13-18T static mixer nozzle with 18 elements, C System connection, stepped tip

Sulzer MCH 13-18T Static Mixer Nozzle

SKU: SULZER MCH 13-18T (1000)

Manufacturer Part #: 102435

Price:
$1,154.00
($1.15/each)
19 product options available.

Product Highlights

  • Type: Static Mixer
  • Brand: Sulzer
  • Elements: 18
  • Length: 9.134 in / 232 mm
  • Tip Style: Stepped Tip
  • Cartridge Size: 200 ml, 400 ml
  • Sulzer System: C System
  • Connection Type: Bell

Sulzer MCH 13-18T Static Mixing Nozzle - Helix Design for 1:1/2:1 Cartridges

The Sulzer MCH 13-18T static mixing nozzle features a Helix mixer type and Bell connection, designed for compatibility with the MIXPAC™ C System. This nozzle supports mix ratios of 1:1 and 2:1, compatible with 200/400 ml cartridges. With 18 mixing elements, an inner diameter of 0.512 in (13.0 mm), and a length of 9.134 in (232 mm), it ensures efficient mixing of two-part adhesives such as MMAs, epoxies, and polyurethanes. The stepped tip outlet style enhances precision in application, making it an ideal choice for high-performance mixing tasks in various industrial applications.

MCH 13-18T Features and Benefits

  • Efficient Helix Design: Provides thorough mixing for optimal adhesive performance, ideal for static mixing applications.
  • Compatible with MIXPAC™ C System: Ensures seamless integration with 200/400 ml cartridges for quick and easy setup.
  • Stepped Tip Outlet: Facilitates accurate dispensing of mixed materials, enhancing application precision.
  • Robust Polypropylene Construction: Durable and chemical-resistant, suitable for use with various adhesive chemistries including MMAs, epoxies, and polyurethanes.
  • High Element Count: With 18 elements, this static mixing nozzle ensures consistent and reliable mixing results.

Sulzer MCH 13-18T Specifications

  • Series: MCH
  • Model: MCH 13-18T
  • Mixer Type: Helix
  • Connection Type: Bell
  • System: MIXPAC™ C System
  • Compatible With: 1:1/2:1 200/400 ml Cartridges
  • Number of Elements: 18
  • Inner Diameter: 0.512 in / 13.0 mm
  • Length: 9.134 in / 232 mm
  • Waste Volume: 21.00 ml
  • Outlet Tip: Stepped Tip
  • Color: Clear
  • Element Material: Polypropylene (PP)
  • Housing Material: Polypropylene (PP)
  • Units/Box: 1000

Questions about Sulzer MCH 13-18T? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Sulzer MCH Mixers

Sulzer MCH Series mixers connect to 200–1500 mL cartridges via retaining nut and support 1:1 and 2:1 ratios. Ideal for manual dispensing with low resistance.

View all Sulzer MCH Mixers

Sulzer Part # Name Elements Length Tip Style
102414 Sulzer MCH 05-18T 184.803 in / 122 mmStepped Tip
102415 Sulzer MCH 05-24T 245.906 in / 150 mmStepped Tip
102416 Sulzer MCH 05-32T 327.402 in / 188 mmStepped Tip
102417 Sulzer MCH 06-18T 185.906 in / 150 mmStepped Tip
102418 Sulzer MCH 06-24T 247.362 in / 187 mmStepped Tip
102419 Sulzer MCH 06-32T 329.213 in / 234 mmStepped Tip
102421 Sulzer MCH 08-18T 187.008 in / 178 mmStepped Tip
102424 Sulzer MCH 08-24T 248.858 in / 225 mmStepped Tip
102425 Sulzer MCH 08-32T 3211.299 in / 287 mmStepped Tip
102427 Sulzer MCH 1008-18S 188.346 in / 212 mmTapered
102429 Sulzer MCH 10-18T 188.465 in / 215 mmStepped Tip
102430 Sulzer MCH 10-20D 208.465 in / 215 mmStraight
102432 Sulzer MCH 10-24D 2410.118 in / 257 mmStraight
102431 Sulzer MCH 10-24T 2410.906 in / 277 mmStepped Tip
102433 Sulzer MCH 10-32T 3213.858 in / 352 mmStepped Tip
102434 Sulzer MCH 13-12T 136.693 in / 170 mmStepped Tip
102435 Sulzer MCH 13-18T 189.134 in / 232 mmStepped Tip
102437 Sulzer MCH 13-24T 2411.575 in / 294 mmStepped Tip
102438 Sulzer MCH 13-32T 3214.921 in / 379 mmStepped Tip

Authorized Distributor

Gluegun.com is an authorized distributor of Sulzer Mixpac adhesive dispensing and mixing equipment, including cartridge systems, cartridge guns, and mixing nozzles.

View all Sulzer products
