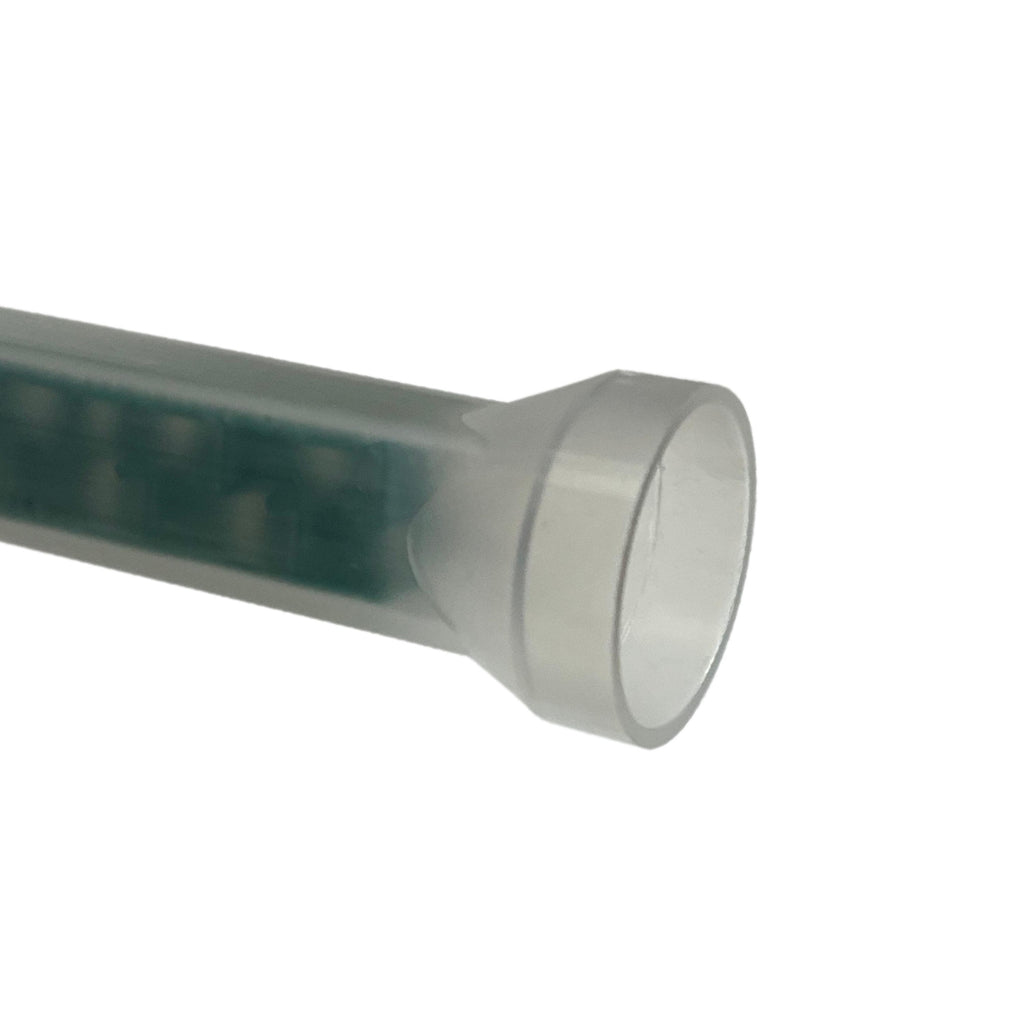

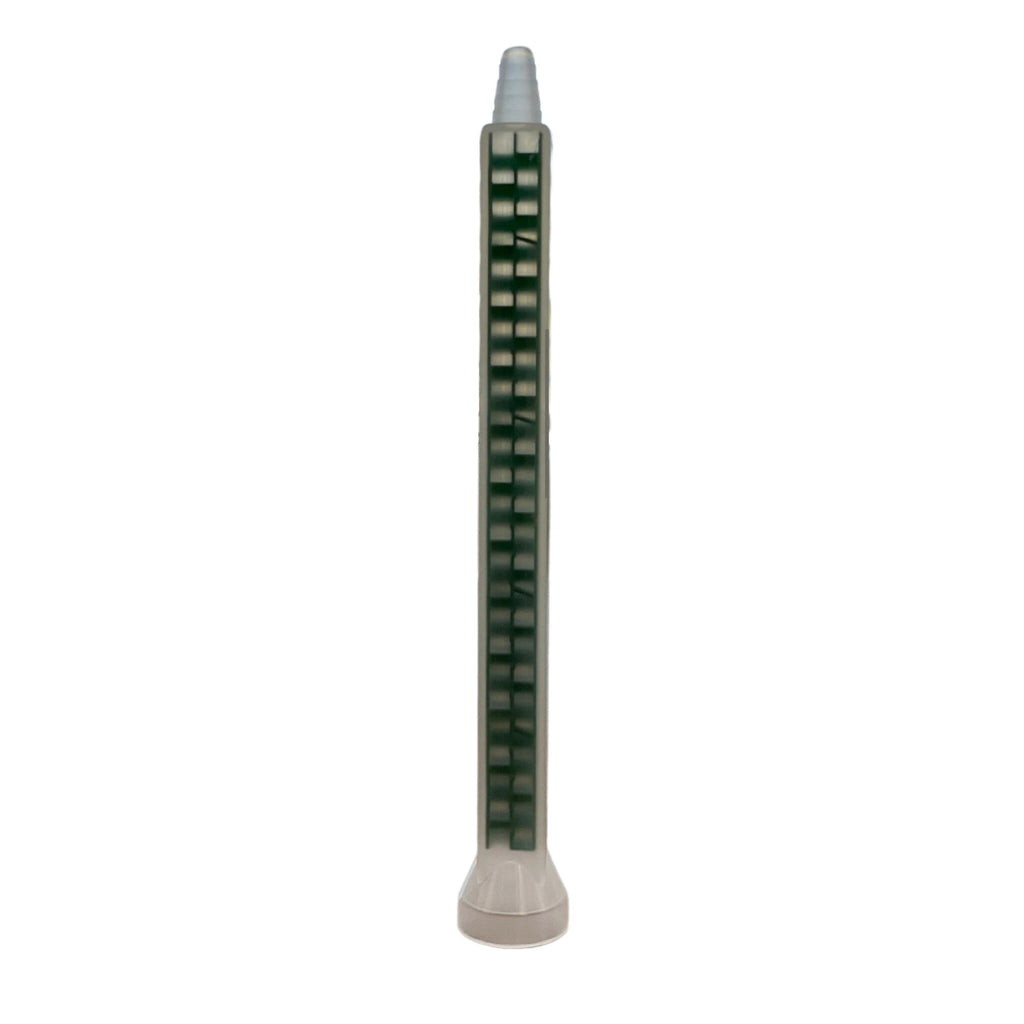

Infinity Bond MCQ 08-24T Quadro Static Mixer Nozzle
Product Highlights
- Type: Static Mixer
- Brand: Infinity Bond
- Elements: 24
- Length: 5.787 in / 147 mm
- Tip Style: Stepped Tip
- Cartridge Size: 200 ml, 400 ml
- Sulzer System: C System, Q System
- Connection Type: Bell
Infinity Bond MCQ 08-24T Quadro Static Mixer Nozzle for C-System and Q-System Cartridges
The Infinity Bond MCQ 08-24T static mixer nozzle features a compact Quadro design with 24 elements, an 8 mm inner diameter, and a length of 5.787 in (147 mm) for efficient two-part adhesive mixing in a smaller footprint. Its stepped outlet tip can be cut to achieve the desired bead size, offering flexibility for various bonding applications. Designed for use with 200 ml and 400 ml C-System and Q-System cartridges, this disposable mixer supports dispensing in 1:1 and 2:1 ratios and is compatible with chemistries such as methyl methacrylates (MMAs), epoxies, polyurethanes, and silicones. This model is a great alternative to the Sulzer MCQ 08-24T static mixer nozzle.
Key Features of the MCQ 08-24T Adhesive Mixing Nozzle
-
Quadro Mixing Technology: Square mixing elements ensure complete blending of two-part adhesives for consistent, high-quality results.
-
Versatile Cartridge Compatibility: Works with 200 ml and 400 ml C-System and Q-System cartridges for flexible application needs.
-

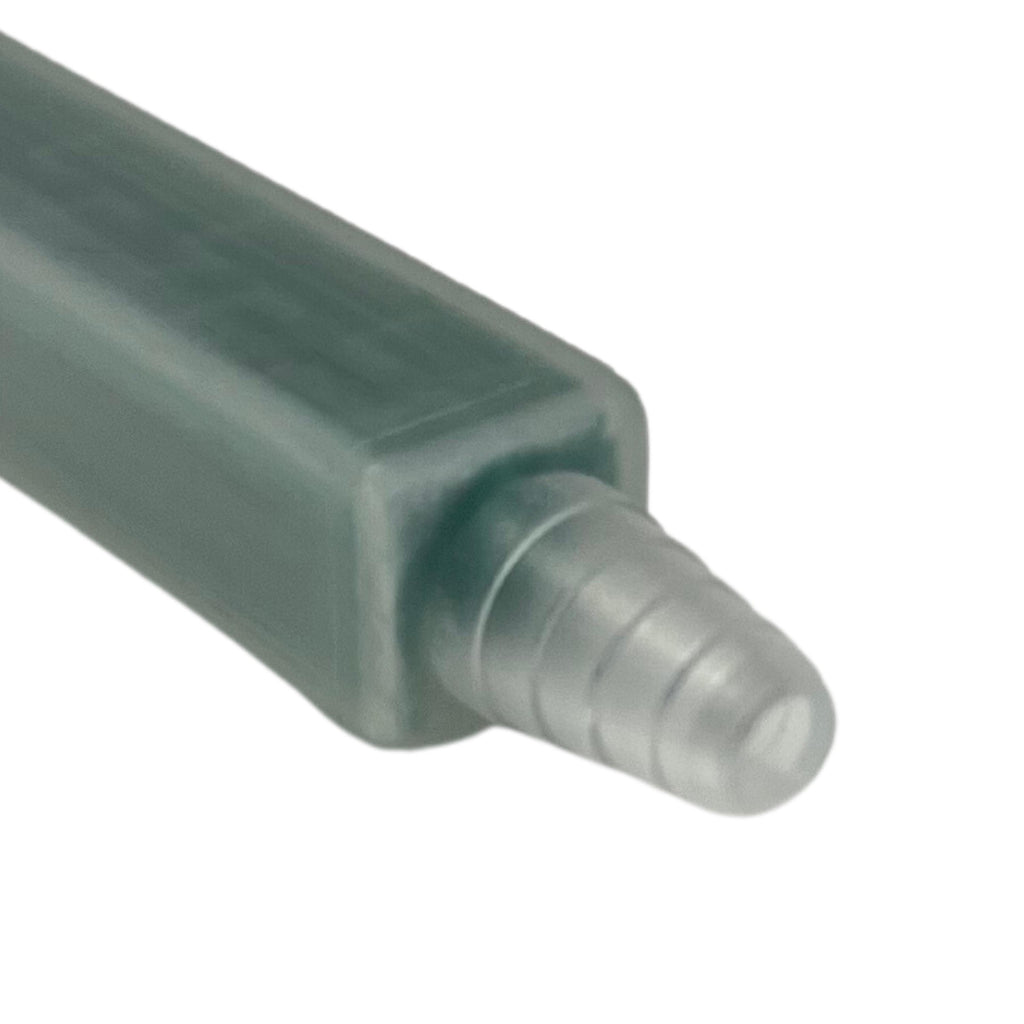

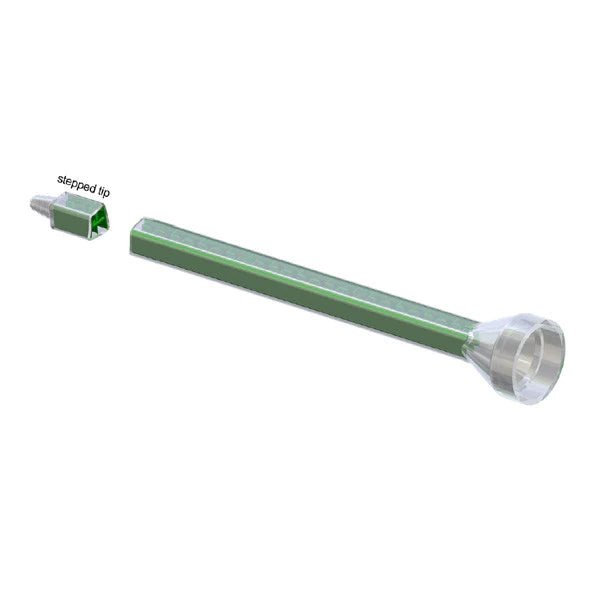

Adjustable Stepped Tip: Enables precise control over bead size by trimming the nozzle to suit your project requirements.
-
Reliable Ratio Support: Handles both 1:1 and 2:1 mix ratios with ease for a wide range of adhesive systems.
-
Optimized Size: Measures 5.787 in (147 mm) in length with an 8 mm inner diameter for balanced flow rate and mixing performance.
- Durable, Single-Use Construction: Disposable design helps maintain clean, contamination-free dispensing.
MCQ 08-24T Specifications
- Part Number: MCQ 08-24T
- Mixer Type: Quadro
- Connection Type: Bell
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 200 ml, 400 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 24
- Inner Diameter: 0.315 in / 8 mm
- Length: 5.787 in / 147 mm
- System: C-System and Q-System Cartridges
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)
Alternatives for MCQ 08-24T Static Mixer Nozzles
Questions about Infinity Bond MCQ 08-24T ? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
