Infinity Bond ME 10-32T High-Pressure Static Mixer Nozzle
Roll over image to zoom in Click on image to zoom
Infinity Bond ME 10-32T High-Pressure Static Mixer Nozzle

Infinity Bond ME 10-32T High-Pressure Static Mixer Nozzle

SKU: INF MIX ME 10-32T (800)

Price:
$1,170.00
($1.46/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 32
  • Length: 13.976 in / 355 mm
  • Tip Style: Stepped Tip
  • Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
  • Sulzer System: C System
  • Connection Type: Bell

Infinity Bond ME 10-32T Adhesive Mixing Nozzle for Dual Cartridge Systems

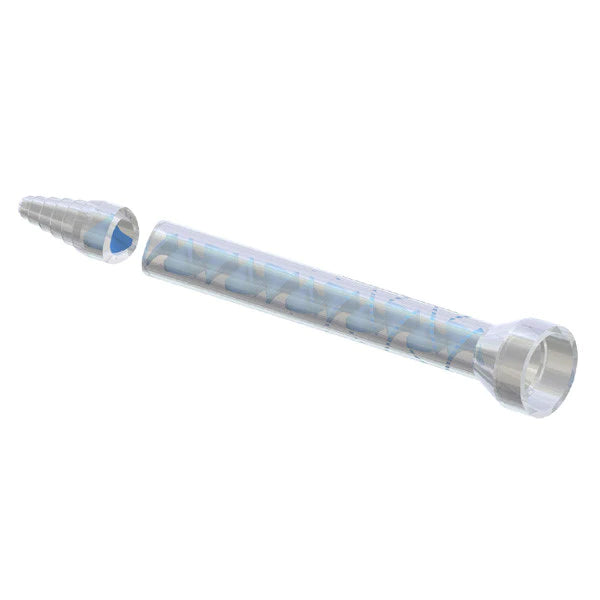

The Infinity Bond ME 10-32T static mixing nozzle features a helical design with 32 elements, a stepped outlet tip, and a bell connection for use with C-System cartridges. Measuring 13.976 in (355 mm) in length with a 0.394 in (10 mm) inner diameter, this mixer supports 1:1 and 2:1 mix ratios and integrates seamlessly with Meter Mix Dispense (MMD) equipment. It is ideal for high-pressure two-part adhesive dispensing with epoxies, polyurethanes, silicones, and methyl methacrylates (MMAs). This model is a compatible alternative to the Sulzer ME 10-32T static mixer nozzle.

Why Choose the ME 10-32T Static Mixing Tip

  • Precision Helix Design: 32 internal mixing elements ensure consistent blending of two-component adhesives.
  • Stepped Outlet Tip: Allows for adjustable bead size by trimming the nozzle to meet specific dispensing needs.
  • Reliable Bell Connection: Compatible with C-System cartridges for a secure, high-pressure seal.
  • Extended Length for Superior Mixing: Measures 13.976 in (355 mm), ideal for demanding or high-viscosity materials.
  • Engineered for MMD Systems: Integrates with Meter Mix Dispense (MMD) equipment for automated or manual adhesive applications.

ME 10-32T Mixer Nozzle Specifications

  • Part Number: ME 10-32T
  • Mixer Type: Helix
  • Connection Type: Bell (C-System)
  • Outlet Tip: Stepped
  • Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
  • Mix Ratios: 1:1 and 2:1
  • Number of Elements: 32
  • Inner Diameter: 0.394 in / 10 mm
  • Outlet Diameter: 0.118 in / 3 mm
  • Length: 13.976 in / 355 mm
  • Max Pressure: 22 bar
  • System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for ME 10-32T Mixer Tips

Questions about Infinity Bond ME 10-32T? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
