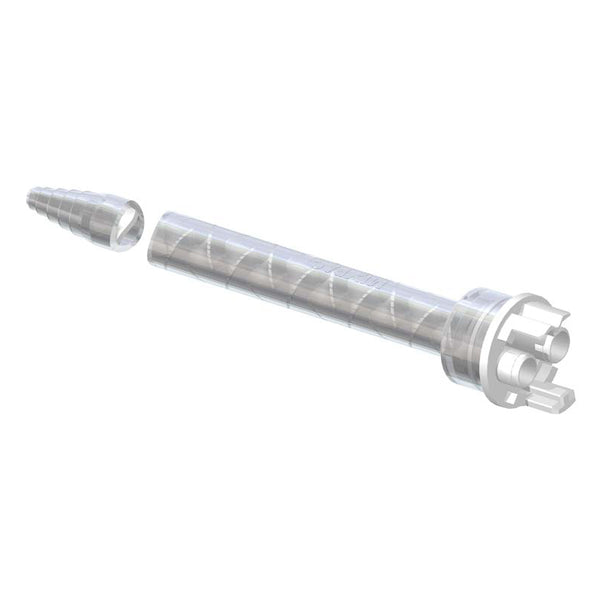

Infinity Bond MFH 10-24T static mixer nozzle with twist-lock inlet and stepped tip outlet, designed for 200ml and 400ml F System cartridges.
Roll over image to zoom in Click on image to zoom
Infinity Bond MFH 10-24T static mixer nozzle with twist-lock inlet and stepped tip outlet, designed for 200ml and 400ml F System cartridges.

Infinity Bond MFH 10-24T Static Mixer Nozzle

SKU: INF MIX MFH 10-24T (1000)

Manufacturer Part #: MFH 10-24T

Price:
$895.00
($0.89/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 24
  • Length: 11.142 in / 283 mm
  • Tip Style: Stepped Tip
  • Cartridge Size: 400 ml, 490 ml
  • Sulzer System: F System
  • Connection Type: Sulzer F Series

Infinity Bond MFH 10-24T Static Mixer Nozzle for F-System Cartridges

The Infinity Bond MFH 10-24T static mixer features 24 mixing elements, a 10 mm outer diameter, and an overall length of 11.142 in (283 mm). Designed for use with 400 ml and 490 ml F-System cartridges, this high-performance nozzle delivers consistent blending of two-part adhesives such as epoxies, silicones, urethanes, and acrylics. Its efficient internal geometry ensures thorough mixing with low waste and minimal pressure drop. Commonly used as an alternative to Sulzer MFH 10-24T.

Key Advantages of MFH 10-24T Static Mixer Nozzle

  • Optimized Mixing Design: 24 mixing elements provide reliable, homogeneous adhesive blending.
  • Precision Outer Diameter: 10 mm OD enables high flow with reduced backpressure.
  • Extended Length: At 11.142 in (283 mm), the nozzle offers thorough mixing and a clean bead.
  • Cartridge Compatibility: Built for Sulzer-style F-System 400 ml and 490 ml cartridges.
  • Versatile Adhesive Support: Ideal for 1:1 and 2:1 ratio epoxies, urethanes, silicones, and methyl methacrylates (MMA).
  • Consistent Application Results: Ensures accurate, repeatable adhesive performance.

Specifications

  • Part Number: MFH 10-24T
  • Mixer Type: Helix
  • Connection Type: Twist and Lock (F-System)
  • Outlet Tip: Stepped
  • Compatible Cartridge Sizes: 400 ml and 490 ml
  • Mix Ratios: 1:1 and 2:1
  • Number of Elements: 24
  • Inner Diameter: 0.394 in / 10.0 mm
  • Length: 11.142 in / 283 mm
  • System: F-System Cartridges
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Replacement Options for MFH 10-24T Mixer Nozzles

Questions about Infinity Bond MFH 10-24T? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Official Supplier

Gluegun.com is an official supplier of Infinity Bond adhesives and equipment. We are the largest supplier of Infinity Bond glue guns, glue sticks, and structural adhesives.

View all Infinity Bond products

Guaranteed Safe Checkout

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
