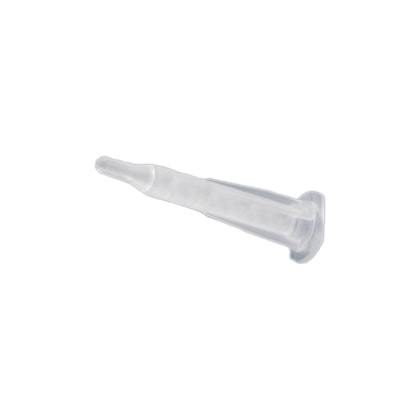

Single Nordson 7701458 static mixer nozzle with 12 elements, A System connection, slip luer
Roll over image to zoom in Click on image to zoom
Single Nordson 7701458 static mixer nozzle with 12 elements, A System connection, slip luer

Nordson 7701458 Static Mixer Nozzle

SKU: NORDSON 7701458 (190-612) (3000)

Manufacturer Part #: 7701458

Previous Part #: TAH 190-612

Price:
$3,025.00
($1.00/each)
13 product options available.

Product Highlights

Nordson 7701458 Static Mixing Nozzle for 50mL-160mL Cartridges

The Nordson 7701458 static mixing nozzle features a spiral mixer design, optimized for use with 50mL−160mL side by side cartridges. This high-performance nozzle incorporates a bayonet connection for secure attachment, supporting various adhesive chemistries including MMAs and epoxies. With a mix ratio of 1:1, this nozzle contains 12 mixing elements, each with a diameter of 0.250 in (6.35 mm), and a housing length of 3.9 in (9.9 cm). The slip luer outlet tip ensures precise dispensing, making it an ideal choice for effective adhesive mixing.

Nordson 7701458 Features and Benefits

  • Efficient Spiral Mixer Design: Provides thorough mixing for consistent application of adhesives.
  • Secure Bayonet Connection: Ensures reliable attachment to cartridges, facilitating quick and easy setup.
  • Compatible with Multiple Adhesives: Designed for use with MMAs, epoxies, and polyurethanes, enhancing versatility.
  • Optimal Dimensions: Features a compact length of 3.9 in (9.9 cm) with a 0.250 in (6.35 mm) element diameter for efficient use.
  • Accurate Slip Luer Outlet: Allows for precise adhesive application, minimizing waste and enhancing control.

Nordson 7701458 Specifications

  • Series: 190
  • Part Number: 7701458
  • Mixer Type: Spiral
  • Compatible With: 50mL−160mL Side x Side Cartridges
  • Number of Mixing Elements: 12
  • Element Diameter: 0.250 in / 6.35 mm
  • Housing Length: 3.9 in / 9.9 cm
  • Housing Inlet: Bayonet
  • Housing Outlet: Slip Luer
  • Retained Volume: 1.90 ml
  • Element: Acetal
  • Housing: Polypropylene

Questions about Nordson 7701458? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Nordson 190 Mixers

The Nordson 190 Series features a bayonet connection for 50 mL and 160 mL cartridges and supports four tip styles. Compatible with various adhesive chemistries.

View all Nordson 190 Mixers

Nordson Part # Name Elements Length Tip Style
7701408 Nordson 7701408 121.5 in / 3.8 cmSlip Luer
7701411 Nordson 7701411 122.1 in / 5.3 cmH-Tapered
7701416 Nordson 7701416 243.4 in / 8.6 cmH-Tapered
7701424 Nordson 7701424 163.4 in / 8.6 cmSlip Luer
7701436 Nordson 7701436 163.4 in / 8.6 cmH-Tapered
7701449 Nordson 7701449 174.4 in / 11.2 cmStepped Tip
7701453 Nordson 7701453 215.3 in / 13.5 cmStepped Tip
7701458 Nordson 7701458 123.9 in / 9.9 cmSlip Luer
7701487 Nordson 7701487 205.9 in / 15.0 cmSlip Luer
7701488 Nordson 7701488 205.9 in / 15.0 cmStepped Tip
7701510 Nordson 7701510 205.9 in / 15.0 cmH-Tapered
7701507 Nordson 7701507 205.3 in / 13.5 cmFull Bore
7701521 Nordson 7701521 205.3 in / 13.5 cmSlip Luer
