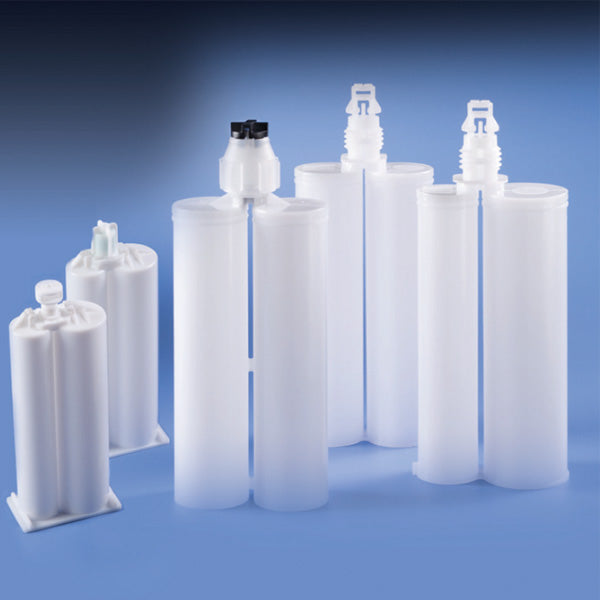

Nordson EFD 400 mL Side By Side Empty Adhesive Cartridges
Product Highlights
- Type: Cartridge System
- Brand: Nordson EFD
- Adhesive Ratio: 1:1
- Cartridge Size: 400 ml
Nordson EFD 400 mL Side By Side Empty Adhesive Cartridges Overview
The Nordson EFD 400mL cartridge system comes in a variety of 1:1 configurations to meet your specific dispensing needs. This high quality, the single-piece empty glue cartridge will fit almost all industry-standard cartridge dispenser.
Features and Benefits
- 1:1 ratio only
- Total volume capacity of 406mL
- High quality, sturdy one-piece design
- Fits industry standard dispensers
- Available from stock Open or closed outlet
- Solid Multi-Seal Piston or Multi-Seal Piston with Pre-stage Center Bleed Plug
Required Retaining Nut and Piston
Each empty glue cartridge comes with the standard Nordson EFD 7702598 Plastic Retaining Nut to hold on a static mixer.
Cartridge System Includes
- Nordson EFD 7702598
- Nordson 400ml 1:1 Pistons: 7702677
Cartridge System Outlet Options
Open End Outlet
- Pre-assembled with traditional nose plugs and retaining nuts
- Most are available in polypropylene (PP) or Nylon
Hermetically Sealed Closed End Outlet
- Features Nordson EFD patented "pry-off" closure
- Molded in one operation
- Cost-effective alternative to open end cartridges
Specifications
- Series: Side by Side
- Type: Cartridge System
- Size: 400 mL
- Ratio: 1:1
- Material: Polypropylene or Nylon
| Nordson SKU (PP) | Nordson SKU (Nylon) | Usable Volume | Configuration |
|
7703011 |
406mL |
Open-End Cartridge w/Installed Nose Plug & 3/8” Nut |
|
|
7703013 |
7028234* |
406mL** |
Open-End Cartridge w/Installed Nose Plug & 1/2” Nut |
|
7702965 |
7702968 |
406mL |
Closed-End Cartridge w/Protective Cap |
|
7702677* |
7702678* |
– |
Solid Multi-seal Piston |
|
7702757* |
7702759* |
– |
Multi-seal Piston w/Pre-staged Bleed Plug |
Recommended Static Mixing Nozzles
- Series 480 Disposable Square OptiMixers
- Series 160 Disposable Plastic Spiral Bell Mixer
- Series 260 Spiral Bell
- Series 180A Turbo Bell Series
- Series 280 Disposable Plastic Turbo (Square) Bell Mixer
- Series 281N Disposable Plastic High Flow Turbo (Square) Mixer
Recommended Dispensers
