Nordson EFD 260 Series Static Mixing Nozzle

SKU: NORDSON 7701742 (260N-805)

Manufacturer Part #: NORDSON 7701742

Previous Part #: TAH 260N-805


Price:
Sale price$2,035.00

Product Highlights

  • Type: Static Mixer
  • Brand: Nordson EFD
  • Connection Type: Bell
  • Adhesive Ratio: 1:1, 2:1
  • Cartridge Size: 200 ml, 400 ml, 600 ml

Nordson EFD 260 Series Static Mixing Nozzle Overview

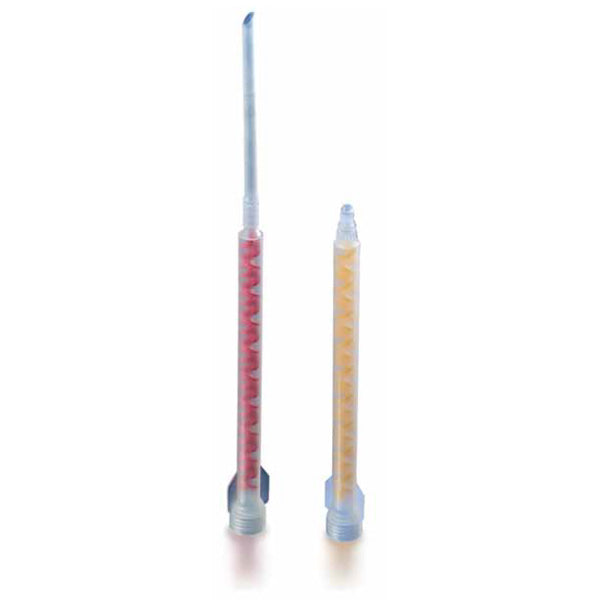

The Nordson EFD 260 Series disposable plastic spiral bell static mixing nozzle is available in both a Standard Bell and Integral Nut inlet connection. It is a polypropylene mixer with a variety of element and length options.

Gluegun.com offers a low price guarantee on the Nordson 260 Series glue mixer, contact us for questions or further volume discounts.

Features and Benefits

  • Versatile Inlet Connections: Available with both Standard Bell and Integral Nut Inlet connections, offering compatibility with a range of dispensing systems.
  • Durable Polypropylene Construction: Both the elements and housing are made of polypropylene, providing chemical resistance and durability in various applications.
  • Customizable Mixing: Multiple element configurations are available, allowing users to select the appropriate mixing efficiency for their specific application.
  • Accessory Compatibility: Compatible with various dispensing tips and plastic retaining nuts, enabling users to tailor the mixer to their precise dispensing needs.

Inlet Connection Options

  • Series 260 Spiral Bell Mixer
  • Series 260 Spiral Integral Nut Mixer

Specifications

  • Series: Nordson EFD Series 260
  • Type: Disposable Plastic Spiral Bell Mixer
  • Elements: Polypropylene
  • Housing: Polypropylene

Part # (AKA)

Mixing Elements

Element Diameter (inch/mm)

Outlet

Housing Length (inch/mm)

Retained Volume (ml)

7701749 (261-212)

12

0.502 / 12.8

Stepped

6.7 / 17.02

15

7701758 (261-218)

18

0.502 / 12.8

Stepped

9.1 / 23.11

19

7701770 (261-224)

24

0.502 / 12.8

Stepped

11.7 / 29.72

25

7701759 (261-218BL)

18

0.502 / 12.8

Barb Ext

14.1 / 35.8

24

7701742 (260N-805)

5

0.366 / 9.3

Tapered

4.9 / 12.4

7

7701745 (260N-812T)

12

0.406 - 0.355 / 10.5 - 8.5

Tapered

8.6 / 21.8

12

7701782 (261AN-218*)

18

0.502 / 12.8

Stepped

9.6 / 24.4

19

7701795 (261N-218BL)

18

0.502 / 12.8

Barb Ext

14.4 / 36.5

24

7701804 (262-616-01)

16

0.789 / 20.0

Full Bore

12.9 / 32.7

71

7701806 (262-620-01)

20

0.789 / 20.0

Full Bore

15.6 / 39.6

88

Accessories

  • Dispensing Tips
  • Plastic Retaining Nuts

Resources

Questions about this product? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Authorized Nordson EFD Supplier

Gluegun.com is an authorized distributor of Nordson EFD dispensers, cartridge systems, and static mixing nozzles.
