- Type: Static Mixer Shroud
- Brand: Sulzer Mixpac
- Mixer Type: Safety Shroud
- Shroud Thread Size: 7/8" 9 UNC
- Sulzer System: E System
About the Sulzer Mixpac SH 08-32-09 Static Mixer Metal Safety Shroud

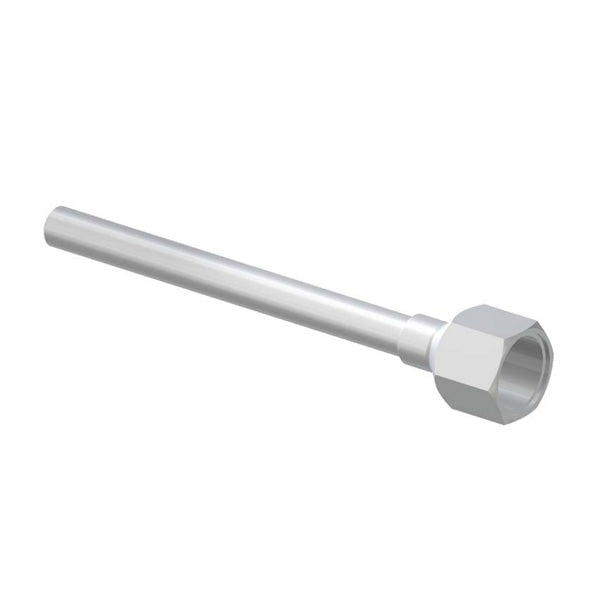

The Sulzer Mixpac SH 08-32-09 is an aluminum alloy, anodized finished metal shroud for use with the Sulzer Mixpac ME 08-32, MS 08-32 or equivalent static mixer nozzle. It attaches with a 7/8" thread and a 9 UNC coarse size.
Why Use Safety Shrouds with Static Mixers?
Safety shrouds should be used when dispensing two part adhesives through a static mixer from meter mix equipment. Meter mix equipment can create high pressure situations that can cause a static mixer to expand or even burst. Safety shrouds not only make dispensing with meter mix equipment safer, they insure the mixer does not expand causing adhesive to go around the mixing elements instead of through them. This insures optimal mixing and dispensing of your two part material.
- Sulzer ME 08-32 Static Mixer
- Sulzer MS 08-32 Static Mixer
- Equivalents to above
Sulzer Mixpac SH 08-32-09 Specifications
- Part Number: 114358 or SH 08-32-09
- Inner Diameter (mm): 12.2
- Outer Diameter (mm): 16
- Length (mm): 279
- Thread: 7/8" - 9 UNC
- Manufacturers Description: shroud for ME Mixer, aluminum alloy, anodized finish, nut across flats 27.0 mm (1 1/16"), standard fitting 7/8" - 9 UNC thread
Questions about this product? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
