Sulzer Mixpac Statomix ME Series Bell Mixers



$1,715.00
- +
SKU: 102448 or ME 05-24T

OVERVIEW

Sulzer Mixpac ME Series Mixer Overview

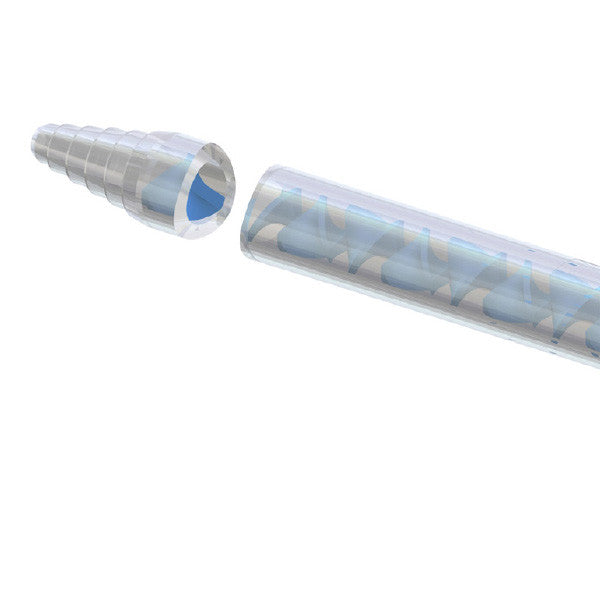

The Sulzer ME Series static mixer nozzles are a tried and true mixer for dispensing adhesive with meter mix equipment. The ME nozzle has a stepped tip which can be cut to adjust the dispensing volume and is available many different element and diameter configurations.

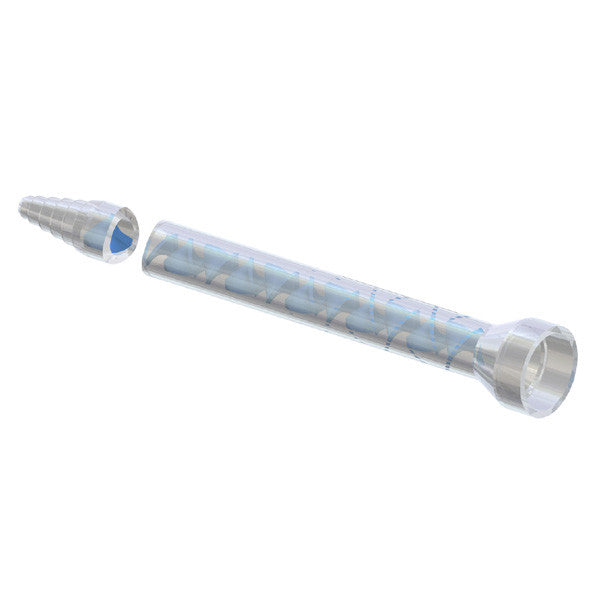

The ME static mixer uses a Bell connection and is one of the most popular two part machine mixers on the market today.

Contact us for bulk pricing or less than case quantities. As always, we offer a low price guarantee on the Sulzer ME static mixer.

Works With:

  • 1:1 Adhesives
  • 2:1 Adhesives
  • 4:1 Adhesives
  • 10:1 Adhesives

ME Static Mixer Configurations

  • Sulzer ME 05-24T
  • Sulzer ME 05-32T
  • Sulzer ME 06-24T
  • Sulzer ME 06-32T
  • Sulzer ME 06-48T
  • Sulzer ME 08-24T
  • Sulzer ME 08-32T
  • Sulzer ME 10-24T
  • Sulzer ME 10-32T
  • Sulzer ME 13-24T-02
  • Sulzer ME 13-24T
  • Sulzer ME 13-32T-02
  • Sulzer ME 13-32T

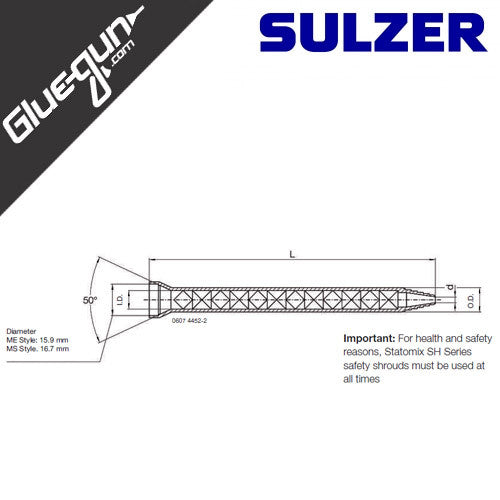

Note: The difference between the ME and MS Series static mixers is the  inner diameter of the bell mouth housing. The ME Series is equal to 15.9mm and the MS Series is equal to 16.7mm.

    ACCESSORIES

    Sulzer ME Series Accessories

    • Retaining Nut
    • Support Washer
    • Shrouds

          SPECS

          Sulzer Mixpac ME Series Nozzle Specifications

          Elements: Polyacetal (POM)

          Housing: Polypropylene (PP)

          Sulzer MixPac ME Series Specifications and Part Numbers

          Machine Mixer PP, with POM blue elements and stepped tip.



          Part number Article/Number Elements inner Ø(mm) outlet Ø mm L(mm) max pressure
          102448 ME 05-24T 24 5 1.5 149 33
          102449 ME 05-32T 32 5 1.5 188 33
          102450 ME 06-24T 24 6.4 1.8 186 30
          102451 ME 06-32T 32 6.4 1.8 235 30
          102452 ME 06-48T 48 6.4 2.4 334 30
          102453 ME 08-24T 24 8 2.4 223 27
          102454 ME 08-32T 32 8 2.4 289 27
          102456 ME 10-24T 24 10 3 276 22
          102457 ME 10-32T 32 10 3 355 22
          102460 ME 13-24T-02 24 13 4 350 17
          102459 ME 13-24T 24 13 4 293 17
          102462 ME 13-32T-02 32 13 4 453 17
          102461 ME 13-32T 32 13 4 378 17
