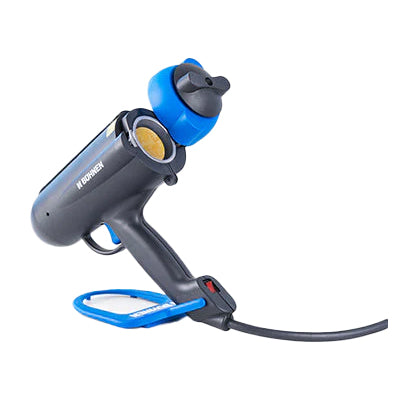

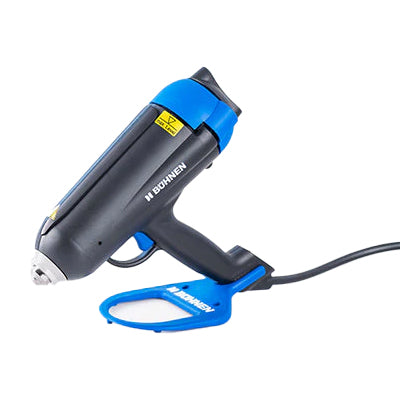

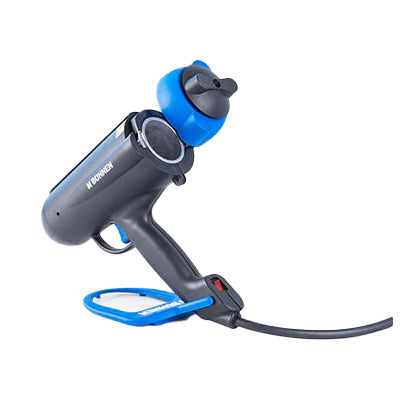

Buehnen HB 450 Spray Pneumatic Bulk Hot Melt Glue Gun

HB 450 Spray Pneumatic Glue Gun for Bulk Hot Melt Adhesives

The Buehnen HB 450 Spray is a pneumatic bulk hot melt glue gun designed for controlled spray application in industrial environments. Operating at a fixed temperature of 376°F (190°C), it provides consistent adhesive output without the need for adjustment.

This applicator is compatible with a wide range of hot melt adhesives—including EVA, polyolefins, and pressure sensitive adhesives (PSA)—and supports pellets (granules), pillows, and 43 mm slugs. The integrated pneumatic assist helps reduce trigger effort, improving comfort and control during extended use.

Note: Requires an external air regulator (not included).

Buehnen HB 450 Spray Hot Melt Glue Gun Features and Benefits

• Swirl Spray Application: Delivers a consistent spray pattern using a 1.5 mm (0.06 in) nozzle for even adhesive coverage
• Pneumatic-Assisted Operation: Reduces trigger effort for smoother spray control and improved operator comfort
• Fixed Temperature Operation: Maintains a constant 376°F (190°C) for reliable adhesive performance without adjustment
• Bulk Adhesive Compatibility: Works with pellets (granules), pillows, and 43 mm glue slugs for flexible application use
• Wide Adhesive Compatibility: Suitable for EVA, polyolefins, and pressure sensitive adhesives (PSA)
• Ergonomic Design: Balanced weight and comfortable grip reduce fatigue during extended use
• Fast Warm-Up Time: Ready to use in approximately 10 minutes to minimize downtime

Technical Specifications

• Model: HB 450 Spray
• Type: Bulk Hot Melt Glue Gun
• Compatible Adhesives: EVA, Polyolefins, Pressure Sensitive Adhesives (PSA)
• Adhesive Form: 43 mm Glue Slugs, Granules (Pellets), Pillows
• Melt Chamber Capacity: 6.7 oz (200 ml)
• Warm-Up Time: ~10 Minutes
• Output Capacity:
  • Slugs: Up to 7 lbs/hr (3.2 kg/hr)
  • Granules: Up to 2.9 lbs/hr (1.3 kg/hr)
• Nozzle: Swirl Spray Nozzle Ø 1.5 mm (0.06 in)
• Operating Temperature: 376°F (190°C) – Fixed
• Temperature Stability: ±45°F (±25°C)
• Operating Pressure: 21.7 – 87.0 psi (1.5 – 6.0 bar)
• Power Supply: 115V AC / 60 Hz
• Power Requirement: 600W
• Power Consumption: 2.6 A
• Cord Length: 9.8 ft (3 m)
• Weight: 3.20 lbs (1.45 kg)

Applications

• Spray adhesive application for packaging and assembly
• Carton and case sealing with spray patterns
• Surface bonding for foam, fabric, and textiles
• Product assembly requiring wide adhesive coverage
• Woodworking and panel lamination
• General industrial spray adhesive applications
