Infinity Bond 161-224 Disposable Static Mixer Nozzle
Product Highlights
- Type: Static Mixer
- Brand: Infinity Bond
- Elements: 24
- Length: 11.54 in / 292.58 mm
- Tip Style: Stepped Tip
- Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
- Sulzer System: C System
- Connection Type: Bell

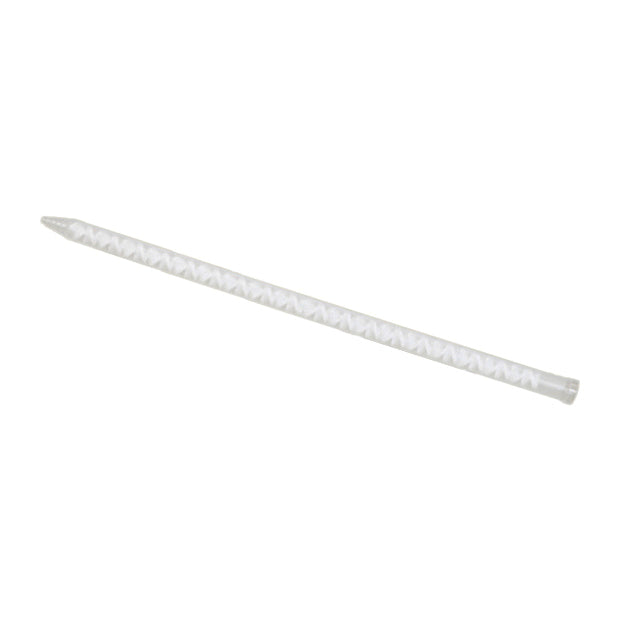

Infinity Bond 161-224 Spiral Static Mixer Nozzle – Bell Connection, 24 Elements
The Infinity Bond 161-224 is a spiral static mixing nozzle featuring a durable bell connection, 24 high-performance elements, and a total length of 11.54 in (292.58 mm) for reliable adhesive blending. Designed for 1:1 and 2:1 ratio dispensing from 200 ml, 400 ml, and 600 ml cartridges, it’s also compatible with Meter Mix Dispense (MMD) equipment. The stepped tip can be trimmed for adjustable bead sizes, making this nozzle ideal for MMAs, epoxies, polyurethanes, and silicones. It is a suitable alternative to the Nordson 7701010 (TAH 161-224), offering consistent performance at a lower cost.
161-224 Mixer Nozzle Performance Highlights
- Reliable Spiral Mixing: 24 precision-formed elements deliver thorough mixing for accurate 1:1 and 2:1 adhesive dispensing.
- Extended 11.54 in Length: Provides greater reach and mixing stability for manual and automated applications.
- Wide Compatibility: Designed for use with 200 ml, 400 ml, and 600 ml cartridges, as well as Meter Mix Dispense (MMD) equipment.
- Bell Housing Attachment: Standard bell-style connection works with common 7/8-9 or 7/8-14 retaining nuts.
- Stepped Outlet Tip: Allows users to cut the tip to control bead diameter for application flexibility.
- Durable Construction: Built from polypropylene and high-strength polyacetal for chemical resistance and long-term performance.
Technical Specifications
- Part Number: 161-224
- Mixer Type: Helix
- Connection Type: Bell
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 200, 400, 600 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 24
- Inner Diameter: 0.500 in / 12.70 mm
- Outer Diameter: 0.658 in / 16.71 mm
- Length: 11.54 in / 292.58 mm
- Outlet Orifice Diameter: 0.157 in / 4.00 mm
- Approx. Retained Volume: 4.2 ml
- Housing Material: Polypropylene
- Element Material: Polyacetal
- System: C-System Cartridges and Meter Mix Equipment
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More
