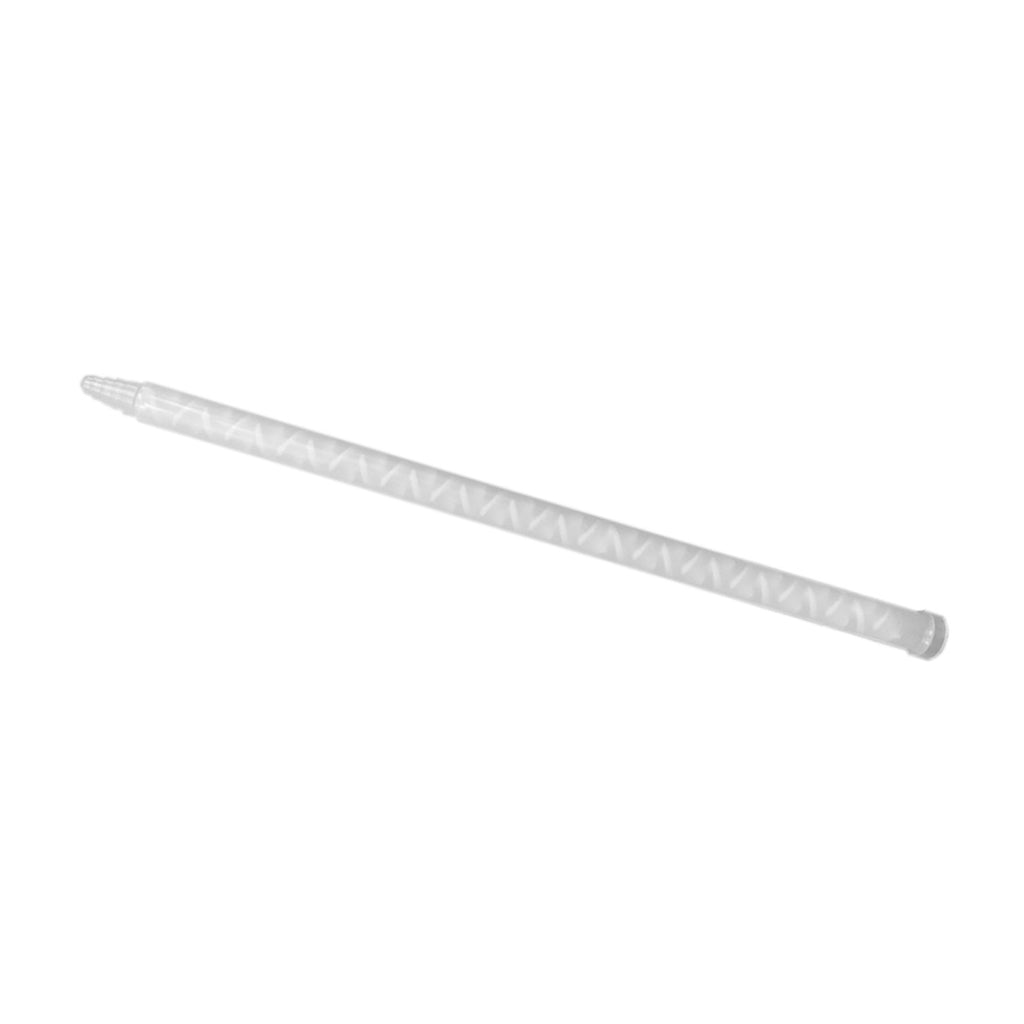

Infinity Bond 161-230 static mixer with bell inlet and stepped tip, featuring 30 elements and 12.65 mm diameter for direct A/B porting to reduce cleanup and prevent manifold clogging.
Roll over image to zoom in Click on image to zoom
Infinity Bond 161-230 static mixer with bell inlet and stepped tip, featuring 30 elements and 12.65 mm diameter for direct A/B porting to reduce cleanup and prevent manifold clogging.

Infinity Bond 161-230 Static Mixer Nozzle

SKU: INF MIX 161-230 (50)

Price:
$92.00
($1.84/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 30
  • Length: ~14.09 in / 358 mm
  • Tip Style: Stepped Tip
  • Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
  • Sulzer System: C System
  • Connection Type: Bell

Infinity Bond 161-230 Static Mixer with Bell Connection and Stepped Tip

The Infinity Bond 161-230 static mixer nozzle is designed for 1:1 and 2:1 dispensing using 200 ml, 400 ml, and 600 ml cartridges or meter mix systems. It features a bell connection and 30 helical mixing elements with a 0.497 in (12.65 mm) inner diameter, housed in a durable polypropylene body. The 161-230 measures roughly 14.09 inches (358 mm) in length and includes a stepped outlet tip for easy bead size adjustment. This model is ideal for two-part adhesives such as epoxies, polyurethanes, silicones, and MMAs, and serves as a suitable replacement for Nordson 7701028 (TAH 161-230) and Sulzer MCH 13-32T.

Key Features of the Infinity Bond 161-230 Static Mixer Nozzle

  • Optimized Mixing Performance: Contains 30 precision-engineered helical elements for thorough blending of two-part adhesives.
  • Adjustable Bead Control: Stepped outlet tip allows for easy trimming to achieve desired bead size.
  • Reduced Cleanup Downtime: Dual-port manifold design keeps A and B materials separate until inside the nozzle, preventing clogging.
  • Reliable Bell Connection: Standard bell inlet ensures secure attachment to cartridges or meter mix valves.
  • Compact, Long-Form Design: Total length of ~14.09 in (358 mm) supports controlled, consistent adhesive flow.
  • Durable Construction: Features acetal mixing elements and a polypropylene housing for chemical resistance and long-term use.

161-230 Mixer Nozzle Specifications

  • Part Number: 161-230
  • Mixer Type: Helix
  • Connection Type: Bell
  • Outlet Tip: Stepped
  • Compatible Cartridge Sizes: 200, 400, 600 ml
  • Mix Ratios: 1:1 and 2:1
  • Number of Elements: 30
  • Inner Diameter: 0.497 in / 12.65 mm
  • Length: ~14.09 in / 358 mm
  • Housing Material: Polypropylene
  • Element Material: Acetal
  • System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More

Comparable Replacements for 161-230 Static Mixer Nozzles
