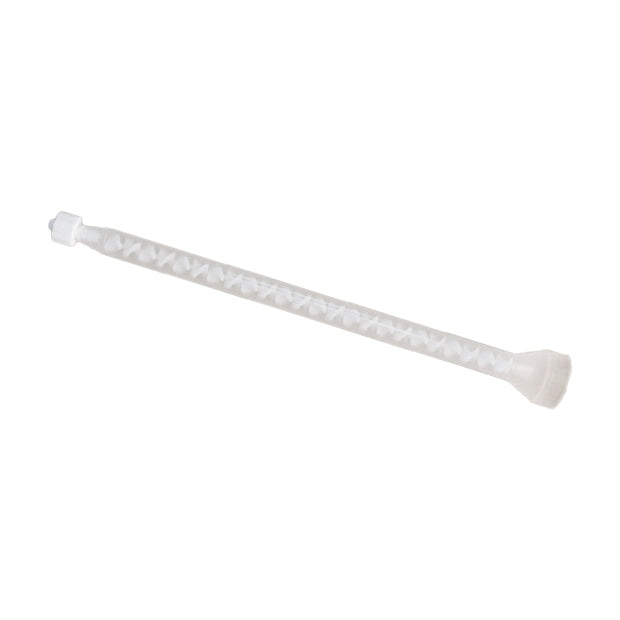

Infinity Bond MCH 06-24LL static mixer with bell inlet and luer lock tip, featuring 24 elements for 1:1 and 2:1 adhesives in 200, 400, and 600 cc cartridges or meter mix systems.
Infinity Bond MCH 06-24 Static Mixer with Luer Lock Included
Static Mixer Nozzle Luer Lock Attachment
Static mixer bell attachment
Taper tip attached to luer lock attachement
Roll over image to zoom in Click on image to zoom
Infinity Bond MCH 06-24LL static mixer with bell inlet and luer lock tip, featuring 24 elements for 1:1 and 2:1 adhesives in 200, 400, and 600 cc cartridges or meter mix systems.
Infinity Bond MCH 06-24 Static Mixer with Luer Lock Included
Static Mixer Nozzle Luer Lock Attachment
Static mixer bell attachment
Taper tip attached to luer lock attachement

Infinity Bond MCH 06-24LL Static Mixer Nozzle with Luer Lock Included

SKU: INF MIX MCH 06-24LL (1000)

Price:
$1,250.00
($1.25/each)

Product Highlights

  • Type: Static Mixer
  • Brand: Infinity Bond
  • Elements: 24
  • Length: 7.47 in / 189.7 mm
  • Tip Style: Luer Lock Included
  • Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
  • Sulzer System: C System
  • Connection Type: Bell

Infinity Bond MCH 06-24LL Static Mixing Nozzle with Pre-Attached Luer Lock Tip

The Infinity Bond MCH 06-24LL is a static mixing nozzle designed for precision adhesive dispensing with 200 ml, 400 ml, and 600 ml cartridges or Meter Mix Dispense (MMD) equipment. It features 24 mixing elements, a bell connection, and a pre-attached white nylon Luer Lock outlet, eliminating the need for separate tip installation. With a 0.251 in (6.38 mm) inner diameter and 7.47 in (189.7 mm) length, this mixer provides clean, consistent blending of two-part adhesives.

Infinity Bond MCH 06-24LL Mixing Nozzle Benefits

  • Pre-Attached Luer Lock Tip: Comes ready to use—no need for separate assembly or adapters when connecting to dispensing needles or fittings.
  • Efficient Helix Mixing: 24 internal elements ensure complete blending of two-part adhesives for consistent performance.
  • Bell Housing Inlet: Securely connects to 200, 400, and 600 ml cartridges or Meter Mix Dispense (MMD) equipment in 1:1 and 2:1 mix ratios.
  • Durable Construction: Made from polypropylene with high-strength polyacetal mixing elements and nylon Luer Lock for chemical resistance.

Specifications

  • Part Number: MCH 06-24LL
  • Mixer Type: Helix
  • Connection Type: Bell
  • Outlet Tip: Luer Lock (pre-attached)
  • Compatible Cartridge Sizes: 200, 400, and 600 ml cartridges
  • Mix Ratios: 1:1 and 2:1
  • Number of Elements: 24
  • Inner Diameter: 0.251 in / 6.38 mm
  • Outer Diameter: 0.383 in / 9.73 mm
  • Length: 7.47 in / 189.7 mm
  • Approx. Retained Volume: 4.2 ml
  • Housing Material: Polypropylene
  • Element Material: Polyacetal
  • Luer Lock Material: Nylon
  • System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More
