- Type: Static Mixer
- Brand: Infinity Bond
- Elements: 20
- Length: 5.85 in / 149 mm
- Tip Style: Stepped Tip
- Cartridge Size: 50 ml, 25 ml, 75 ml
- Sulzer System: A System
- Connection Type: Bayonet

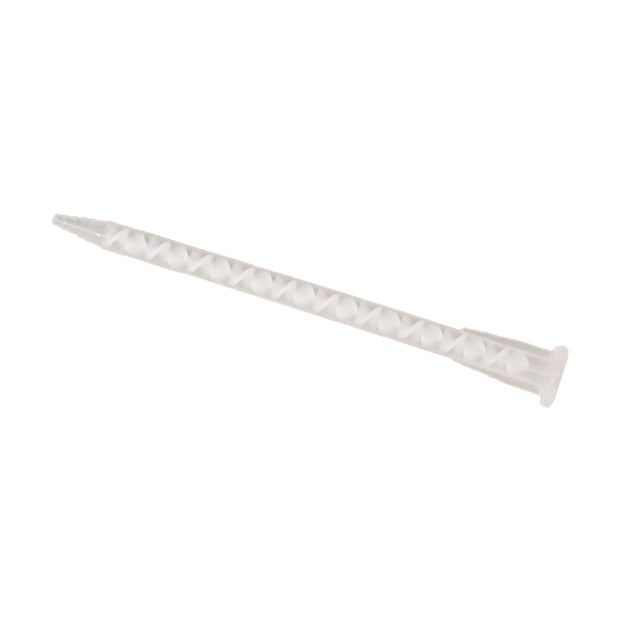

Infinity Bond MAH 06-21T Static Mixing Nozzle for 50 ml Cartridges
The Infinity Bond MAH 06-21T is a high-performance static mixing nozzle designed for 50 ml cartridges in 1:1 and 2:1 ratios. It features a helix-style design with 20 mixing elements and a stepped tip outlet, providing consistent, bubble-free blending of two-part adhesives like epoxies, acrylics, and urethanes. With a secure bayonet connection and 5.85 in (149 mm) length, this nozzle delivers clean, efficient performance in demanding applications. This model is commonly used as a cost-effective alternative to the Sulzer MAH 06-21T, offering similar performance and bayonet compatibility.
MAH 06-21T Disposable Mixing Tip Benefits
- Reliable Helix Mixing: 20 internal elements ensure thorough blending of two-part chemistries for consistent results.
- Bayonet (Twist and Lock) Connection: Enables fast, secure attachment to standard 50 ml cartridges in 1:1 and 2:1 ratios.
- Stepped Outlet Tip: Offers precise, mess-free dispensing and easy trimming for fine control.
- Compact and Efficient: 5.85 in (149 mm) length minimizes adhesive waste while maintaining excellent mixing performance.
- Versatile Compatibility: Ideal for dispensing epoxies, acrylics, urethanes, and other reactive adhesives.
Infinity Bond MAH 06-21T Specifications
- Part Number: MAH 06-21T (Previous: IB 0620)
- Mixer Type: Helix
- Connection Type: Bayonet (Twist and Lock)
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 50 ml Cartridges
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 20
- Inner Diameter: 0.250 in / 6.35 mm
- Outer Diameter: 0.343 in / 8.7 mm
- Length: 5.85 in / 149 mm
- Housing Outlet Diameter: 0.059 in / 1.5 mm
- Approx. Retained Volume: 3 ml
- Housing Material: Polypropylene
- Element Material: (Not specified)
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More
