Disposable Static Mixing Nozzles
Shop Static Mixer Nozzles for Two-Part Adhesives
Static mixer nozzles, also known as static mixer tubes or static mixing tips, are used to fully mix two-part materials into a homogenous mixture before they are dispensed. They are attached to adhesive cartridges or meter mixing machines, depending on the application.
Nozzle mixers can also come in a wide variety of configurations, but at Gluegun.com, we have an expansive collection to choose from. You can find the top brands for static mixer nozzles as well as off-brand options for low prices. Compare quality, cost, and performance to find a glue mixing nozzle that works for you. Our team of experts can also recommend the best static mixing nozzle for your application when you contact us.
Ask a question about Disposable Static Mixing Nozzles
Questions about these products? Not sure which is right for your application? Submit your questions and our adhesive experts will get you answers right away. We're here to help.
Related Categories
Sulzer Static Mixing Nozzles
From their A-System to F-System, we carry a large selection of Sulzer Mixpac (Medmix) static mixing nozzles to meet your specific needs.
View All 202 Products
Nordson Static Mixing Nozzles
Nordson EFD static mixing nozzles include a wide range of mixers for various applications. Shop now.
View All 125 Products
Infinity Bond Static Mixer Nozzles
Get the mixing nozzle you need for the right price. Shop our collection of Infinity Bond static mixer nozzles that are compatible with the top brands but usually for a lower price tag.
View All 55 Products
More Information About Static Mixing Nozzles
A static mixer nozzle is attached to a two-part cartridge filled with the A side and B side of the adhesive. The adhesive is then forced out of both sides with a plunger, and the two parts meet and mix in the static mixer nozzle. The components combine as they makes their way through the mixer until a fully homogenous solution comes out of the end of the nozzle.
Disposable static mixers typically use a series of curves or steps called "elements" to mix two-part materials. As the part A and part B adhesives make their way down the static mixer tube past these elements, they are fully combined.
Some disposable static mixer nozzles have more elements for difficult to combine adhesives or to ensure total coalescence. Turbo or Quadro mixers are a type of static mixing nozzle that use efficient element designs allowing for better mixing in a shorter nozzle. Typically, these static mixers have a square body and are slightly more expensive. The major benefit to using them is that the design allows users to work closer to their substrates.
There are a number of static mixing tips available to meet different application needs. Here are a few of the most common.
- Stepped Tip: This static mixer tip is layered and can be cut at different intervals to control the bead size being dispensed. This is probably the most common type of nozzle tip.
- Tapered Tip: This tip tapers to a small cone. Unlike the stepped tip, it is not meant to be cut to change the bead size.

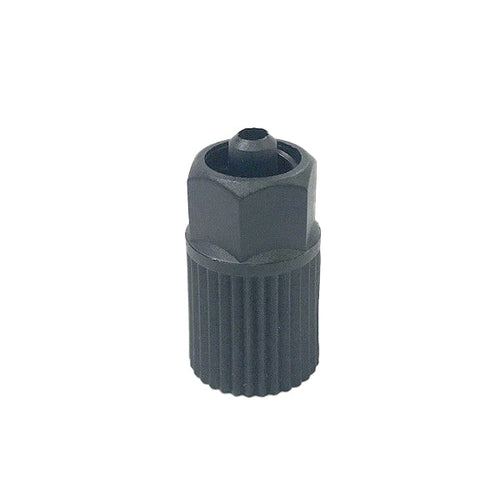

- Luer Lock Tip: This static nozzle tip is used to attach adhesive needles or other attachments for precision or specialty dispensing.
The number of different glue mixing nozzles available can be overwhelming. To help, we are sharing a few recommendations for the top static mixing nozzles based on specific applications and properties.
- For 50ml cartridges- Infinity Bond Standard 50ml Static Mixer Nozzle
- For 200ml, 400ml, or 600ml cartridges- Infinity Bond 160-824 Static Mixer Nozzle
- For A or Q Sulzer Systems- Sulzer Mixpac MAH Mixing Tips
- Turbo static mixer nozzle- Sulzer Mixpac MCQ 07-24T Turbo Static Mixer
- Quadro static mixer nozzle- Infinity Bond MCQ 08-24T Quadro Mixer Nozzle
You can also contact one of our adhesive dispensing experts to get a recommendation on the best static mixing nozzle for your needs.
