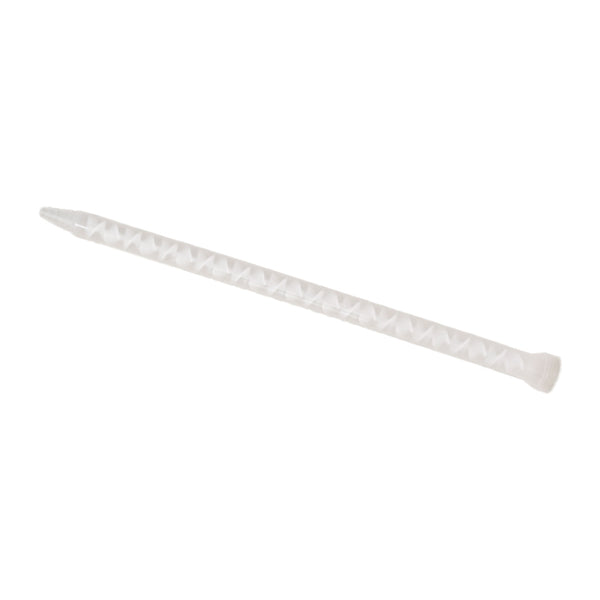

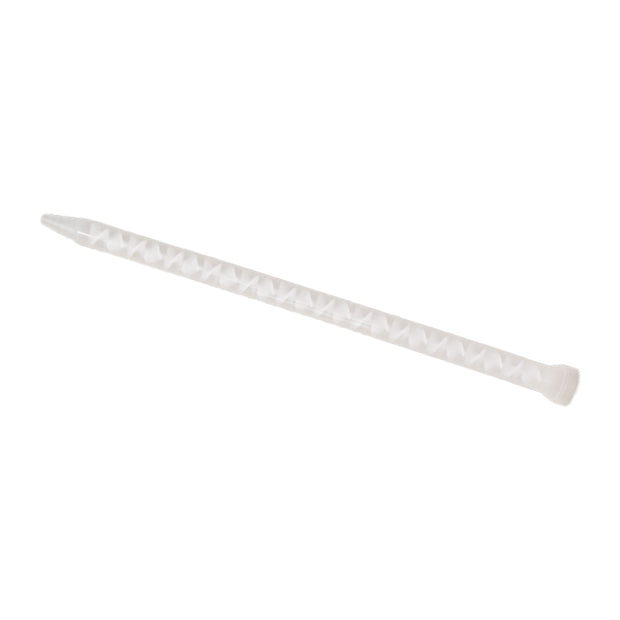

Infinity Bond MCH 13-24T Disposable Static Mixer Nozzle
Product Highlights
- Type: Static Mixer
- Brand: Infinity Bond
- Elements: 24
- Length: 11.54 in / 293 mm
- Tip Style: Stepped Tip
- Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
- Sulzer System: C System
- Connection Type: Bell
Infinity Bond MCH 13-24T Static Mixing Nozzle for 1:1 and 2:1 Adhesives
The Infinity Bond MCH 13-24T is a high-performance static mixing nozzle designed for use with 200 ml, 400 ml, and 600 ml cartridges in 1:1 and 2:1 ratios. It features a helix-style internal mixer with 24 elements, a stepped outlet tip, and an overall length of 11.54 in (293 mm) for precision adhesive application. With a bell-style connection, this nozzle is compatible with both dual cartridge systems and low-pressure meter mix equipment. The MCH 13-24T offers reliable mixing for a wide range of two-part adhesives, including epoxies, polyurethanes, and methyl methacrylates. Comparable to Sulzer MCH 13-24T and Sulzer MS 13-24T, this nozzle is a cost-effective, USA-made alternative built to industrial standards.
Key Benefits of the MCH 13-24T Static Mixing Nozzle for Adhesives
- Precision Helix Mixing: 24-element helix design ensures thorough and consistent blending of two-component adhesives.
- Bell Connection: Compatible with 200 ml, 400 ml, and 600 ml cartridges using a standard bell-style attachment.
- Stepped Tip Outlet: Cut-to-size tip allows users to adjust bead diameter during dispensing.
- Wide Ratio Support: Designed for use with 1:1 and 2:1 adhesive mix ratios in both cartridge-based and meter mix systems.
- Durable Construction: Features a polypropylene housing and polyacetal elements for strength and chemical resistance.
- Made in the USA: Manufactured to high quality standards for reliable performance and reduced cost per use.
Specifications
- Part Number: MCH 13-24T
- Mixer Type: Helix
- Connection Type: Bell
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 200, 400, 600 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 24
- Inner Diameter: 0.512 in / 13.0 mm
- Outer Diameter: 0.658 in / 16.7 mm
- Length: 11.54 in / 293 mm
- Outlet Orifice Diameter: 0.157 in / 4.0 mm
- Approx. Retained Volume: 4.2 ml
- Housing Material: Polypropylene
- Element Material: Polyacetal
- System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More
Comparable to Popular Static Mixing Nozzles
