Infinity Bond MCH 10-18T Disposable Static Mixer Nozzle
About the MCH 10-18T Static Mix Nozzle from Infinity Bond

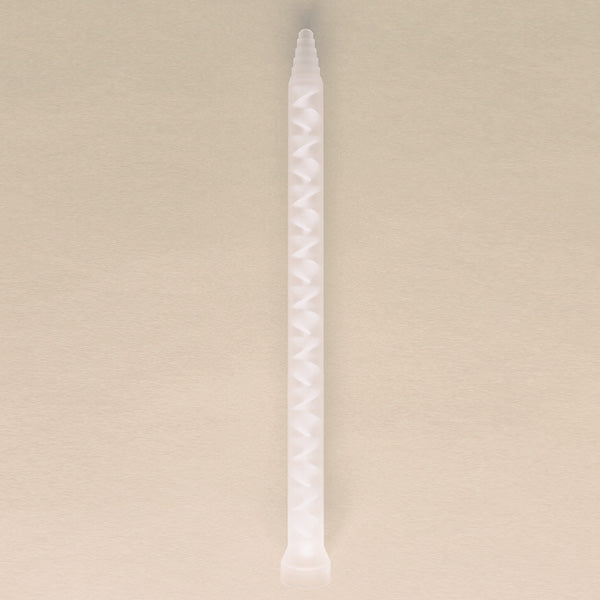

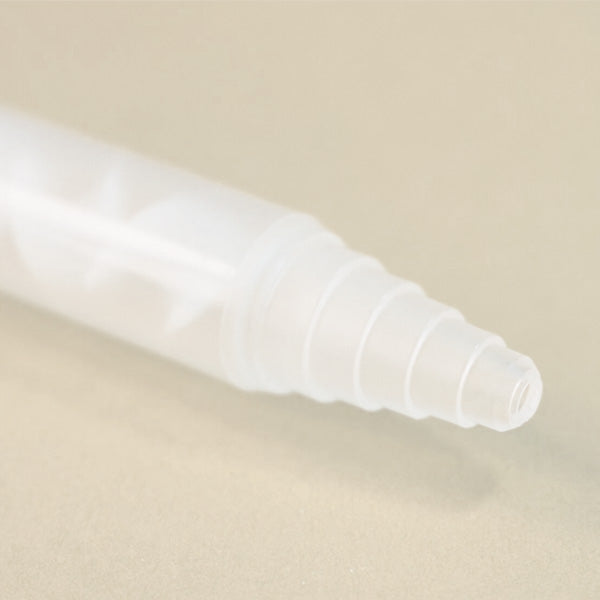

The Infinity Bond MCH 10-18T disposable static mix nozzle is a premium mixer to be used when mixing 1:1 or 2:1 adhesives. This mixer has 18 mixing elements and is great for high volume cartridges or meter mix equipment. The MCH 10-18T static mixer has a stepped tip that allows users to cut the end of the nozzle at different increments to control the size of the bead being dispensed.

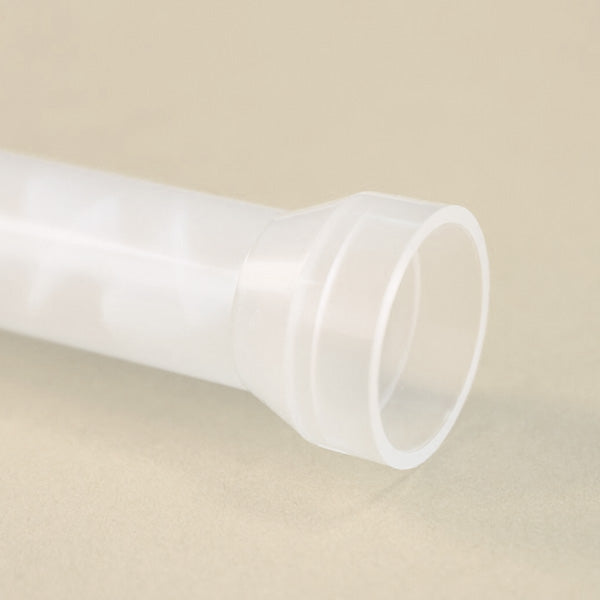

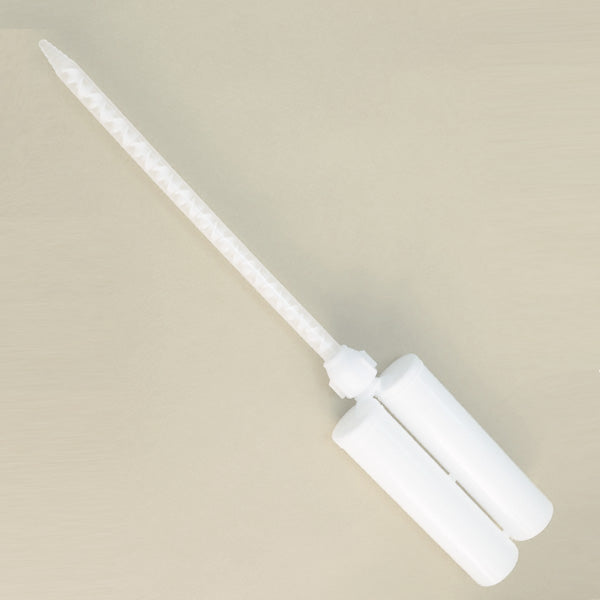

The MCH 10-18T uses a bell connector that is attached using a standard retaining nut. This mixer can be used with 200mL or 400mL cartridges or even low pressure meter mix dispensing equipment.
The Infinity Bond MCH 10-18T disposable static mixer is made to the highest quality standards right here in the USA and offers cost savings over other name brands without sacrificing performance.
- Works with 200mL or 400mL cartridges
- Works with low pressure meter mix equipment
- Bell connector
- For use with 1:1 or 2:1 adhesives
- Made in the USA
Meets or Exceeds the Performance of the Following Mixers
- Sulzer Mixpac MCH 10-18T
- Sulzer MS 10-18T
- Statomix MC 10-18
Infinity bond MCH 13-24T Static Mix Nozzle Specifications
- Casing: Polypropylene
- Element: High strength polyacetal
|Part Number||Inner Diameter (inch/mm)||Elements||Outer Diameter||Length (in/mm)||Nozzle Diameter||Tip Style||Retained Volume (in/mm)||Cartridge Size||Mix Ratio(s)|
|INFINITY MCH 10-18T||0.399/10.13||18||0.50/12.70||8.43/214.12||0.14/3.55||Stepped||11.3||200, 400, 600||1:1, 2:1|
