Sulzer MS 10-18T Static Mixer Nozzle

Sulzer MS 10-18T Static Mixing Nozzle for Meter Mix Dispense

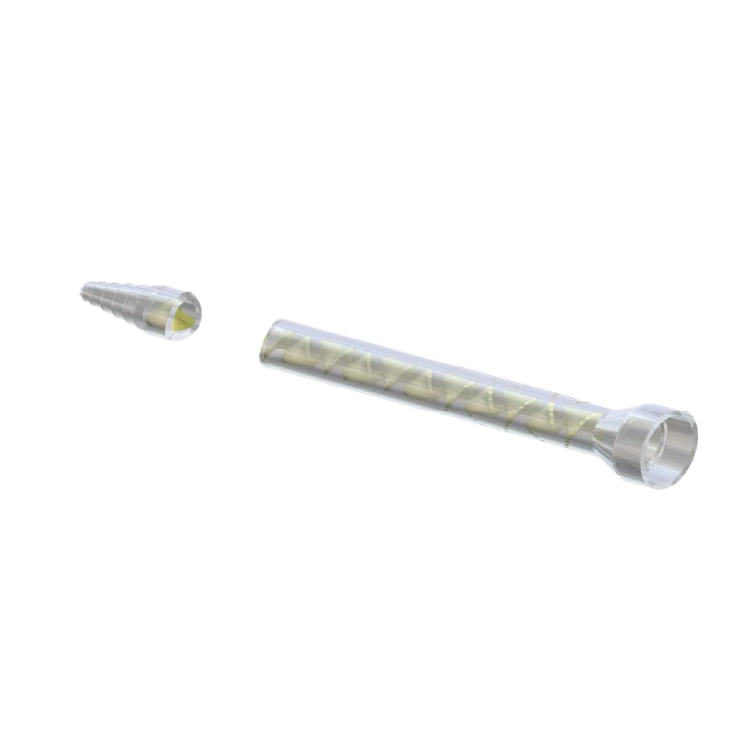

The Sulzer MS 10-18T static mixing nozzle features a Helix mixer type and a Bell connection type, designed for use with Meter Mix Dispense (MMD) equipment. This nozzle is compatible with two-component products and supports mix ratios of 1:1 and 2:1. It is suitable for cartridge sizes of 50 ml and 400 ml, consisting of 18 elements with an inner diameter of 0.657 in (16.7 mm) and a length of 8.425 in (214 mm). The stepped tip outlet style allows for precise dispensing, making it ideal for various adhesive chemistries including MMAs, epoxies, and polyurethanes. This product is categorized under mixing nozzles and is a vital tool for ensuring effective material mixing and application.

Features and Benefits of MS 10-18T Mixing Nozzles

• Precision Helix Mixing Design: Ensures thorough mixing of two-component adhesives, enhancing bond strength and consistency.
• Versatile Bell Connection: Provides secure attachment to various Meter Mix Dispense systems for ease of use and reliability.
• Optimized for Multiple Cartridge Sizes: Compatible with both 50 ml and 400 ml cartridges, making it suitable for various application needs.
• Stepped Outlet Tip: Facilitates controlled dispensing, reducing waste and ensuring accurate application.
• Durable Polyacetal Construction: Offers improved durability and chemical resistance, ideal for working with reactive adhesive formulations.

Sulzer MS 10-18T Specifications

• Series: MS
• Model: MS 10-18T
• Mixer Type: Helix
• Connection Type: Bell
• System: Meter Mix Dispense Equipment
• Compatible With: Two-Component Products with Meter Mix Dispense (MMD) Equipment
• Number of Elements: 18
• Inner Diameter: 0.657 in / 16.7 mm
• Length: 8.425 in / 214 mm
• Waste Volume: 12.3 ml
• Outlet Tip: Stepped Tip
• Color: Yellow
• Element Material: Polyacetal (POM)
• Housing Material: Polypropylene (PP)
