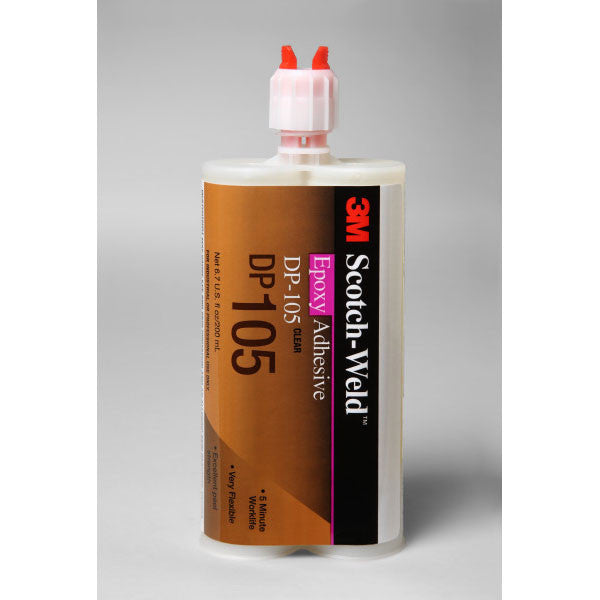

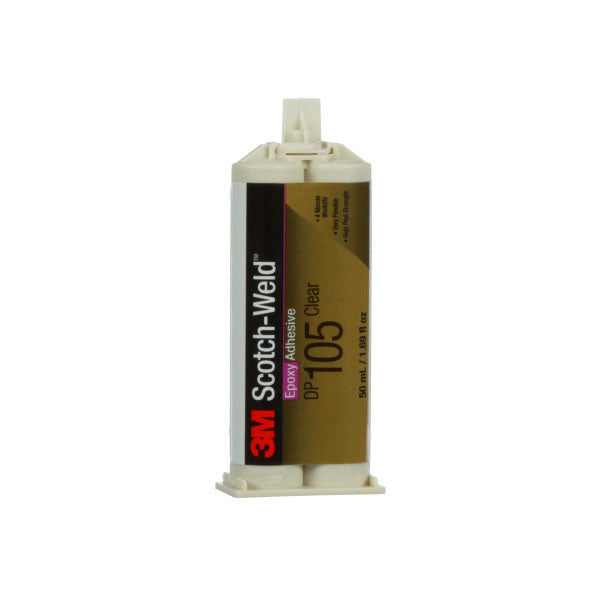

3M DP105 Epoxy for Clear and Flexible Bonds

Product Highlights

Adhesive Type:
  • Epoxy
Brand:
  • 3M
By Connection Type:
  • Bayonet
  • Bell
Cartridge Ratio:
  • 1:1
Cartridge Size:
  • 200mL
  • 50mL
Color:
  • Clear

Bonds To
Icon
Metal
Icon
Wood
Icon
Plastic
Icon
General Purpose

Properties
Icon
Set Time: Medium
Icon
Flexible
SKU: 3M 021200-87203-7
$273.00
Buying in bulk? Request a volume quote.

Request a volume quote

3M DP105 Epoxy for Clear and Flexible Bonds

3M DP105 Epoxy Overview

The 3M DP105 epoxy is a clear, fast setting structural adhesive. What sets the DP105 aside from the rest of the 3M DP Epoxy series is that it is clear AND flexible.

Quick Specs

  • 4 minute work life
  • High peel strength
  • Flexible • 1:1 mix ratio
  • Clear

Additional Information

The flexibility of the DP105 is the key here and valuable when bonding different types of substrates together. When different substrates heat and cool (wood and metal for example) they will expand and shrink differently. A rigid epoxy will not be able to stretch with these differing expansions/contractions and the bond will be compromised.

The 3M DP105 offers a flexible bond so when the surfaces begin to pull away from each other, the adhesive can stretch and the bond remains in tact.

3M DP105 Bond Characteristics

Aside from being clear and flexible, the DP105 is a 1:1 adhesive with a 4 minute work life. Handling strength is reached in 20 minutes but full cure is not reached for up to 48 hours.


Specifications »

3M DP 105 Clear Two Part Epoxy Adhesive Specifications

Product

Scotch-Weld DP-105 Clear

Base Resins

Epoxy/Mercaptan

Color

Base (B) Accelerator (A)

Clear Clear

Net Weight (Lbs./Gallon)

Base (B) Accelerator (A)

9.1 - 9.5

9.4 - 9.8

Viscosity1, Approximate

@ 80°F (27°C)

Base (B) Accelerator (A)

1,000 - 5,000 cps

8,000 - 16,000 cps

Mix Ratio (B:A)

By Volume By Weight

1:1

1:0.97

Worklife2

@ 73°F (23°C)

2 gram

20 gram

5 minutes

4 minutes


3M Accessories »

3M DP105 Two Part Epoxy Adhesive Data Sheets

Technical Data Sheet

Safety Data Sheet
