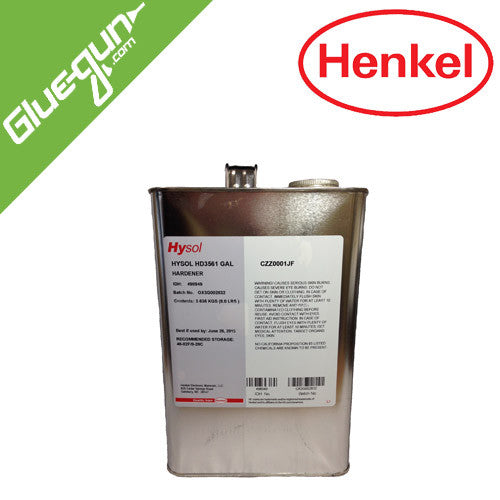

Henkel Hysol HD3561 Epoxy Hardener
Product Highlights
- Type: Epoxy
- Brand: Henkel Loctite
OVERVIEW
Description
Henkel Hysol HD3561 Hardener is used in a number of two part epoxy systems that can be mixed to create different bonding and potting properties. Below are a list of the compatible resins that can be paired with the Hysol HD3561.
Contact us for current stock, lead times and minimum orders.
Compatible Resins:
- EE1068 (EE1067)
- EE1087
- EE4183
- RE2039
HD3561 & EE1068 (EE1067)
- Black flame-out casting systems
- Meets UL flammability requirements for 94V-0
HD3561 & EE1087
- High thermally conductive black casting systems
- For applications requiring heat dissipation or transfer
- For higher temperature applications use Hysol HD0243 Hardener
HD3561 & RE2039/EE4183
- Undiluted casting system
- Low viscosity
- Exceptional impact & shock resistence
- Common applications include clear castings, coils, capacitors, modules, solid state relays
- *EE4183 offers low shirkage, lower coefficient of expansion and improved thermal properties
**Depending on stock, there may be a 6-8 week lead time on this product.**
SPECS
Henkel Loctite HD3561 Hardener Specifications
| Resin | Hardener | Pot Life 200 Gram Mass @ 25°C |
Viscosity Centipoise
CPS @ 25°C |
Recommended Cure
|
Mix Ratio (By Weight)
|
|
EE1068 |
HD3561 | 2 hrs. |
1,000
|
3 hrs. @ 60°C
or 48 hrs. @ RT
|
100/15
|
| EE1087 | HD3561 | 30 min. |
8,000
|
24 hrs. @ RT
or
2 hrs. @ 60°C
|
100/7
|
| RE2039 EE4183 |
HD3561 |
35 min.
80 min.
|
600
10,000
|
24 hrs. @ RT or
3 hrs. @ 60°C
|
100/30
100/15
|
