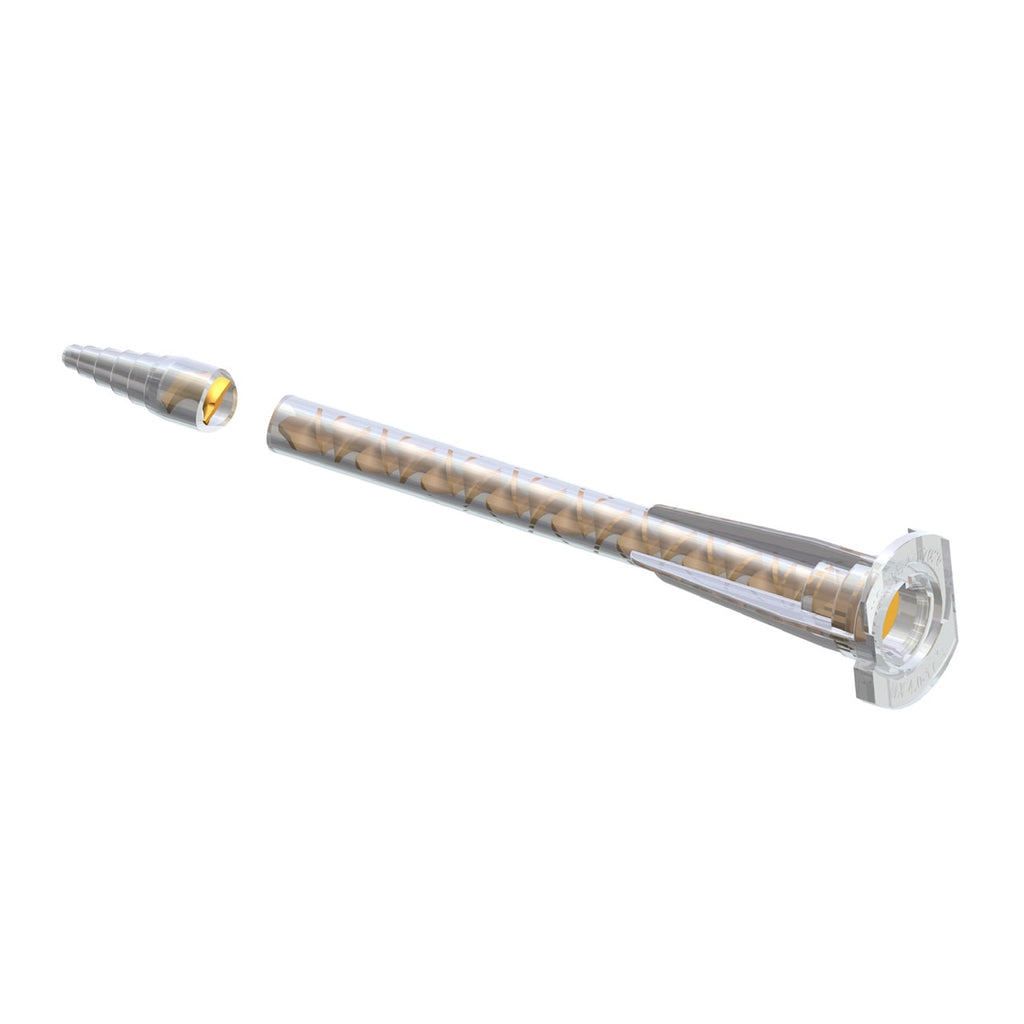

Single Sulzer MAHX 05-17T static mixer nozzle with 17 elements, A System connection, stepped tip
Roll over image to zoom in Click on image to zoom
Single Sulzer MAHX 05-17T static mixer nozzle with 17 elements, A System connection, stepped tip

Sulzer MAHX 05-17T Static Mixer Nozzle

SKU: SULZER MAHX 05-17T (4000)

Manufacturer Part #: 102536

Price:
$2,277.00
($0.56/each)
2 product options available.

Product Highlights

  • Type: Static Mixer
  • Brand: Sulzer
  • Elements: 17
  • Length: 4.071 in / 103.4 mm
  • Tip Style: Stepped Tip
  • Cartridge Size: 50 ml, 75 ml
  • Sulzer System: A System
  • Connection Type: Bayonet

Sulzer MAHX 05-17T Static Mixing Nozzle for 4:1/10:1 Cartridges

The Sulzer MAHX 05-17T static mixing nozzle features a Helix mixer type and a Bayonet (Twist and Lock) connection, designed to work seamlessly with the MIXPAC™ A System. This nozzle supports 4:1 and 10:1 mix ratios for 50/75 ml cartridges, providing excellent mixing performance with its 17 elements. With an inner diameter of 0.213 in (5.4 mm) and a length of 4.071 in (103.4 mm), it features a stepped outlet tip suitable for various adhesive chemistries including epoxies and polyurethanes. The nozzle is constructed from durable polypropylene (PP) and comes in an eye-catching orange color, making it a reliable choice for your mixing needs.

MAHX 05-17T Features and Benefits

  • Reliable Bayonet Connection: Ensures secure attachment to MIXPAC™ A System cartridges for quick and efficient setup.
  • Optimized Helix Mixing Action: Delivers superior mixing performance for two-part adhesives including MMAs and epoxies.
  • Versatile Compatibility: Designed for 4:1 and 10:1 mix ratios, compatible with 50/75 ml cartridges for diverse applications.
  • Precise Mixing Dimensions: Inner diameter of 0.213 in (5.4 mm) and length of 4.071 in (103.4 mm) ensures optimal flow and consistency.
  • Efficient Waste Reduction: Features a waste volume of only 1.68 ml, minimizing material waste during application.

Sulzer MAHX 05-17T Specifications

  • Series: MAHX
  • Model: MAHX 05-17T
  • Mixer Type: Helix
  • Connection Type: Bayonet (Twist and Lock)
  • System: MIXPAC™ A System
  • Compatible With: 4:1/10:1 50/75 ml Cartridges
  • Number of Elements: 17
  • Inner Diameter: 0.213 in / 5.4 mm
  • Length: 4.071 in / 103.4 mm
  • Waste Volume: 1.68 ml
  • Outlet Tip: Stepped Tip
  • Color: Orange
  • Element Material: Polypropylene (PP)
  • Housing Material: Polypropylene (PP)
  • Units/Box: 4000

Questions about Sulzer MAHX 05-17T? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Sulzer MAHX Mixers

The Sulzer MAHX Series is a bayonet-style static mixer for 50 mL 4:1 and 10:1 cartridges. It features 17 elements and tapered or stepped tip options.

View all Sulzer MAHX Mixers

Sulzer Part # Name Elements Length Tip Style
102535 Sulzer MAHX 04-17S 173.213 in / 81.6 mmTapered
102536 Sulzer MAHX 05-17T 174.071 in / 103.4 mmStepped Tip
