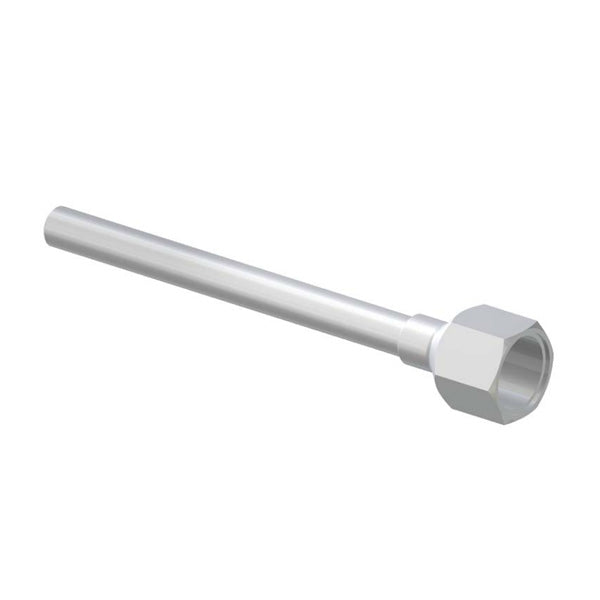

Sulzer Mixpac SH 13-44-14 Combo Bell Mixer Metal Safety Shroud (14 UNC)
About the Sulzer Mixpac SH 13-44-14 Static Mixer Metal Safety Shroud
The Sulzer Mixpac SH 13-44-14 is an aluminum alloy, anodized finished metal shroud for use with the Sulzer Mixpac ME 1312-1032 or the MS 1312-1032 combo bell mixers. It attaches with a 7/8" thread and a 14 UNC coarse size.
Why Use Safety Shrouds with Static Mixers?
Safety shrouds should be used when dispensing two part adhesives through a static mixer from meter mix equipment. Meter mix equipment can create high pressure situations that can cause a static mixer to expand or even burst. Safety shrouds not only make dispensing with meter mix equipment safer, they insure the mixer does not expand causing adhesive to go around the mixing elements instead of through them. This insures optimal mixing and dispensing of your two part material.
Sulzer Mixpac SH 13-44-14 Specifications
- Part Number: 114346 or SH 13-44-14
- Inner Diameter (mm): 17.2/14.2
- Outer Diameter (mm): 23/19
- Length (mm): 503
- Thread: 7/8" - 14 UNC
- Manufacturers Description: shroud for MS Combo Mixer, aluminum alloy, anodized finish, nut across flats 27.0 mm (1 1/16"), optional fitting 7/8" - 14 UNC thread.
