Sulzer Mixpac Statomix ME Series Combo Bell Mixer Nozzle
About the Sulzer Mixpac ME Combo Bell Mixer Nozzle

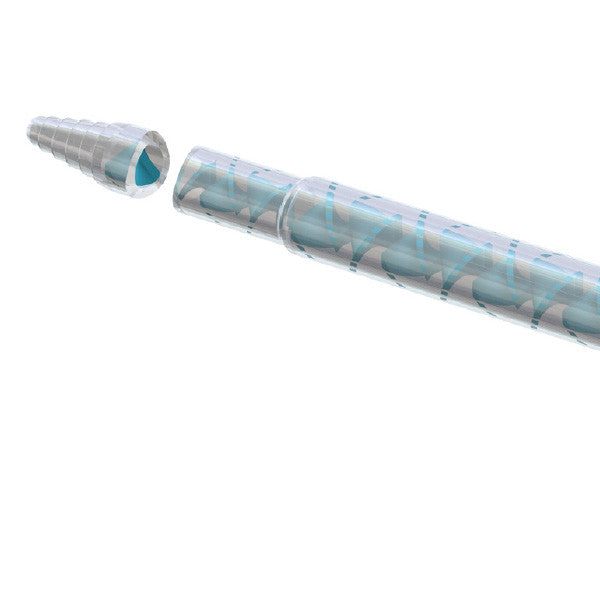

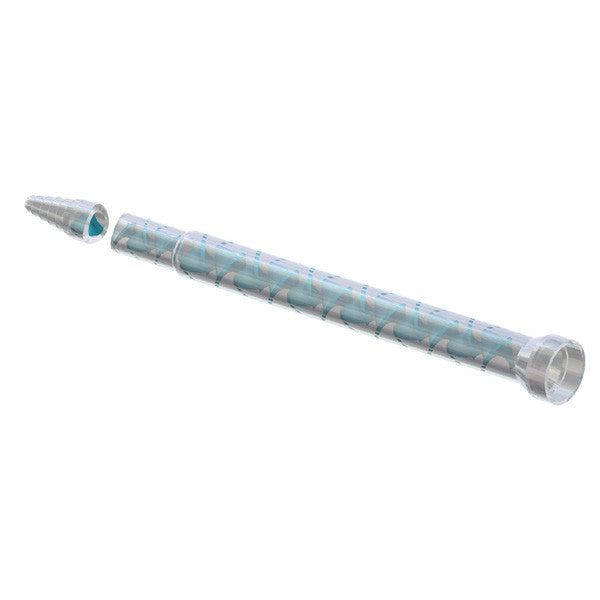

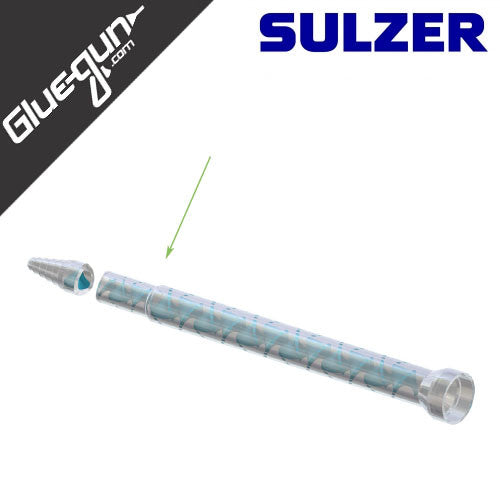

The Sulzer ME Series plastic disposable combo bell mixer is often used with meter mix equipment to dispense two part adhesives. The Combo Bell mixer is unique from the standard ME mixer in its step down design where the mixer changes volume towards the end of the nozzle.
These mixers are available with a wide variety of mixing elements and element diameters. Contact us for bulk pricing or discuss any questions you have about static mix dispensing.
Note: The difference between the ME and MS Series static mixers is the inner diameter of the bell mouth housing. The ME Series is equal to 15.9mm and the MS Series is equal to 16.7mm.
Sulzer Mixpac ME Combo Bell Mixer Nozzle Specification
Elements: Polyacetal (POM)
Housing: Polypropylene (PP)
|Inner Dia. I.D. (mm)||Outer Dia. O.D. (mm)||Outlet Dia. d(mm)||L (mm)||Elements||Part/Number|
|10/8||14/12||2.4||409||12 +32||ME or MS 1012-0832|
|13/10||17/14||7.2||499||12 +32||ME or MS 1312-1032|
