Sulzer Mixpac MAHX (MX) Static Mixer Nozzles

SKU: SULZER MAHX 04-17S or 102535

Manufacturer Part #: 102535

Sale price$3,388.00
⚠️ Limited supply.

Product Highlights

  • Type: Static Mixer
  • Brand: Sulzer Mixpac
  • Connection Type: Bayonet
  • Adhesive Ratio: 4:1, 10:1
  • Cartridge Size: 50 ml, 25 ml, 75 ml
  • Viscosity: Low, Medium, High
  • Sulzer System: A System, Q System

About the Sulzer Mixpac MAHX Static Mixer Nozzle

The Sulzer Statomix MAHX (formerly MX Series) is a bayonet style mixer with a twist and lock mount for 4:1 and 10:1 ratio dispensing. Locking the MAHX mixer into place automatically aligns the first element when using the Sulzer A System Kit.

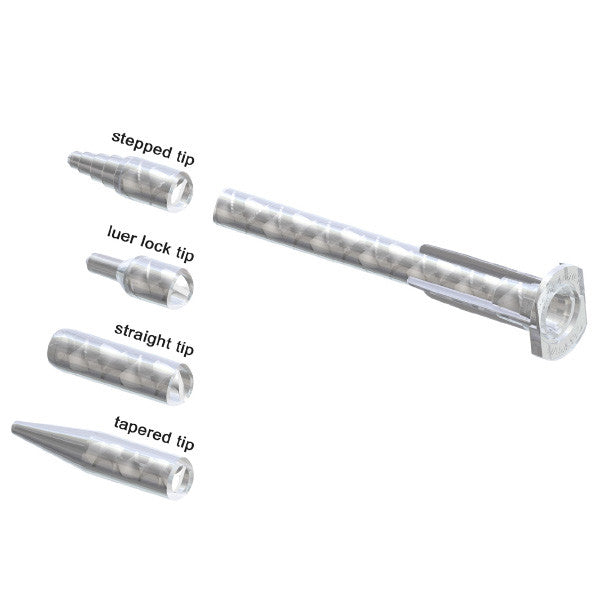

The MAHX mixer uses 17 elements and a tapered or stepped tip option to mix almost any two part material including silicone, epoxy, urethane, acrylic or polyester. Aside from manual application, the MAHX mixers can also be used in low pressure meter mix dispensing.

MAHX Nozzles available in 1/2 case and full case quantities.

Note: See the MAH Series for 1:1 and 2:1 dispensing. has a low price guarantee on the Sulzer MAHX Mixers.

Sulzer Mixpac MAHX Static Mixer Nozzle Specifications

Elements: Polypropylene(PP)

Housing: Polypropylene (PP)

Sulzer MAHX Specifications & Part Numbers

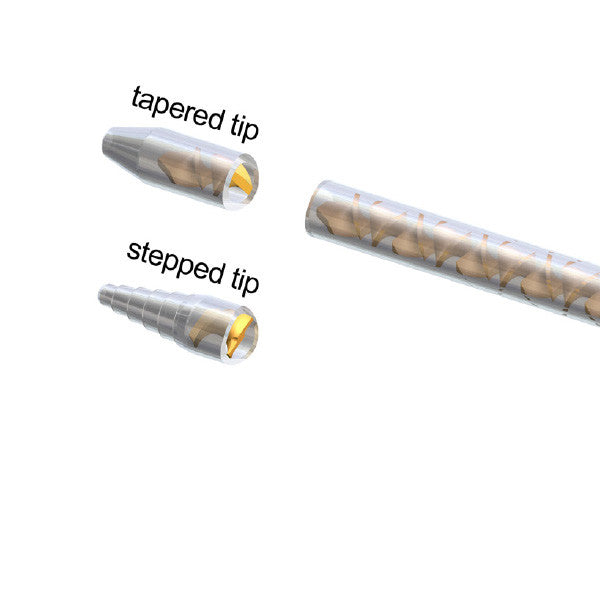

Mixer helix, 4:1/10:1 with orange elements and tapered or stepped tip

Part number Article/Number Elements Ø(mm) L(mm) Vol. (ml)
102535 MAHX 04-17S 17 4 81.6 0.75
102536 MAHX 05-17T 17 5.4 103.4 1.68

Sulzer Mixpac MAHX Mix Nozzle Data Sheets
