Single Sulzer MKHX 02-16S static mixer nozzle with 16 elements, K System connection, tapered
Roll over image to zoom in Click on image to zoom
Single Sulzer MKHX 02-16S static mixer nozzle with 16 elements, K System connection, tapered

Sulzer MKHX 02-16S Static Mixer Nozzle

SKU: SULZER MKHX 02-16S (7000)

Manufacturer Part #: 114257

8 product options available.

Product Highlights

  • Type: Static Mixer
  • Brand: Sulzer
  • Connection Type: Sulzer K Series
  • Tip Style: Tapered
  • Adhesive Ratio: 4:1, 10:1
  • Cartridge Size: 2.5 ml, 5 ml, 10 ml
  • Sulzer System: K System

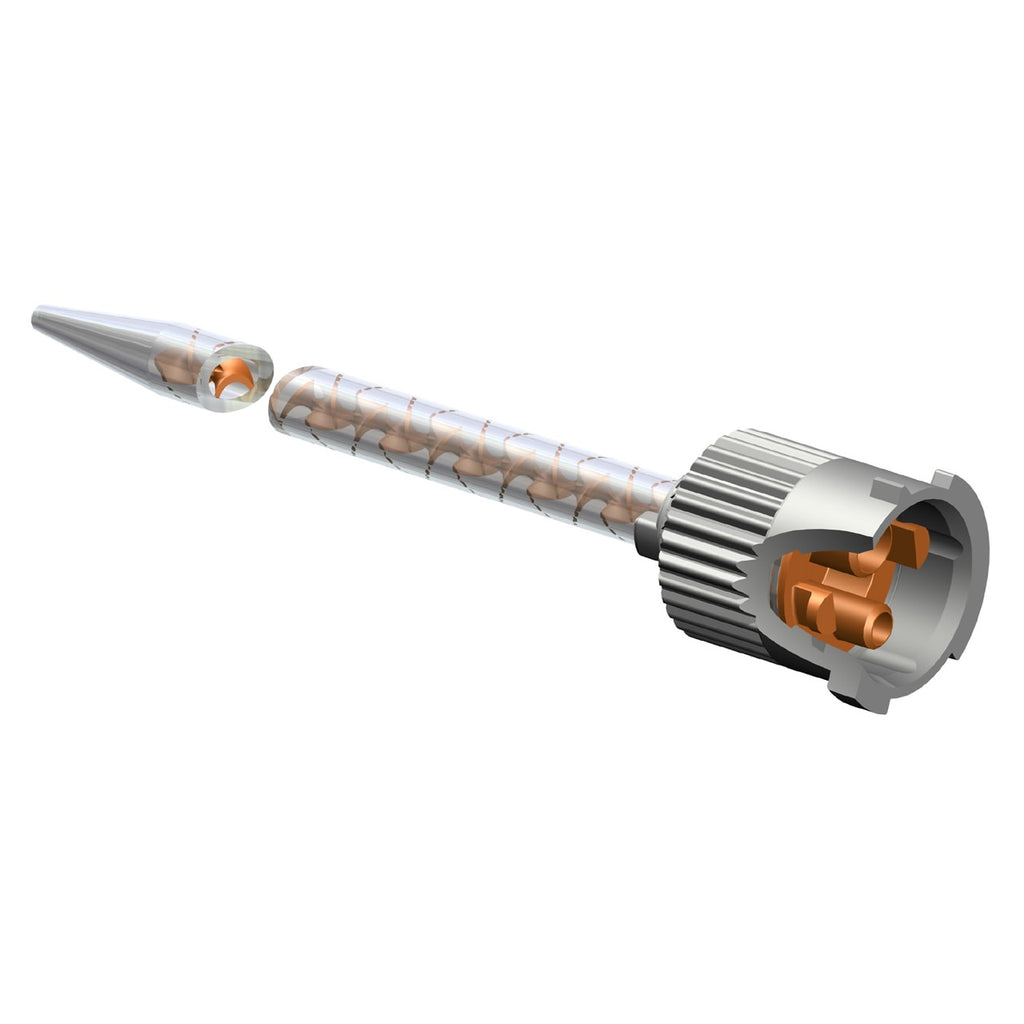

Sulzer MKHX 02-16S Static Mixing Nozzle for MIXPAC™ K System

The Sulzer MKHX 02-16S static mixing nozzle features a Helix mixer type and a K Series connection, designed for compatibility with the MIXPAC™ K System. This nozzle supports mix ratios of 4:1 and 10:1 with 2.5, 5, and 10 ml cartridges. With 16 elements and an inner diameter of 0.098 in (2.5 mm), this nozzle measures 2.35 in (59.7 mm) in length and includes a tapered tip outlet. Ideal for use with various adhesive chemistries, including epoxies and polyurethanes, this static mixing nozzle is a reliable choice for precise mixing applications.

Key Features of MKHX 02-16S

  • Helix Mixer Design: Provides thorough and consistent mixing for optimal adhesive performance.
  • K Series Connection: Ensures a secure fit with MIXPAC™ K System cartridges for efficient operation.
  • Versatile Mix Ratio Support: Compatible with 4:1 and 10:1 mix ratios, enhancing flexibility in various applications.
  • Tapered Outlet Tip: Facilitates precise application, making it suitable for a range of projects.
  • Inner Diameter and Length: Features a 0.098 in (2.5 mm) inner diameter and 2.35 in (59.7 mm) length for effective mixing.

Sulzer MKHX 02-16S Specifications

  • Series: MKHX
  • Model: MKHX 02-16S
  • Mixer Type: Helix
  • Connection Type: K Series
  • System: MIXPAC™ K System
  • Compatible With: 4:1/10:1 2.5/5/10 ml Cartridges
  • Number of Elements: 16
  • Inner Diameter: 0.098 in / 2.5 mm
  • Length: 2.35 in / 59.7 mm
  • Waste Volume: 0.27 ml
  • Outlet Tip: Tapered Tip
  • Color: Orange
  • Units/Box: 7000

Questions about Sulzer MKHX 02-16S? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Sulzer MKHX Mixers

The Sulzer MKHX Series features interlock-style static mixers designed specifically for 10ml dual plastic syringes with 10:1 mix ratios only. These nozzles provide precise dispensing for small-volume, high-ratio applications and are compatible with various adhesive and sealant formulations.

View all Sulzer MKHX Mixers

Sulzer Part # Name Elements Length Tip Style
114260 Sulzer MKHX 02-08D 81.425 in / 36.2 mmStraight
114255 Sulzer MKHX 02-08S 81.563 in / 39.7 mmTapered
114261 Sulzer MKHX 02-12D 121.819 in / 46.2 mmStraight
114256 Sulzer MKHX 02-12S 121.957 in / 49.7 mmTapered
114257 Sulzer MKHX 02-16S 162.35 in / 59.7 mmTapered
114262 Sulzer MKHX 03-12D 122.205 in / 56 mmStraight
114258 Sulzer MKHX 03-12S 122.402 in / 61 mmTapered
114259 Sulzer MKHX 03-16S 162.913 in / 74 mmTapered
