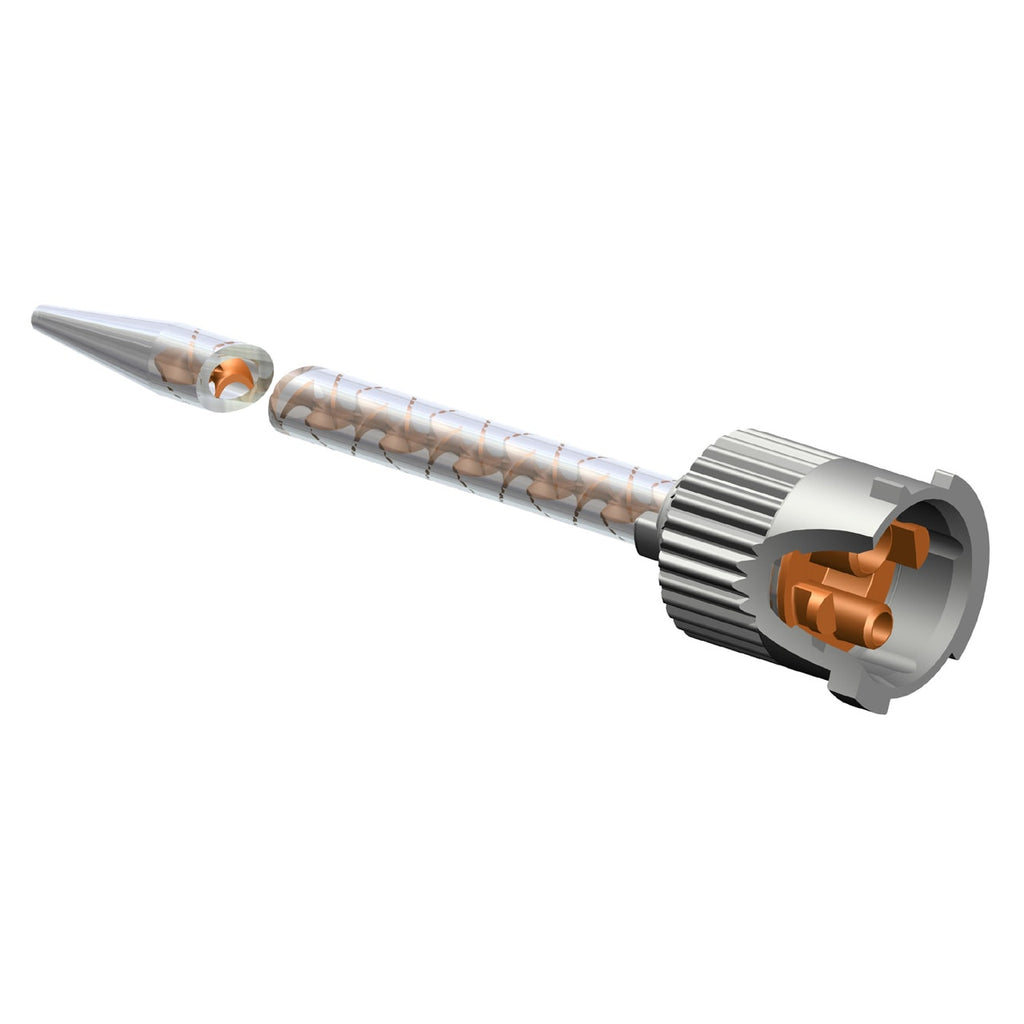

Single Sulzer MKHX 02-08S static mixer nozzle with 8 elements, K System connection, tapered
Roll over image to zoom in Click on image to zoom
Single Sulzer MKHX 02-08S static mixer nozzle with 8 elements, K System connection, tapered

Sulzer MKHX 02-08S Static Mixer Nozzle

SKU: SULZER MKHX 02-08S (9000)

Manufacturer Part #: 114255

8 product options available.

Product Highlights

  • Type: Static Mixer
  • Brand: Sulzer
  • Connection Type: Sulzer K Series
  • Tip Style: Tapered
  • Adhesive Ratio: 4:1, 10:1
  • Cartridge Size: 2.5 ml, 5 ml, 10 ml
  • Sulzer System: K System

Sulzer MKHX 02-08S Static Mixer Nozzle - Helix Design for 4:1/10:1 Mix Ratios

The Sulzer MKHX 02-08S static mixer nozzle features a Helix mixer type and a K Series connection type, designed for compatibility with the MIXPAC™ K System. It supports mix ratios of 4:1 and 10:1 and is compatible with 2.5 ml, 5 ml, and 10 ml cartridges. This nozzle contains 8 elements, with an inner diameter of 0.098 in (2.5 mm) and a length of 1.563 in (39.7 mm). The tapered outlet tip ensures efficient mixing and application, making it suitable for various adhesive chemistries, including epoxies and polyurethanes. Ideal for professionals requiring reliable mixing nozzles in their applications.

Key Features of MKHX 02-08S

  • Efficient Helix Design: Provides superior mixing performance for consistent results in adhesive applications.
  • K Series Connection: Ensures a secure fit with MIXPAC™ K System cartridges for quick and easy setup.
  • Versatile Mix Ratio Compatibility: Supports both 4:1 and 10:1 mix ratios, accommodating a range of adhesive formulations.
  • Optimal Dimensions: With an inner diameter of 0.098 in (2.5 mm) and a length of 1.563 in (39.7 mm), this nozzle is designed for precision mixing.
  • Tapered Outlet Tip: Allows for controlled dispensing and application of mixed adhesives, enhancing user efficiency.

Sulzer MKHX 02-08S Specifications

  • Series: MKHX
  • Model: MKHX 02-08S
  • Mixer Type: Helix
  • Connection Type: K Series
  • System: MIXPAC™ K System
  • Compatible With: 4:1/10:1 2.5/5/10 ml Cartridges
  • Number of Elements: 8
  • Inner Diameter: 0.098 in / 2.5 mm
  • Length: 1.563 in / 39.7 mm
  • Waste Volume: 0.19 ml
  • Outlet Tip: Tapered Tip
  • Color: Orange
  • Units/Box: 9000

Questions about Sulzer MKHX 02-08S? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Sulzer MKHX Mixers

The Sulzer MKHX Series features interlock-style static mixers designed specifically for 10ml dual plastic syringes with 10:1 mix ratios only. These nozzles provide precise dispensing for small-volume, high-ratio applications and are compatible with various adhesive and sealant formulations.

View all Sulzer MKHX Mixers

Sulzer Part # Name Elements Length Tip Style
114260 Sulzer MKHX 02-08D 81.425 in / 36.2 mmStraight
114255 Sulzer MKHX 02-08S 81.563 in / 39.7 mmTapered
114261 Sulzer MKHX 02-12D 121.819 in / 46.2 mmStraight
114256 Sulzer MKHX 02-12S 121.957 in / 49.7 mmTapered
114257 Sulzer MKHX 02-16S 162.35 in / 59.7 mmTapered
114262 Sulzer MKHX 03-12D 122.205 in / 56 mmStraight
114258 Sulzer MKHX 03-12S 122.402 in / 61 mmTapered
114259 Sulzer MKHX 03-16S 162.913 in / 74 mmTapered

Authorized Distributor

Gluegun.com is an authorized distributor of Sulzer Mixpac adhesive dispensing and mixing equipment, including cartridge systems, cartridge guns, and mixing nozzles.

View all Sulzer products
