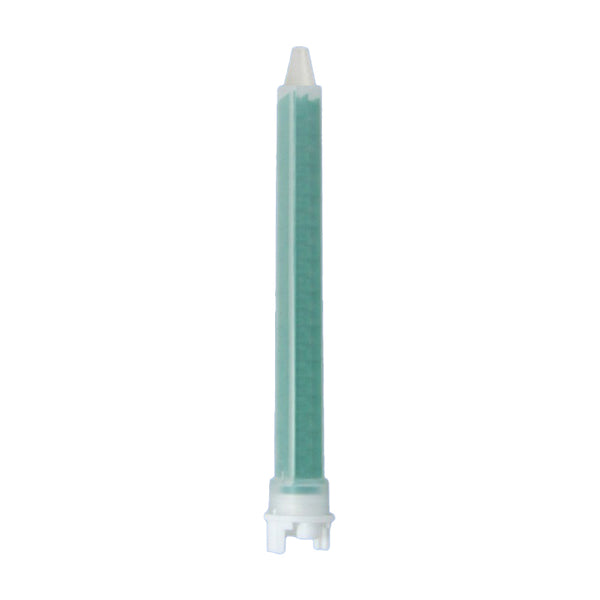

Infinity Bond MFQ-10-24T Static Mixer Nozzle – Green Quadro body with stepped tip, designed for 200ml and 400ml F System cartridges.

Roll over image to zoom in Click on image to zoom

Infinity Bond MFQ-10-24T Static Mixer Nozzle for F System Cartridges

SKU: INF MIX MFQ-10-24T (100)

Manufacturer Part #: MFQ-10-24T

Choose Quantity: Pack of 100

Variant

Price:

$194.00

Quantity:

Type: Static Mixer
Brand: Infinity Bond
Mixer Type: Square Mixer
Adhesive Ratio: 1:1, 2:1
Cartridge Size: 200 ml, 400 ml, 600 ml
Sulzer System: F System
Application: Bonding and Sealing

High-Performance Quadro Static Mixer for F System Cartridges Overview

The Infinity Bond MFQ-10-24T is a high-performance static mixer designed for 200ml, 400ml, and 600ml F System cartridges with 1:1 or 2:1 ratios. This square-body Quadro mixer features a dual-hole cap inlet and a stepped nozzle outlet, providing superior mixing with minimal waste. Constructed of durable, silicone-free polypropylene, it's ideal for use with epoxies, polyurethanes, and other two-component adhesives across a wide range of industries.

MFQ-10-24T Features and Benefits

F-System Compatibility: Engineered for use with 200ml, 400ml and 600ml F System cartridges in 1:1 and 2:1 ratios
Quadro Mixing Technology: Square-body design ensures superior mix quality and performance
Clean Dispensing: Stepped outlet provides smooth, controlled application of mixed material
Minimized Cross-Contamination: Dual-hole cap inlet keeps A/B components separate until mixing
Industrial-Grade Construction: Made from durable, silicone-free polypropylene for demanding environments
Ready-to-Use Packaging: Supplied in sealed packs to maintain cleanliness and avoid contamination

Specifications

Brand: Infinity Bond
Series: MFQ-10-24T
Material: Polypropylene
Inner Diameter: 10.7mm
Orifice Hole Size: 3.0mm
Length: 181mm
Volume in Nozzle: 14.75ml
Elements: 24
Color: Green
System Compatibility: F System 200/400/600ml Cartridges
Quantity: Pack of 100
