Infinity Bond MS 05-24T Static Mixer Nozzle for C-System Connections
Product Highlights
- Type: Static Mixer
- Brand: Infinity Bond
- Elements: 24
- Length: 5.87 in / 149 mm
- Tip Style: Stepped Tip
- Cartridge Size: 200 ml, 400 ml, 600 ml, Meter Mix Machine
- Sulzer System: C System
- Connection Type: Bell
Infinity Bond MS 05-24T Bell Connection Mixer Tip for Two-Part Adhesives

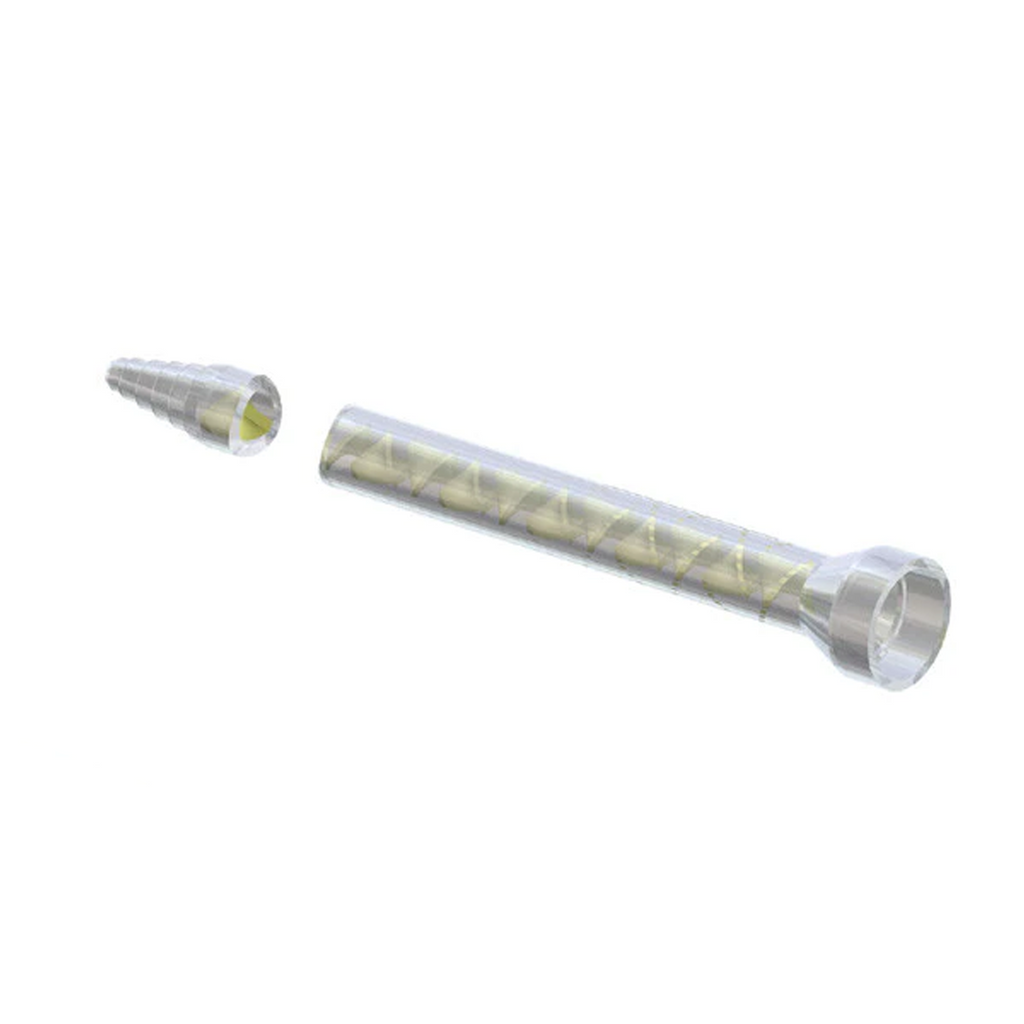

The Infinity Bond MS 05-24T static mixer features a helix design with 24 mixing elements, a 0.197 in (5.00 mm) inner diameter, and a 5.87 in (149 mm) overall length. This nozzle uses a standard bell connection for compatibility with C-System cartridges and Meter Mix Dispense (MMD) equipment, and includes a stepped tip for clean, adjustable adhesive flow. Ideal for dispensing two-part adhesives in 1:1 and 2:1 mix ratios, the MS 05-24T is well-suited for MMAs, silicones, polyurethanes, and epoxies. This model is a compatible alternative to the Sulzer MS 05-24T static mixer nozzle.
MS 05-24T Mixer Tips Performance Benefits
- Helical Mixing Efficiency: 24 internal elements ensure consistent, thorough blending of two-part adhesives.
- Compact Flow Channel: Inner diameter of 0.197 in (5.00 mm) balances precision and throughput.
- Stepped Tip Design: 0.059 in (1.50 mm) outlet allows for clean, controlled dispensing with adjustable bead size.
- Reliable Bell Connection: Compatible with standard C-System cartridges and MMD systems for secure, tool-free installation.
- Built for High-Pressure Dispensing: Designed for applications requiring up to 2.3 ml content volume and stable flow.
- Supports 1:1 and 2:1 Adhesives: Ideal for MMAs, polyurethanes, silicones, and epoxies across multiple use cases.
MS 05-24T Technical Specifications
- Part Number: MS 05-24T
- Mixer Type: Helix
- Connection Type: Bell (C-System)
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 24
- Inner Diameter: 0.197 in / 5.00 mm
- Outer Diameter: 0.315 in / 8.00 mm
- Length: 5.87 in / 149 mm
- Outlet Orifice Diameter: 0.059 in / 1.50 mm
- Approx. Retained Volume: 2.3 ml
- System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)
Compatible Alternatives for MS 05-24T Machine Mixer Tips
