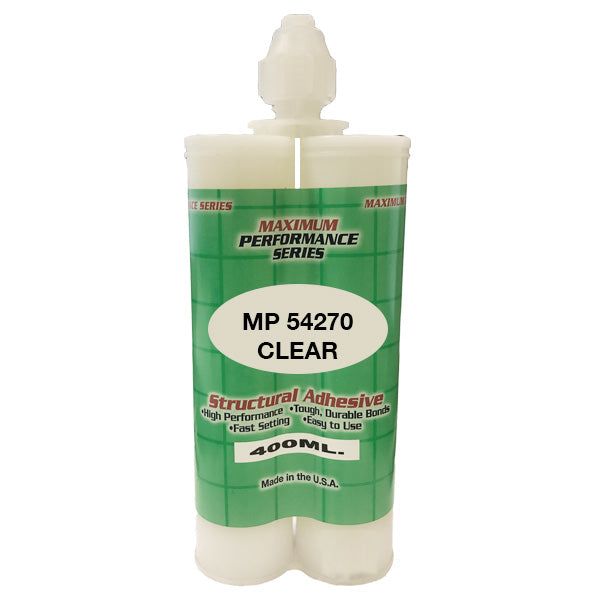

ASI MP 54270 Clear Electrical Potting Epoxy

SKU: ASI 5470-5

Manufacturer Part #: MP5470-5

Sale price$250.00

based on your application.

⚠️ Limited supply.

Product Highlights

About the ASI MP 54270 Clear Potting Epoxy

The Adhesive Systems Inc ASI MP 54270 is a clear epoxy compound for potting and encapsulating applications. This clear potting epoxy has a 60 minute work life and a viscosity of 20,000 cps.

The MP 54270 is an excellent choice for small to medium sized castings and gives great moisture and chemical resistance. It is also non-corrosive so the MP 54270 is a great option when potting or encapsulating electronic and metal components.

Dispensing the ASI MP 54270 Clear Epoxy

The ASI MP 54270 is a two part epoxy. This means the A and B sides of the adhesive do not activate until they are mixed. Typically, this adhesive is dispensed using a cartridge gun and static mixer. The cartridge gun used will depend on whether you are using the 50ml or 400ml cartridge.

Compare ASI MP 54270 To:

  • 3M PRODUCTS™ DP 270
  • HYSOL™ EPK 0151
  • LOCTITE™ E 60 NC

* The product names used in this website are for identification purposes only.
* All trademarks and registered trademarks are the property of their respective owners.

ASI MP 54270 Clear Potting Epoxy Specifications

  • Ratio: 1 to 1
  • Viscosity: 20,000
  • Color: Clear
  • Work Life: 60 Minutes
  • Shear Strength: 1,800 to 3,000 psi
  • Dielectric Strength: 550 Volts/Mils
  • Hardness Shore D: 85

Additional Information from the Manufacturer

MP54270 is a two part unfilled electronic grade epoxy encapsulant designed for small to medium sized castings. It cures quickly at room temperature to a tough, semi-rigid polymer. It has good wetting and adhesion to most surfaces and is free flowing to penetrate voids and give good air release. It has very good resistance to water, acids and bases and most organic solvents. It was formulated to a 1A:1B volume mix ratio for use in side-by-side cartridges and meter/mix dispensing equipment. MP54270 will reach full cure at room temperature within 24 hours.

ASI MP 54270 Potting Epoxy Data Sheets

ASI MP 54270 Technical Data Sheet

ASI MP 54270 Safety Data Sheet

Questions about ASI MP 54270? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Guaranteed Safe Checkout

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Compare with Similar Products

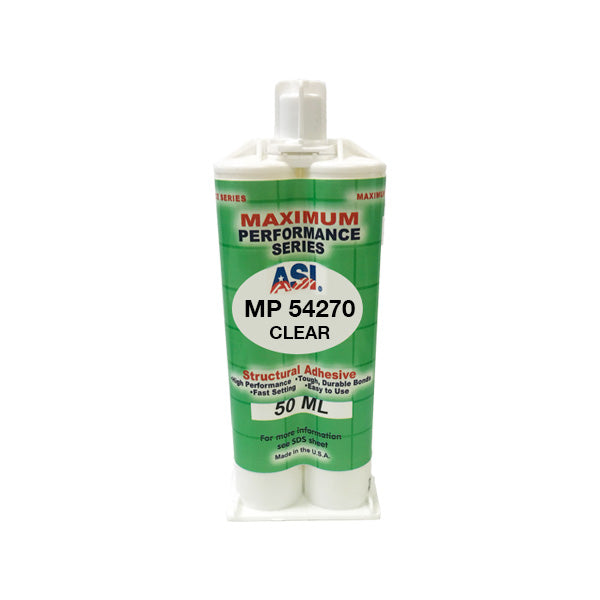

ASI MP 54270 clear potting epoxy 50ml cartridge
ASI MP 54270 Clear Electrical Potting Epoxy
Infinity Bond EP 270 Clear Electrical Potting Epoxy
Infinity Bond EP 270 Clear Electrical Potting Epoxy
Best Seller
Price $$$$$ $$$$$
Type Epoxy Epoxy
Brand Adhesive Systems, Inc. Infinity Bond
Mix Ratio 1:11:1
Viscosity 10,000 cps10,000 cps
Work Life 20 - 30 minutes20 - 30 minutes
Handling Strength -60 - 90 minutes
Full Cure 24 - 72 hours24 hours
Temp Resistance -40F to 302F-40F to 300F
Color ClearClear
Size 50ml
Shelf Life 12 months12 months

These values are approximate. Manufacturers often use different parameters for determining adhesive properties. Refer to manufacturer data sheets for detailed specifications. If you have questions, don't hesitate to contact us.
