Sulzer Mixpac Statomix ME Series Bell Mixer Nozzle - ME 08-32T

SKU: SULZER 102454 or ME 08-32T

Manufacturer Part #: 102454


Price:
Sale price$2,013.00
⚠️ Limited supply.

Product Highlights

  • Type: Static Mixer
  • Brand: Sulzer Mixpac
  • Connection Type: Bell
  • Cartridge Size: Meter Mix Machine
  • Sulzer System: E System

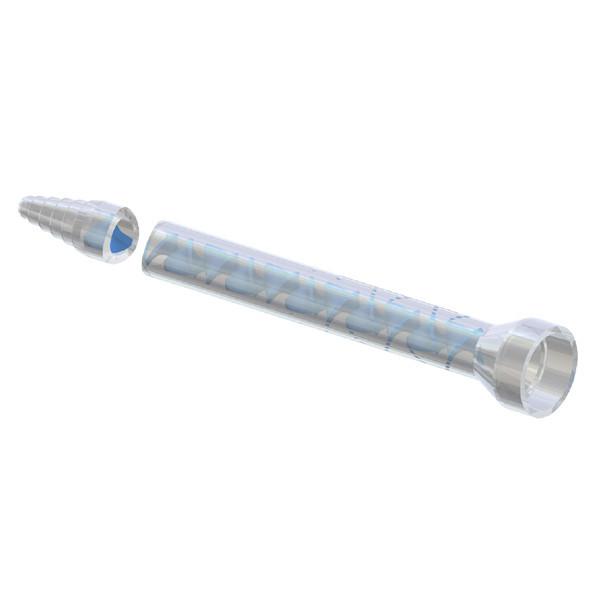

About the Sulzer Mixpac ME Series Bell Mixer Nozzle

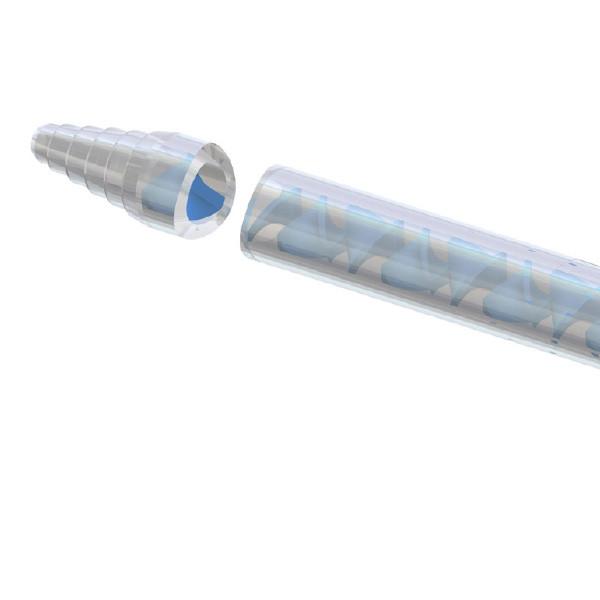

The Sulzer ME Series static mixer nozzles are a tried and true mixer for dispensing adhesive with meter mix equipment. The ME nozzle has a stepped tip which can be cut to adjust the dispensing volume and is available many different element and diameter configurations.

The ME static mixer uses a Bell connection and is one of the most popular two part machine mixers on the market today.

Contact us for bulk pricing or less than case quantities. As always, we offer a low price guarantee on the Sulzer ME static mixer.

Works With:

  • 1:1 Adhesives
  • 2:1 Adhesives
  • 4:1 Adhesives
  • 10:1 Adhesives

    Note: The difference between the ME and MS Series static mixers is the  inner diameter of the bell mouth housing. The ME Series is equal to 15.9mm and the MS Series is equal to 16.7mm.

    Sulzer Mixpac ME Bell Mixer Specifications

    Elements: Polyacetal (POM)

    Housing: Polypropylene (PP)

    Sulzer MixPac ME Series Specifications and Part Numbers

    Machine Mixer PP, with POM blue elements and stepped tip.

    Part number Article/Number Elements inner Ø(mm) outlet Ø mm L(mm) max pressure
    102448 ME 05-24T 24 5 1.5 149 33
    102449 ME 05-32T 32 5 1.5 188 33
    102450 ME 06-24T 24 6.4 1.8 186 30
    102451 ME 06-32T 32 6.4 1.8 235 30
    102452 ME 06-48T 48 6.4 2.4 334 30
    102453 ME 08-24T 24 8 2.4 223 27
    102454 ME 08-32T 32 8 2.4 289 27
    102456 ME 10-24T 24 10 3 276 22
    102457 ME 10-32T 32 10 3 355 22
    102460 ME 13-24T-02 24 13 4 350 17
    102459 ME 13-24T 24 13 4 293 17
    102462 ME 13-32T-02 32 13 4 453 17
    102461 ME 13-32T 32 13 4 378 17
