3M Scotch-Weld DP100FR Flame Retardant Epoxy Adhesive

3M Scotch-Weld DP100FR Epoxy Adhesive Overview

3M DP100FR is a two-part, fire retardant adhesive that offers fast curing and excellent rigidity. Featuring a 1:1 mix ratio, 3M DP100FR delivers strong, permanent bonds to substrates such as metals, ceramics, concrete, and wood. It is UL 94 V-O certified, meeting the stringent requirements for flame-retardant applications, and is well-suited for projects requiring a high level of fire resistance. With a work life of 4 to 8 minutes, DP100FR allows for quick adjustments and fast handling strength, making it ideal for general-purpose bonding and electrical assembly applications.

All 3M DP100 Epoxy Adhesives

• 3M Scotch-Weld DP100FR Cream Epoxy
• 3M Scotch-Weld DP100 Clear Epoxy
• 3M Scotch-Weld DP100 Plus Clear Epoxy
• 3M Scotch-Weld DP100NS Clear Epoxy

3M DP100FR Features and Benefits

• Flame Retardant: UL 94 V-O certified and passes FAA 14 CFR 25.853 60-second vertical burn test.

• Fast Cure: 4 to 8-minute work life with handling strength achieved in about 15 minutes.

• High Shear Strength: Provides permanent, rigid bonds for high static load holding.

• Non-Sag Formula: Ensures adhesive stays where applied, perfect for vertical or sloped surfaces.

• Easy Mixing: 1:1 mix ratio ensures quick and consistent application.

• Meets Safety Standards: Does not contain brominated or antimony-based flame retardants.

Specifications

• Series: 3M Scotch Weld DP100FR

• Type: Epoxy Adhesive

• Application: Structural Bonding

• Substrates: Metals, Ceramics, Concrete, Wood

• Color: Cream

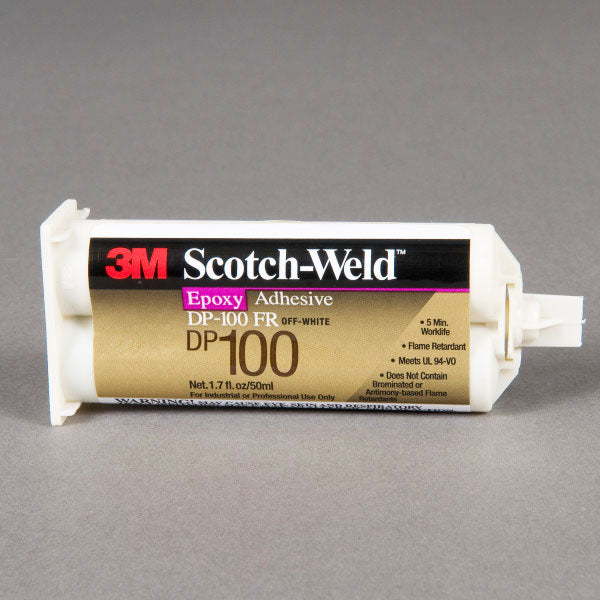

• Available Sizes: 50 mL and 200 mL

• Mix Ratio by Volume (B:A): 1:1

• Shore D Hardness: 87

• Open Time: 6 Minutes

• Worklife: (20g Mixed): 4 to 8 Minutes

• Set Time: 10 to 20 Minutes

• Certifications: UL 94 V-O

• Storage Temperature: 60°F to 80°F (16°C to 27°C)

Note: All results are based on testing at 72°F (22°C), unless stated otherwise.

Applications

DP100FR is ideal for flame retardant wire tacking, fast bonding where fire resistance is required, and applications requiring machining after bonding.
